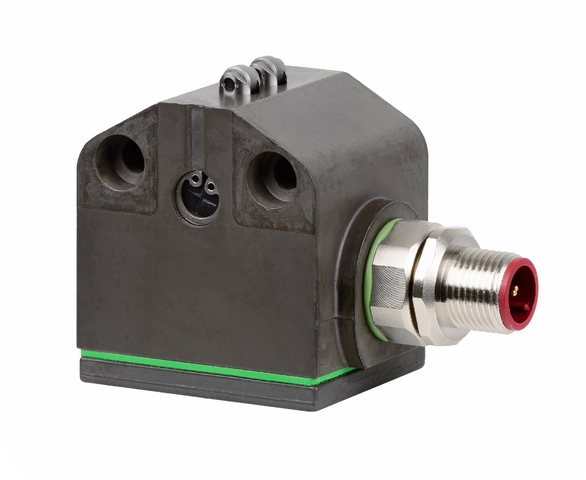

SN02R08-592-MC2445 (Order no. 128069)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

Series SN... 8 mm, mechanical

For high temperature up to +125°C
Plunger spacing 8 mm
Upright housing, with M12 plug connector

Description

Switching element

ES 592

Snap-action switching contact 1 changeover contact standard switching element

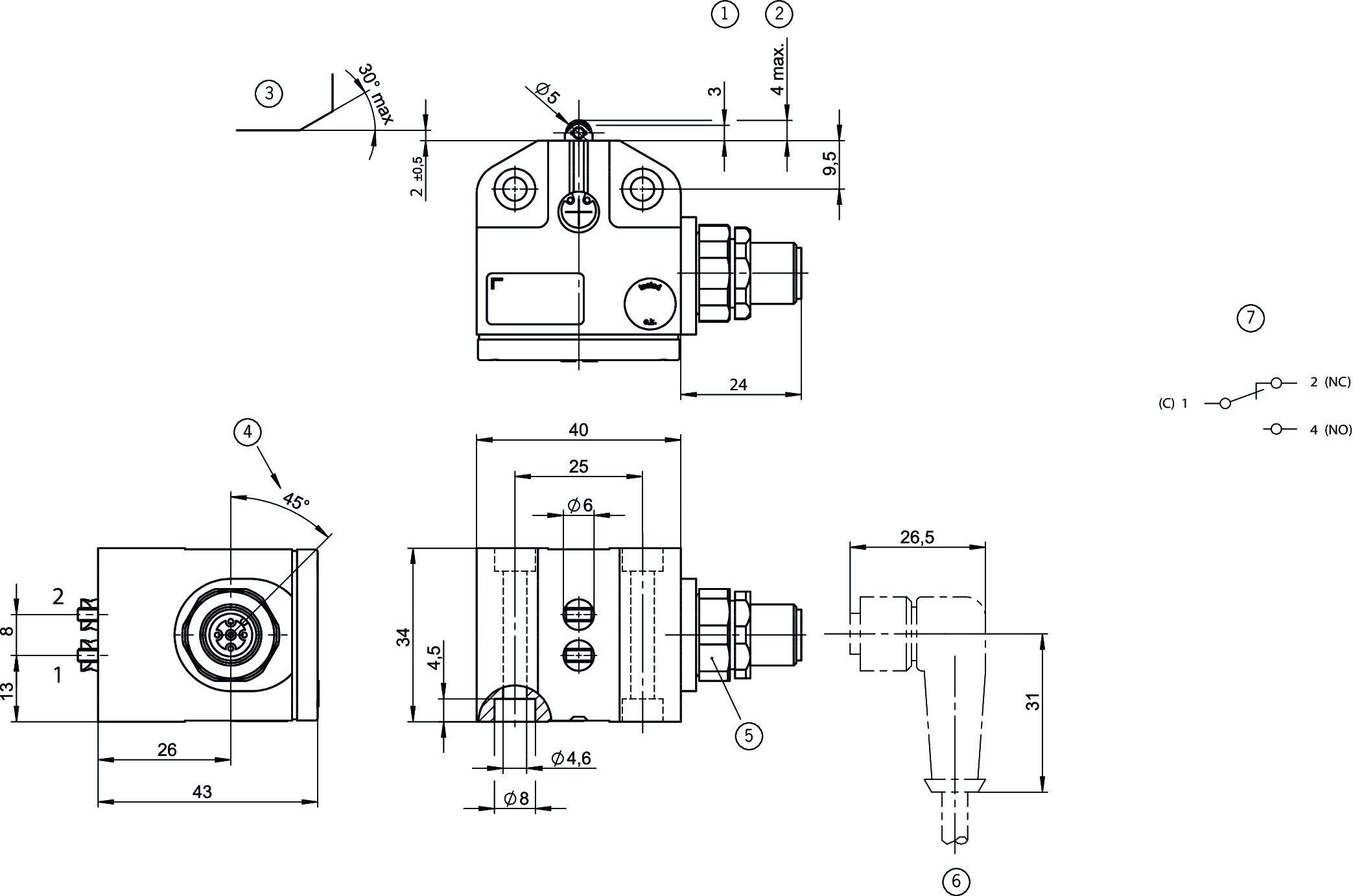

Dimensional drawings

1	Operating point
2	Free position
3	Dog
4	Guide lug aligned
5	Recommended torque 1-1.2 Nm
6	Right-angle plug connector: cable outlet adjustable max. 270° Default setting for cable outlet downward.
7	Switching element: ES592 snap-action switching contact, 1 changeover contact

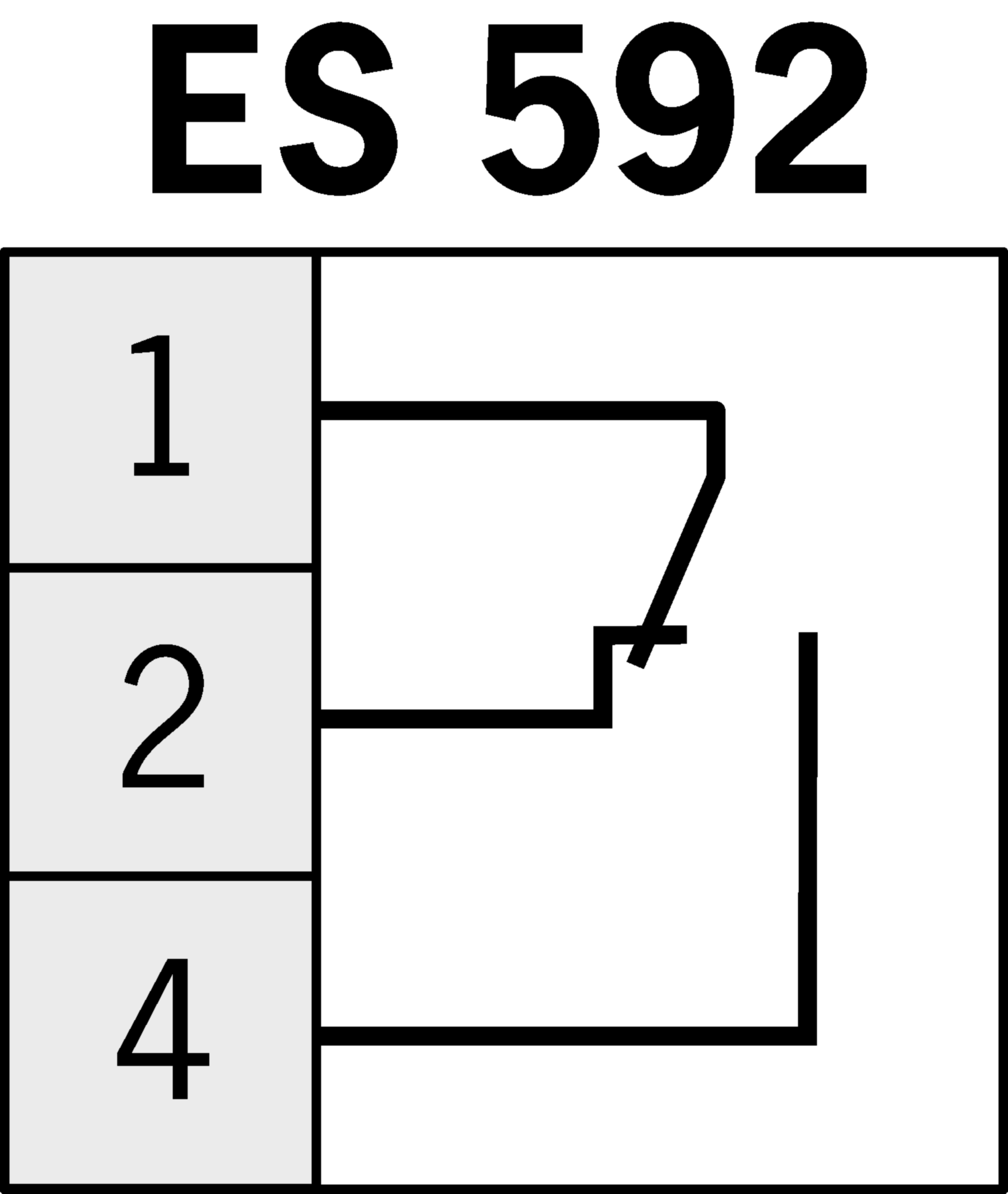

Connection examples

1	Station 1
2	Station 2

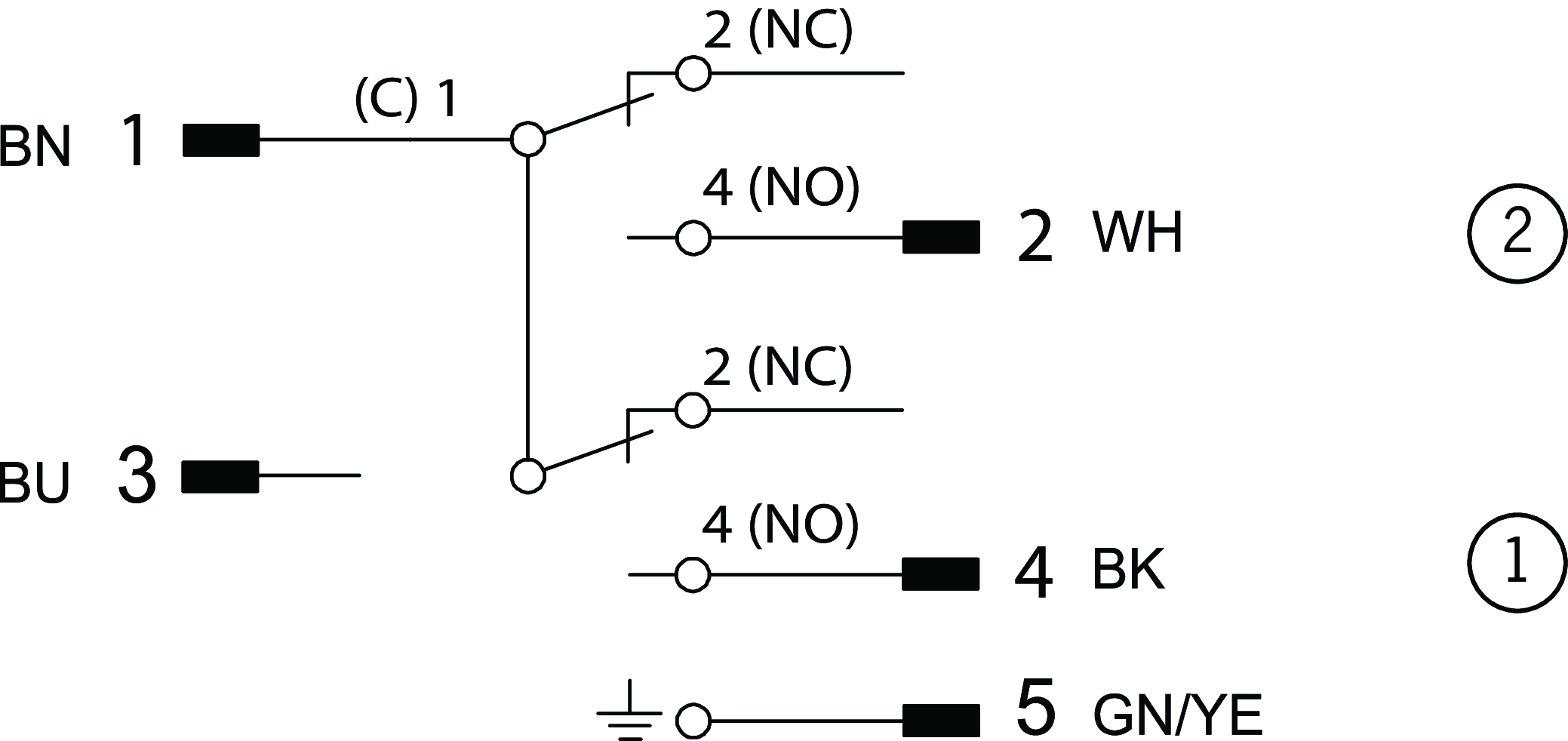

Connection examples

Technical data

Approvals

CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Rated insulation voltage U_i	250 V
Rated impulse withstand voltage U_imp	1.5 kV
Utilization category
DC-13	1 A 24 V
Short circuit protection according to IEC 60269-1	2A gG
Switching current
min. at DC 24V	min. 10 mA
Safety class	I

Mechanical values and environment

Approach speed	0.01 ... 50 m/min
Connection type
1 x	Plug connector M12 x 1, adjustable, high temp. (5-pin)
Number of door position NC contacts	2
Number of switching elements	2
Number of door position NO contacts	2
Number of changeover contacts	2
Design	upright
Actuating element
Slide bearing metal	Roller plunger
Actuating force	15 ... 20 N
Installation orientation	any
Mechanical life	0.5 x 10⁶
Roller diameter	5
Switching principle	Changeover contact with snap-action function
Degree of protection	IP65
Plunger spacing	8 mm
Ambient temperature	-5 ... +125 °C
Material
Contact	Pure silver (Ag)
Housing	Die-cast aluminum, anodized

Miscellaneous

Additional information	(Associated cable plug with TPE (PUR) high-temperature connecting cable for temperatures up to 100 °C - 30,000 h 125 °C - 8,000 h / 150 °C - 2,000 h to be ordered separately.)

Additional information

(Associated cable plug with TPE (PUR) high-temperature connecting cable for temperatures up to 100 °C - 30,000 h 125 °C - 8,000 h / 150 °C - 2,000 h to be ordered separately.)

Accessories

Connection accessories

Connecting cable with angle plug connector M12, 5-pin, 10 m

136963
C-M12F05-05X034PU10,0-GA-136963

For high temperature up to +150°C
M12 female plug, 5-pin
Angled plug connector
PUR cable
Cable length 10 m
With flying lead

Connecting cable with angle plug connector M12, 5-pin, 5 m

136962
C-M12F05-05X034PU05,0-GA-136962

For high temperature up to +150°C
M12 female plug, 5-pin
Angled plug connector
PUR cable
Cable length 5 m
With flying lead

Connecting cable with straight plug connector M12, 5-pin, 10 m

136961
C-M12F05-05X034PU10,0-GA-136961

For high temperature up to +150°C
M12 female plug, 5-pin
Straight plug connector
PUR cable
Cable length 10 m
With flying lead

Connecting cable with straight plug connector M12, 5-pin, 5 m

136960
C-M12F05-05X034PU05,0-GA-136960

For high temperature up to +150°C
M12 female plug, 5-pin
Straight plug connector
PUR cable
Cable length 5 m
With flying lead
