SN02K08-552-MC784 (Order no. 087640)

Series SN... 8 mm, mechanical

  • Plunger spacing 8 mm
  • Upright housing, without flange
  • Degree of protection IP67 according to IEC 60529
SN02K08-552-MC784 (Order no. 087640)

Description

Switching elements

ES 552

Snap-action switching contact 1 changeover contact standard switching element

ES 614

Snap-action switching contact 1 changeover contact suitable for switching low currents

Dimension drawing
Dimension drawing
Wiring diagram ES 552
Wiring diagram ES 552
Wiring diagram ES 614
Wiring diagram ES 614

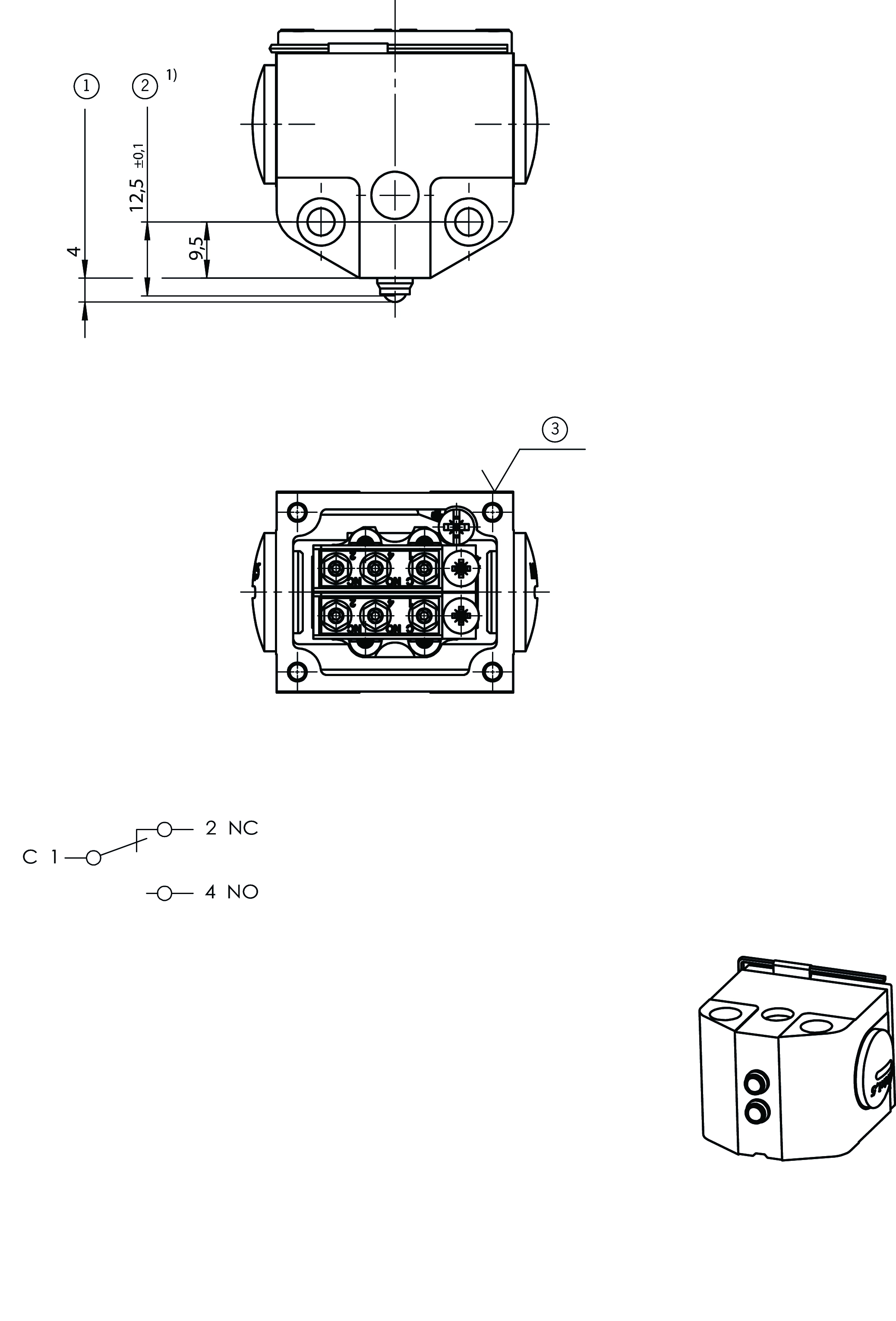

Dimensional drawings

Dimensional drawings
1Max. free position
1)Operating points must be adjusted from the mounting surface.
2Operating point
3Mounting surface

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20CCC2024010305643587_MultipleLimitSwitchc_UL_us_E155795_3/6

Electrical connection values

Fuse max. 6 A gG
Connection cross section 0.14 ... 1.0 mm²
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 2.5 kV
Utilization category
DC-13 2 A 24 V
AC-15 2 A 230 V
Switching current
min. at DC 24V min. 10 mA
thermal rated current Ith 6 A

Mechanical values and environment

Anfahrgeschwindigkeit 0.01 ... 8 m/min
Connection type 2 x M16 x 1.5
Number of switching elements 2
Number of changeover contacts 2
Tightening torque
Screw terminal max. 0.2 Nm Hexagon socket AF 1.3 mm
Design upright
Actuating element Ball plunger
Actuating force min. 15 N
Installation orientation any
Storage temperature -25 ... 80 °C
Mechanical life 10 x 10⁶
Switching principle Snap-action switching contact
Operating point 12.4 ... 12.5 ... 12.6 (Operating point is stated from the middle of the mounting hole.)
Operating point accuracy ± 0,03 (The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 552 has been run-in with approx. 2,000 operating cycles.)
Degree of protection IP67
Plunger spacing 8 mm
Ambient temperature -5 ... 80 °C
Material
Contact Silver alloy, gold flashed
Housing Die-cast aluminum, anodized

Miscellaneous

C number
C784

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 087640
Item designation SN02K08-552-MC784
Gross weight 0,139kg
Customs tariff number 85365019000
ECLASS 27-27-06-02 Multi-position switch
