SN02D16-502-MC1939 (Order no. 088146)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

Series SN... 16 mm, mechanical

ES 502 E

Snap-action switching contact 1 NC + 1 NO

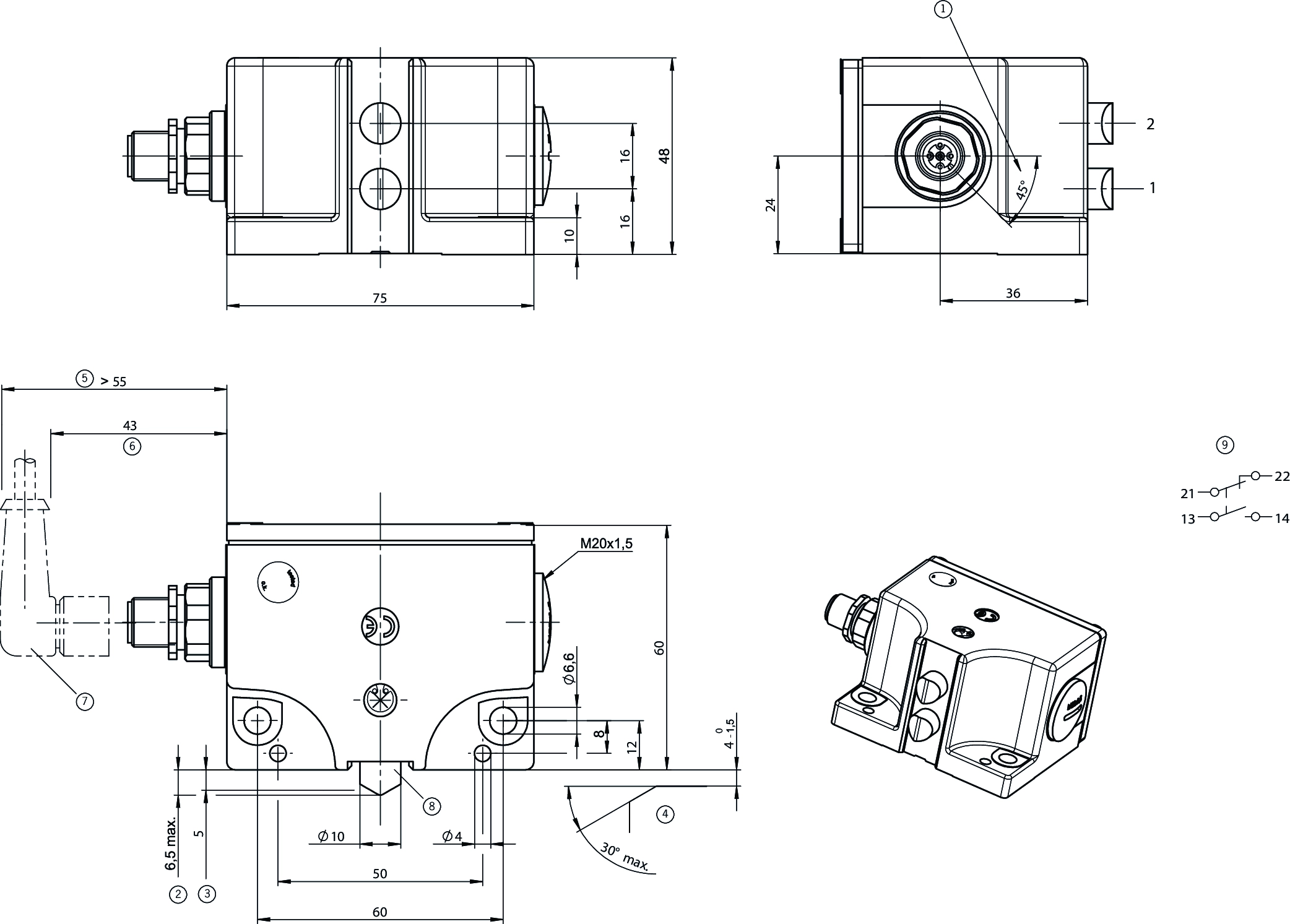

1	Guide lug aligned
2	Free position
3	Operating point
4	Dog
5	Right-angle plug connector
6	Inserted
7	Right-angle plug connector, cable outlet adjustable to max. 270°
8	A shorter mechanical life is to be anticipated if the plunger is over-actuated.
9	Switching element ES502E snap-action contact element: 1 normally closed contact + 1 normally open contact

Rated insulation voltage U_i	50 V
Rated impulse withstand voltage U_imp	1.5 kV
Utilization category
DC-13	4 A 24 V
AC-15	4 A 30 V
Short circuit protection according to IEC 60269-1	4A gG
Switching current
min. at DC 12V	min. 10 mA
thermal rated current I_th	4 A

Approach speed	0.01 ... 40 m/min
Connection type

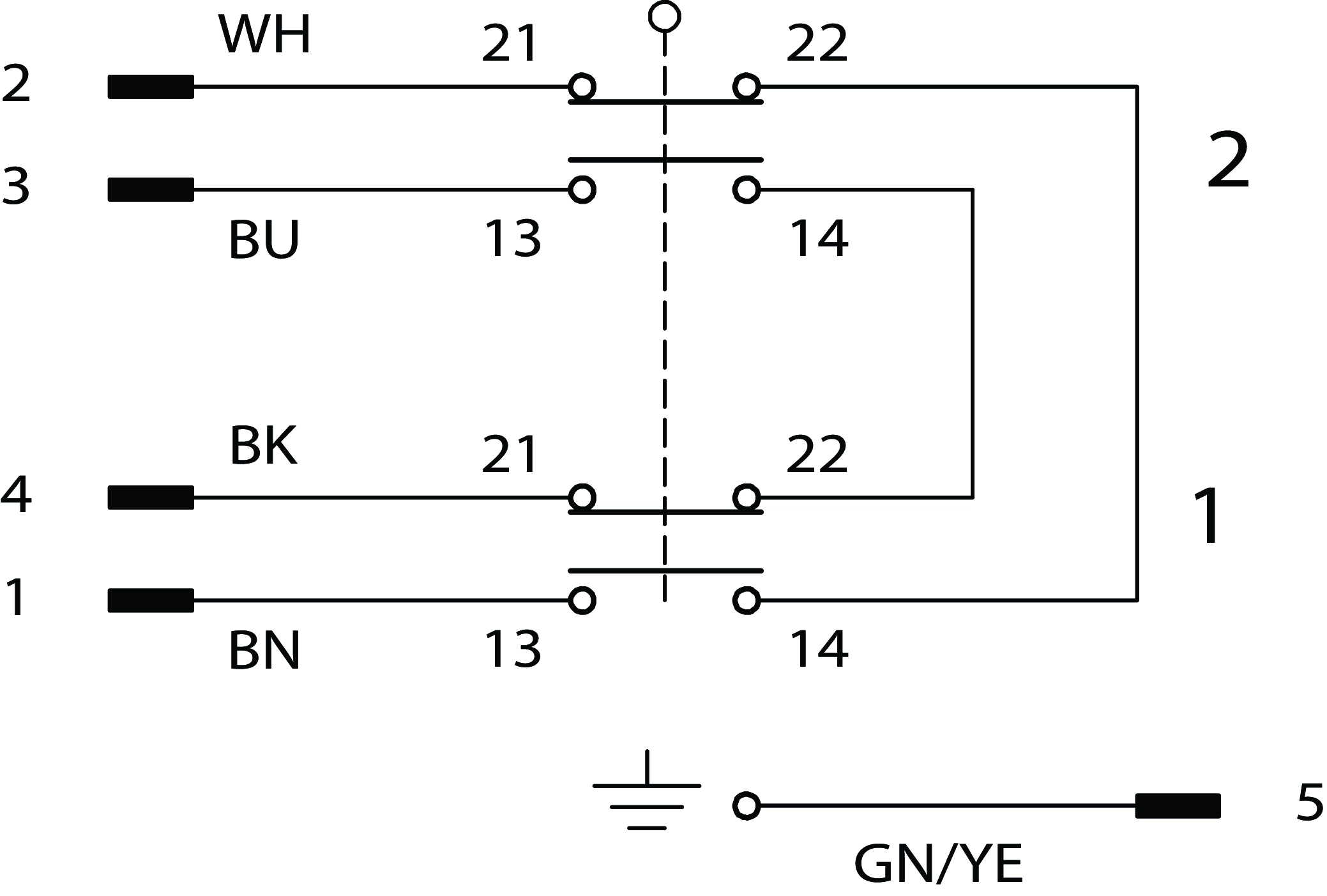

1 x	Plug connector M12 (5-pin, left)
Number NC contacts	2
Number of switching elements	2
Number of NO contacts	2
Design	upright
Actuating element	Chisel plunger (Operating point accuracy ± 0.002. The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.)
Actuating force	min. 20 N
Installation orientation	any
Mechanical life	30 x 10⁶
Contact bounce time	< 3ms
Switching principle	Snap-action switching contact
Contact closing time	< 4ms
Degree of protection	IP67 ((only screwed tight with the related mating connector))
Plunger spacing	16 mm
Ambient temperature	-5 ... +80 °C
Material
Housing	Die-cast aluminum, anodized
Contact	Silver alloy, gold flashed

C number
C1939

073462
C-M12F05-05X050PU05,0-GA-073462

073461
C-M12F05-05X050PU05,0-GA-073461
