SN02D08-614-M (Order no. 095258)

Series SN... 8 mm, mechanical

  • Plunger spacing 8 mm
  • Upright housing, without flange
  • Degree of protection IP67 according to IEC 60529
SN02D08-614-M (Order no. 095258)

Description

Switching element

ES 614

Snap-action switching contact 1 changeover contact suitable for switching low currents

Dimension drawing
Dimension drawing
Wiring diagram ES 614
Wiring diagram ES 614

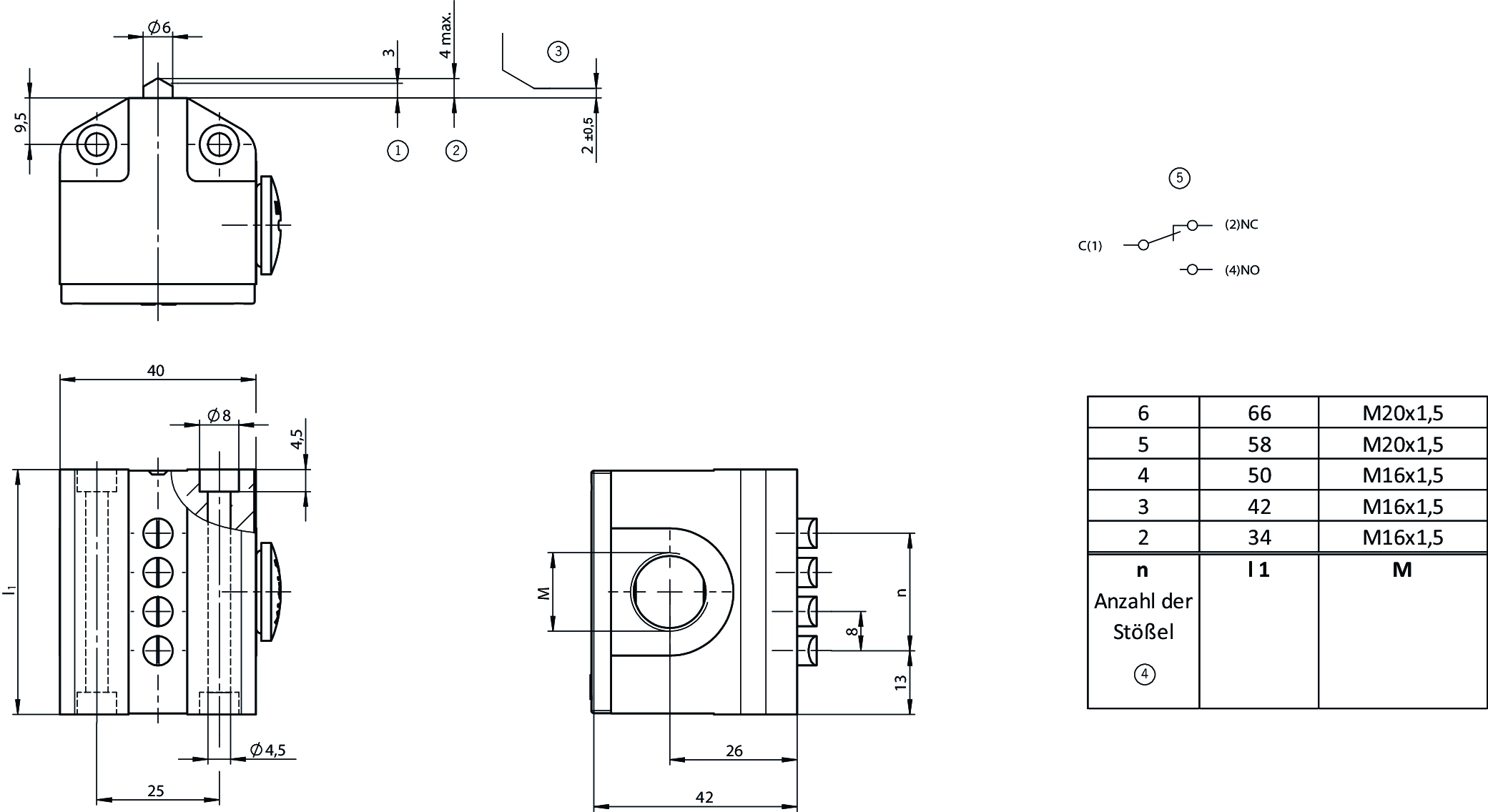

Dimensional drawings

Dimensional drawings
1Operating point
2Free position
3Dog
4n Number of plungers
5Switching element: ES614 snap-action contact element, 1 changeover contact

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20c_UL_us_E155795_3/6CCC_2020980305000540_CQC2008010305306206

Electrical connection values

Connection cross section 0.14 ... 1.0 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 1 A 30 V
Short circuit protection according to IEC 60269-1 2A gG
Switching current
min. at DC 5V min. 1 mA
thermal rated current Ith 2 A

Mechanical values and environment

Approach speed 0.01 ... 20 m/min
Connection type
2 x M16 x 1.5
Number of switching elements 2
Number of changeover contacts 2
Tightening torque
Switching element screw terminal max. 0.2 Nm Hexagon socket AF 1.3 mm
Design upright
Actuating element Chisel plunger
Actuating force min. 15 N
Installation orientation any
Mechanical life 10 x 10⁶
Switching principle Snap-action switching contact (Contact bounce time ≤ 2 ms)
Degree of protection IP67
Plunger spacing 8 mm
Ambient temperature -5 ... +80 °C
Material
Housing Die-cast aluminum, anodized
Contact Gold cross cut contacts

Miscellaneous

Additional information
Ideal application 1 mA; 5 V ... 0.3 A; 30 V

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 095258
Item designation SN02D08-614-M
Gross weight 0,134kg
Customs tariff number 85365019000
ECLASS 27-27-06-02 Multi-position switch
