MGBS-H-BA1A3-R-157543 (Order no. 157543)

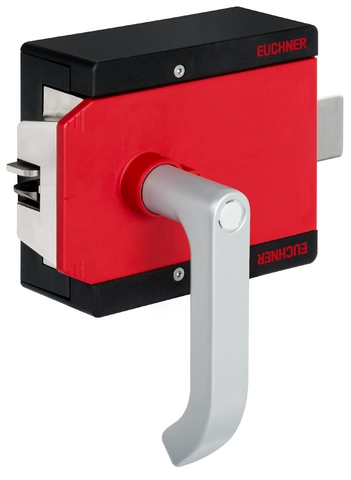

Handle module MGBS-H-BA1A3-R

  • Intelligent bolt tongue
  • Door hinge on right (not adjustable)
  • Automatically extending lockout mechanism
  • Door handle
MGBS-H-BA1A3-R-157543 (Order no. 157543)

Description

Bolt tongue

The bolt tongue is safely detected by a transponder as soon as it is inserted into the switch.

Door hinge

For doors hinged on the right. The door hinge cannot be changed.

Lockout mechanism (automatically extending)

For cleaning and service on the machine the bolt tongue can be locked with max. 3 padlocks.

The lockout mechanism extends automatically on the actuation of the handle and prevents the operation of the handle in the safe state.

Door handle

The MGBS has a robust door handle that can be rotated in 90° steps to suit all installations. The handle rotating direction is simple to adjust.

Door knob

As an alternative to the door handle, the handle module can also be equipped with a door knob.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGBS
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E155795_3/11

Mechanical values and environment

Installation orientation Door hinge DIN right
Degree of protection IP65
Ambient temperature -20 ... +55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Product version number V1.0.0
Additional feature with automatic lockout mechanism

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 157543
Item designation MGBS-H-BA1A3-R-157543
Gross weight 1,24kg
Customs tariff number 85389099990
ECLASS 27-27-24-04 Actuator for safety-related proximity switch
