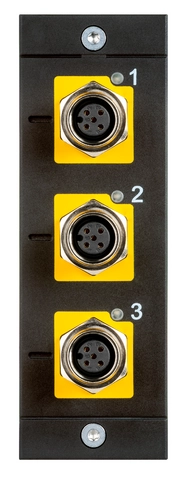

MSM-1-R-DA-SQSQSQ-F3-164058 (Order no. 164058)

Submodule MSM-1-R... (3 x M12 plug connectors for electromechanical safety switches)

  • Function expansion for modules MGB2 and MCM
  • Connection type: R
  • 3 x M12 plug connectors for connecting electromechanical safety switches
  • Status LED per M12 plug connector
MSM-1-R-DA-SQSQSQ-F3-164058 (Order no. 164058)

Description

Connector assignment

Plug connector (view of connection side)PinDesignation

 		124 V encoder supply, channel 1
2Input signal 2 (E2)
30 V
4Input signal 1 (E1)
524 V encoder supply, channel 2
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
1Coding alignment
2Black built-in socket
LED1LED1 indicator
LED2LED2 indicator
LED3LED3 indicator
Pos 1M12 plug connector for connecting an electromechanical safety switch
Pos 2M12 plug connector for connecting an electromechanical safety switch
Pos 3M12 plug connector for connecting an electromechanical safety switch
Zmarks position of Item 1

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSwitching elementNote slide-in labelSlide-in labelVersion
1Connection M12x1 for mechanical switching element
2Connection M12x1 for mechanical switching element
3Connection M12x1 for mechanical switching element

Electrical connection values

Current consumption max. 48 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA

Mechanical values and environment

Installation orientation any
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic, die-cast zinc, nickel plated

Miscellaneous

Software ID (SW ID) 164058

Accessories

RPS3131SC100RSFM5
111490
RPS3131SC100RSFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin, right
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC100LSFM5
111491
RPS3131SC100LSFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin, left
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC175RSFM5
111492
RPS3131SC175RSFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin, right
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC175LSFM5
111493
RPS3131SC175LSFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin, left
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC300LSFM5
111495
RPS3131SC300LSFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin, left
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC100SFM5
110450
RPS3131SC100SFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC175SFM5
110451
RPS3131SC175SFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin
  • Switching elements with 2 switching contacts
  • Emergency stop
RPS3131SC300SFM5
110452
RPS3131SC300SFM5
  • Plastic housing
  • Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
  • Clamping head for pull wire
  • Indication of correct rope tension
  • Plug connector M12, 5-pin
  • Switching elements with 2 switching contacts
  • Emergency stop

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,0 MB)

Ordering data

Ordernumber 164058
Item designation MSM-1-R-DA-SQSQSQ-F3-164058
Gross weight 0,129kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
