MSM-1-R-DA-SISISI-H1-165628 (Order no. 165628)

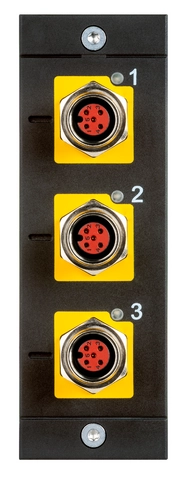

Submodule MSM-1-R... (3 x M12 plug connectors for OSSD safety switches)

  • Function expansion for modules MGB2 and MCM
  • Connection type: R
  • 3 x M12 plug connectors for connecting OSSD safety switches
  • Status LED per M12 plug connector
MSM-1-R-DA-SISISI-H1-165628 (Order no. 165628)

Description

Connector assignment

Plug connector (view of connection side)PinDesignation

1Power supply for OSSD device
2OSSD channel 1
30 V
4OSSD channel 2
5n.c.
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
1Coding alignment
2Red built-in socket
LED1LED indicator
LED2LED indicator
LED3LED indicator
Pos 1M12 plug connector for connecting an OSSD safety switch
Pos 2M12 plug connector for connecting an OSSD safety switch
Pos 3M12 plug connector for connecting an OSSD safety switch
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

ItemColorExtrasVersionNote slide-in labelSwitching elementSlide-in labelNumberDesignation1LED
1Connection M12x1 for OSSD device
2Connection M12x1 for OSSD device
3Connection M12x1 for OSSD device

Electrical connection values

Current consumption max. 50 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Evaluating safety signalsPL e-9.06x10-10420 y
Only applies to externally connected safety functions such as enabling switches, safety switches, etc.


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 165628

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,9 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 165628
Item designation MSM-1-R-DA-SISISI-H1-165628
Gross weight 0,125kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
