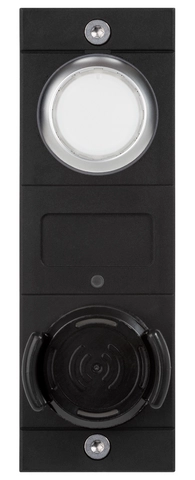

MSM-1-R-CKS2-FLX-R1Q0FS-I9-168594 (Order no. 168594)

Submodule MSM-1-R... (CKS2 adapter, acknowledgment pushbutton)

  • Function expansion for modules MGB2 and MCM
  • Connection type: R
  • CKS2 key adapter with integrated evaluation electronics
  • 1 acknowledgment button
  • Freely controllable LEDs (red, green, yellow)
  • Additional RGB LED for simple diagnostics
  • Cut-out for slide-in label
  • Incl. lens set
  • Incl. color slide-in labels
MSM-1-R-CKS2-FLX-R1Q0FS-I9-168594 (Order no. 168594)

Description

Category according to EN 13849-1

The CKS2 system can be integrated into installations with the highest safety requirements, such as category 4 / PL e according to EN ISO 13849-1.

Key evaluation

EUCHNER products with FlexFunction require a teach-in operation during setup to configure the device. The device’s function depends on the taught-in key type.

Important: Keys must be ordered separately!

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
Pos 1Acknowledgment button
Pos 2Position for slide-in label
Pos 3CKS2 key system
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Approvals

FCC_MSM CKS2_2AJ58-20TÜV Süd München_Z10 040393 0028 Rev.04

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
1Acknowledgment button2NO
212.5x27 mmPosition for slide-in label
3CKS2 key system

Electrical connection values

Current consumption max. 50 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Safe key detectionPL e33.37x10-9420 y


B10DMission time
Acknowledgment button2.6x10620 y


Miscellaneous

Submodulbreite 1
Slide-in label
NumberLabelingNote
1without marking
Software ID (SW ID) 168594

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 168594
Item designation MSM-1-R-CKS2-FLX-R1Q0FS-I9-168594
Gross weight 0,105kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
