MSM-1-P-TA-KPP-I6-167906 (Order no. 167906)

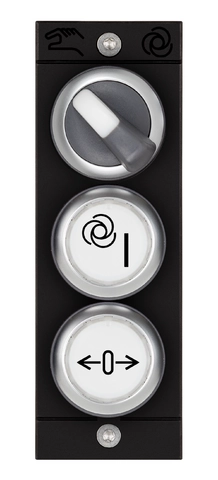

Submodule MSM-1-P... (1 selector switch 90°, form V, illuminated, 2 pushbuttons, illuminated with symbol)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 selector switch 1 x 90°, form V, illuminated
  • 2 illuminated pushbuttons with symbol
  • Use down to a temperature of -30 °C
MSM-1-P-TA-KPP-I6-167906 (Order no. 167906)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 11 selector switch, 1 x 90°, form V, illuminated
Pos 2Illuminated pushbutton
Pos 3Illuminated pushbutton
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Operating and display elements

ItemColorExtrasVersionSlide-in labelSwitching elementNote slide-in labelNumberDesignation1LED
1Selector switch, illuminated1NO
2whiteprintedIlluminated pushbutton1NO
3whiteprintedIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 30 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -30 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -30 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000009
Additional feature incl. lens set, ID no. 120344

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 167906
Item designation MSM-1-P-TA-KPP-I6-167906
Gross weight 0,115kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
