MSM-1-P-CS-BPP-N4-172953 (Order no. 172953)

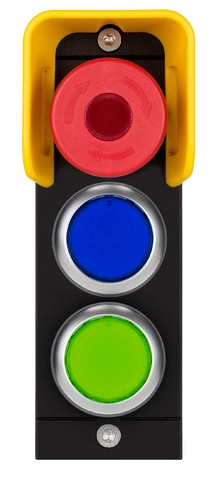

Submodule MSM-1-P... (illuminated emergency stop with protective collar, 2 illuminated pushbuttons)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 illuminated emergency stop with protective collar according to ISO 13850
  • 2 illuminated pushbuttons
MSM-1-P-CS-BPP-N4-172953 (Order no. 172953)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
Pos 1Emergency stop in accordance with EN ISO 13850, illuminated
Pos 2Illuminated pushbutton
Pos 3Illuminated pushbutton
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Approvals

EAC_RU C-DE.HX37.B.14157/20

Operating and display elements

ItemColorExtrasVersionSlide-in labelNote slide-in labelSwitching elementNumberDesignation1LED
1Illuminated emergency stop, with protective collar2 PD
2blueIlluminated pushbutton1NO
3greenIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 32 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.13x10620 y


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000001

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 172953
Item designation MSM-1-P-CS-BPP-N4-172953
Gross weight 0,13kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
