MSM-1-P-CS-B0L0D1-I1-167100 (Order no. 167100)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

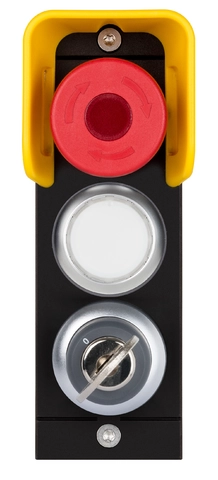

Submodule MSM-1-P... (emergency stop, cover for indicators, key-operated rotary switch)

Function expansion for modules MGB2 and MCM
Connection type: P
1 illuminated emergency stop according to ISO 13850
Cover for indicators, middle
1 key-operated rotary switch 1 x 40°, form V, spring return
incl. lens set (1 x white, 1 x white with labeling)

MSM-1-P-CS-B0L0D1-I1-167100 (Order no. 167100)

Description

Wiring diagram for connection to MGB2 Classic

Dimensional drawings

Pos 1	Emergency stop according to ISO 13850, illuminated
Pos 2	Illuminated white cover for indicators
Pos 3	Key-operated rotary switch SSG 10, 1 x 40°, Form V, spring return
Z	marks position of Item 1

Connection examples

Technical data

Operating and display elements

Item	Extras	Color	Version	Switching element
1			Illuminated emergency stop	2 PD
2		white	Cover for indicators
3	SSG 10		Key-operated rotary switch

Electrical connection values

Current consumption	max. 24 mA
	Controls and indicators
Breaking capacity	max. 0.25 W
Switching voltage	24 V
Switching current	5 ... 10 mA
LED power supply	24 V DC
	Illuminated emergency stop
Breaking capacity	max. 0.25 W
Switching voltage	5 ... 24 V
Switching current	5 ... 100 mA
LED power supply	24 V DC

Mechanical values and environment

Installation orientation	any
Response time	See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance	Acc. to EN IEC 60947-5-3
Degree of protection	IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at U_B = 24 V DC	-25 ... +55 °C
Material	Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

	Illuminated emergency stop
B_10D
Emergency stop	0.13 x 10⁶
	Key-operated rotary switch
B₁₀
Key-operated rotary switch	0.03 x 10⁶

Miscellaneous

Software ID (SW ID)	9000036

Software ID (SW ID)

9000036

Accessories

miscellaneous accessories

Lens set labeled

120377
AY-SET-LNS-SY01-120377

126158
AY-SET-LNS-SY03-126158

125359
AY-SET-LNS-SY02-125359

158307
AY-SET-LNS-SY04-158307

160049
AY-SET-LNS-SY05-160049

Lens set, 5 colors

120344
AY-SET-LNS-0001-120344

163284
AY-SET-LNS-0003-163284

Lens set, 6 colors

120378
AY-SET-LNS-0002-120378

Downloads

Complete package

Download all important documents with a single click.

Content:

The operating instructions and any additions to the operating instructions or brief instructions
Any data sheets to supplement the operating instructions
The declaration of conformity

Download Complete Package (ZIP, 0,5 MB)

Data sheets

Data sheet

Doc. no.

Version

Language

Size

Data sheet
Fiche technique
Ficha de datos
Datenblatt
Ficha de dados
数据表
データシート
데이터 시트
Datový list

Declarations of conformity

EU-Konformitätserklärung

Doc. no.

Version

Language

Size

EU-Konformitätserklärung

UKCA-Konformitätserklärung

Doc. no.

Version

Language

Size

UKCA-Konformitätserklärung

CAD data

Show CAD data for Cadenas

Ordering data

Ordernumber	167100
Item designation	MSM-1-P-CS-B0L0D1-I1-167100
Gross weight	0,23kg
Customs tariff number	85371098
ECLASS	27-24-26-05 Field bus, decentralized peripheral - function-/technology module
