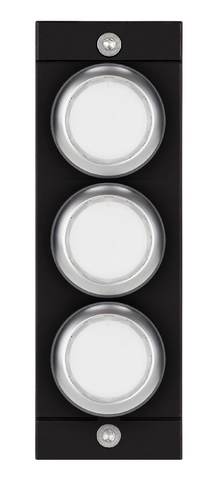

MSM-1-P-CA-RRR-C5-157218 (Order no. 157218)

Submodule MSM-1-P... (3 illuminated acknowledgment buttons)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 3 illuminated acknowledgment buttons
MSM-1-P-CA-RRR-C5-157218 (Order no. 157218)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
Pos 1Illuminated acknowledgment button
Pos 2Illuminated acknowledgment button
Pos 3Illuminated acknowledgment button
Zmarks position of Item 1

Connection examples

Connection examples

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDVersionSwitching elementSlide-in labelNote slide-in label
1Illuminated acknowledgment button2NO
2Illuminated acknowledgment button2NO
3Illuminated acknowledgment button2NO

Electrical connection values

Current consumption max. 36 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Acknowledgment button
B 10
Acknowledgment button 1.3 x 10⁶

Miscellaneous

Software ID (SW ID) 157218
Additional feature incl. lens set, ID no. 163284

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Ordering data

Ordernumber 157218
Item designation MSM-1-P-CA-RRR-C5-157218
Gross weight 0,1kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
