MSM-1-P-CA-PQP-F2-164048 (Order no. 164048)

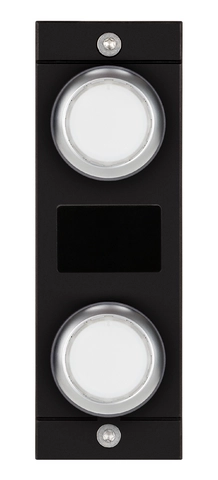

Submodule MSM-1-P... (2 illuminated pushbuttons, top/bottom, slide-in label)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 2 illuminated pushbuttons
  • 1 cut-out for slide-in label
  • incl. lens set
  • incl. 1 x slide-in label
MSM-1-P-CA-PQP-F2-164048 (Order no. 164048)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 1Illuminated pushbutton
Pos 2Slide-in label
Pos 3Illuminated pushbutton
Zmarks orientation of item 1

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

ItemColorExtrasVersionNote slide-in labelSlide-in labelSwitching elementNumberDesignation1LED
1Illuminated pushbutton1NO
217.5x27 mmPosition for slide-in label
3Illuminated pushbutton1NO

Electrical connection values

Current consumption max. 20 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1
Slide-in label
NumberLabelingNote
1without marking
Software ID (SW ID) 164048
Additional feature incl. lens set, ID no. 120344

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 164048
Item designation MSM-1-P-CA-PQP-F2-164048
Gross weight 0,1kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
