MSM-1-P-CA-PPP-R9-176651 (Order no. 176651)
Choose content

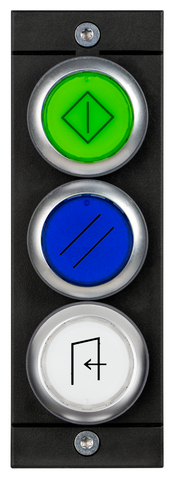

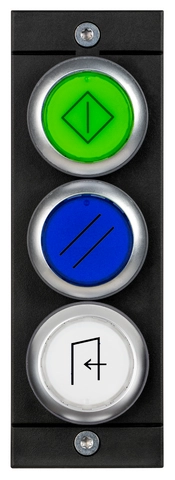

Submodule MSM-1-P... (3 illuminated pushbuttons with symbol)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 3 illuminated pushbuttons with symbol
Description

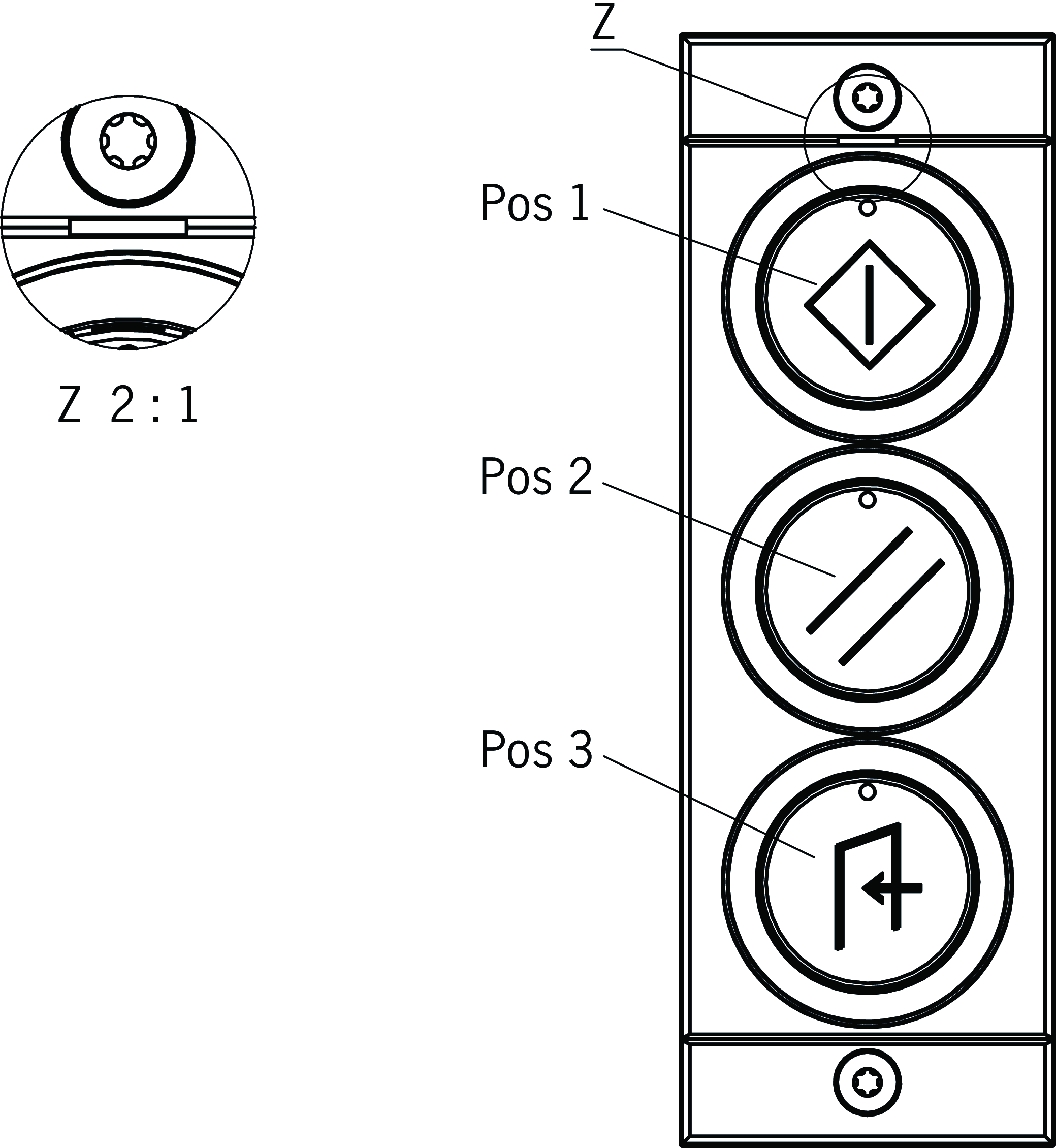

Dimensional drawings
| Pos 1 | Green-illuminated pushbutton with printed text |
| Pos 2 | Pushbutton with blue illumination and printed text |
| Pos 3 | White-illuminated pushbutton with lettering |
Dimensional drawings

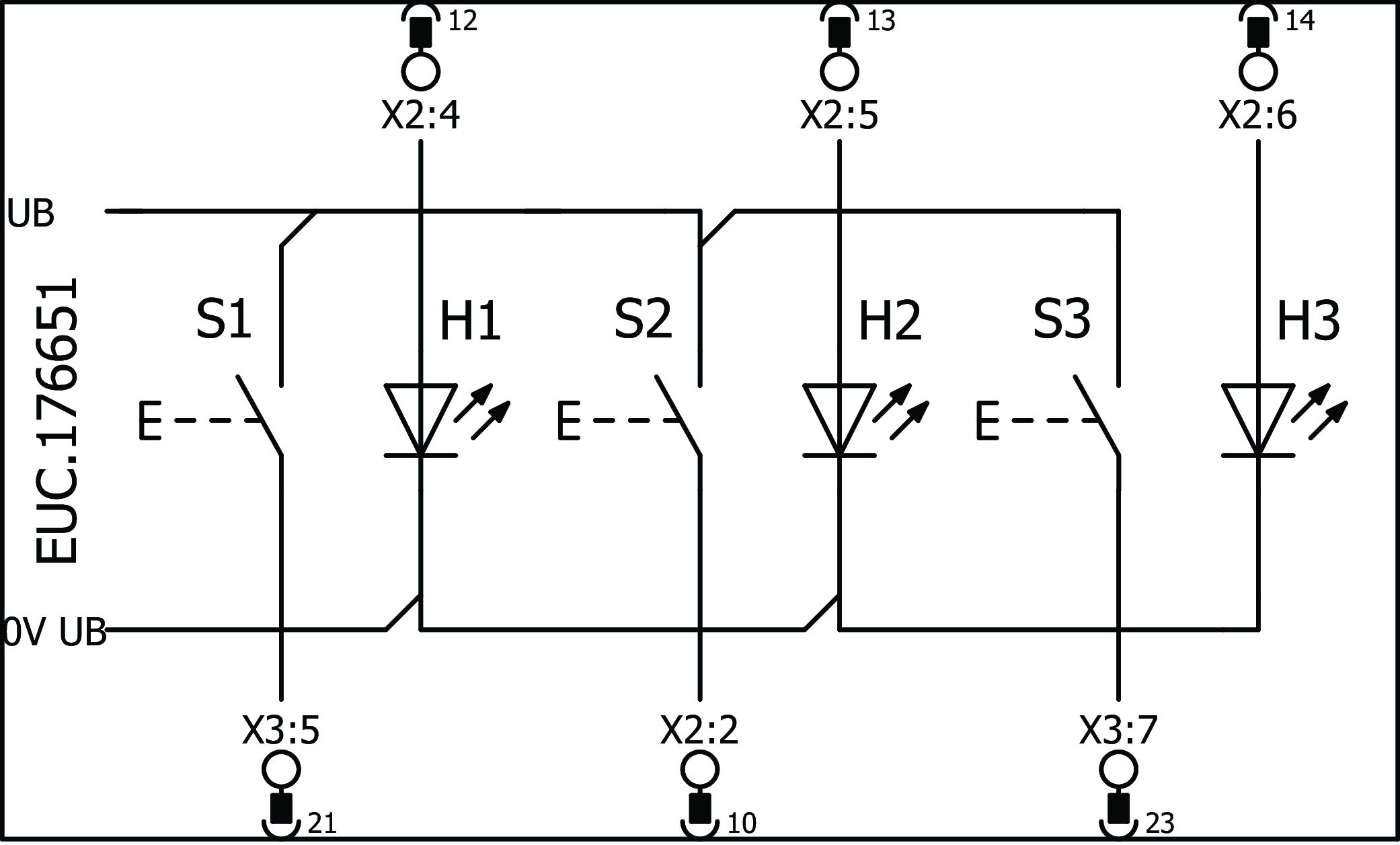

Connection examples
Technical data
Operating and display elements
| Item | Color | Extras | Slide-in label | Switching element | Note slide-in label | Version | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | green | printed | 1NO | Illuminated pushbutton | |||||
| 2 | blue | printed | 1NO | Illuminated pushbutton | |||||
| 3 | white | printed | 1NO | Illuminated pushbutton |
Electrical connection values
| Current consumption | max. 30 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 9000003 |
