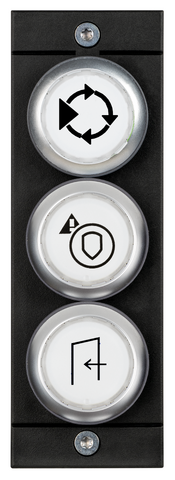

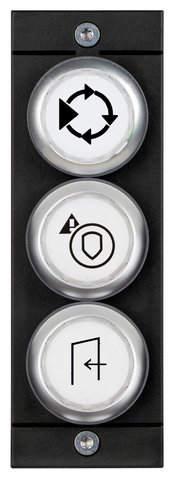

MSM-1-P-CA-PPP-R5-175917 (Order no. 175917)
Choose content
Submodule MSM-1-P... (3 illuminated pushbuttons with symbol)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 3 illuminated pushbuttons with symbol
Description

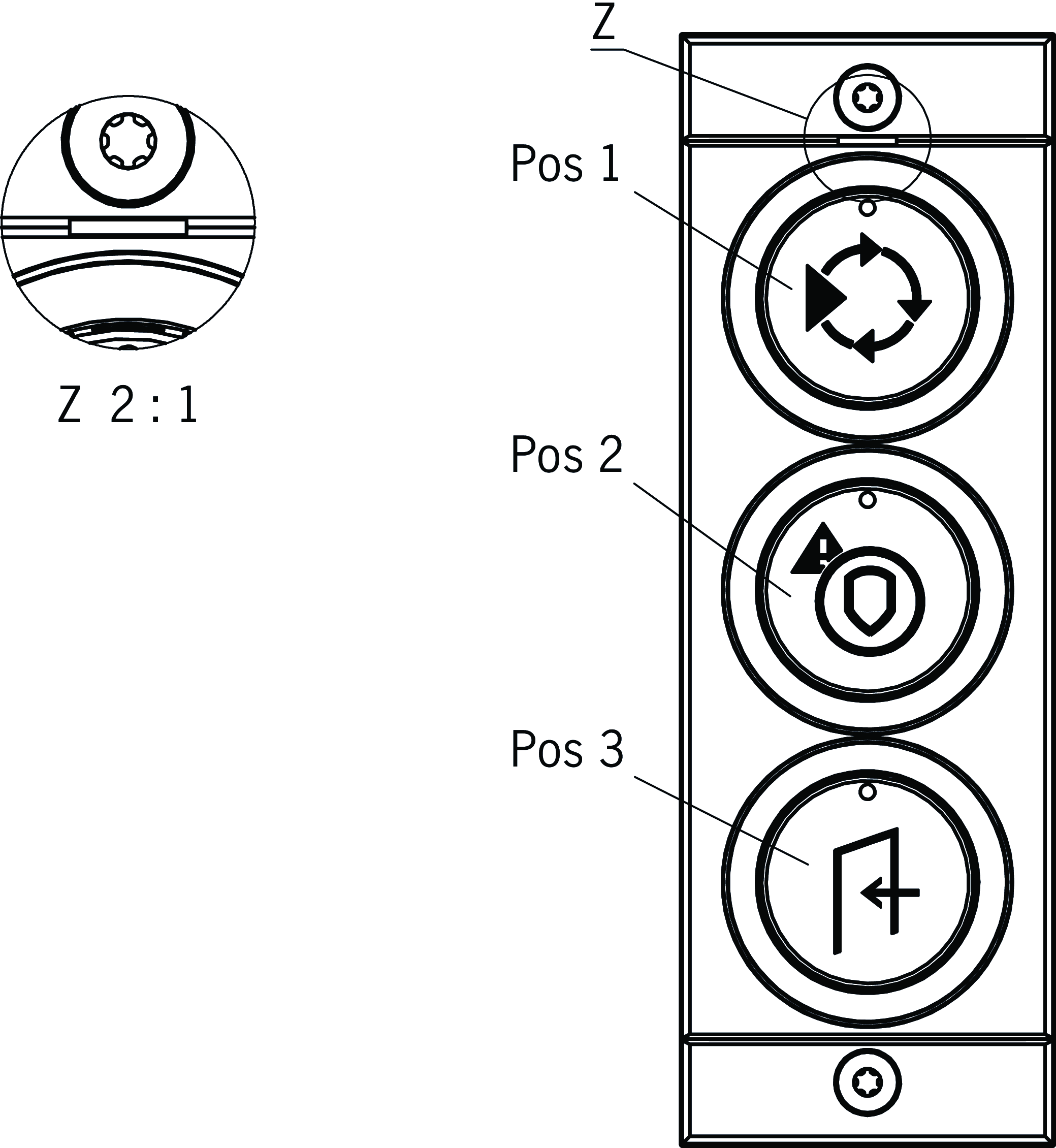

Dimensional drawings
| Pos 1 | White-illuminated pushbutton with lettering |
| Pos 2 | White-illuminated pushbutton with lettering |
| Pos 3 | White-illuminated pushbutton with lettering |
| Z | marks orientation of item 1 |
Dimensional drawings

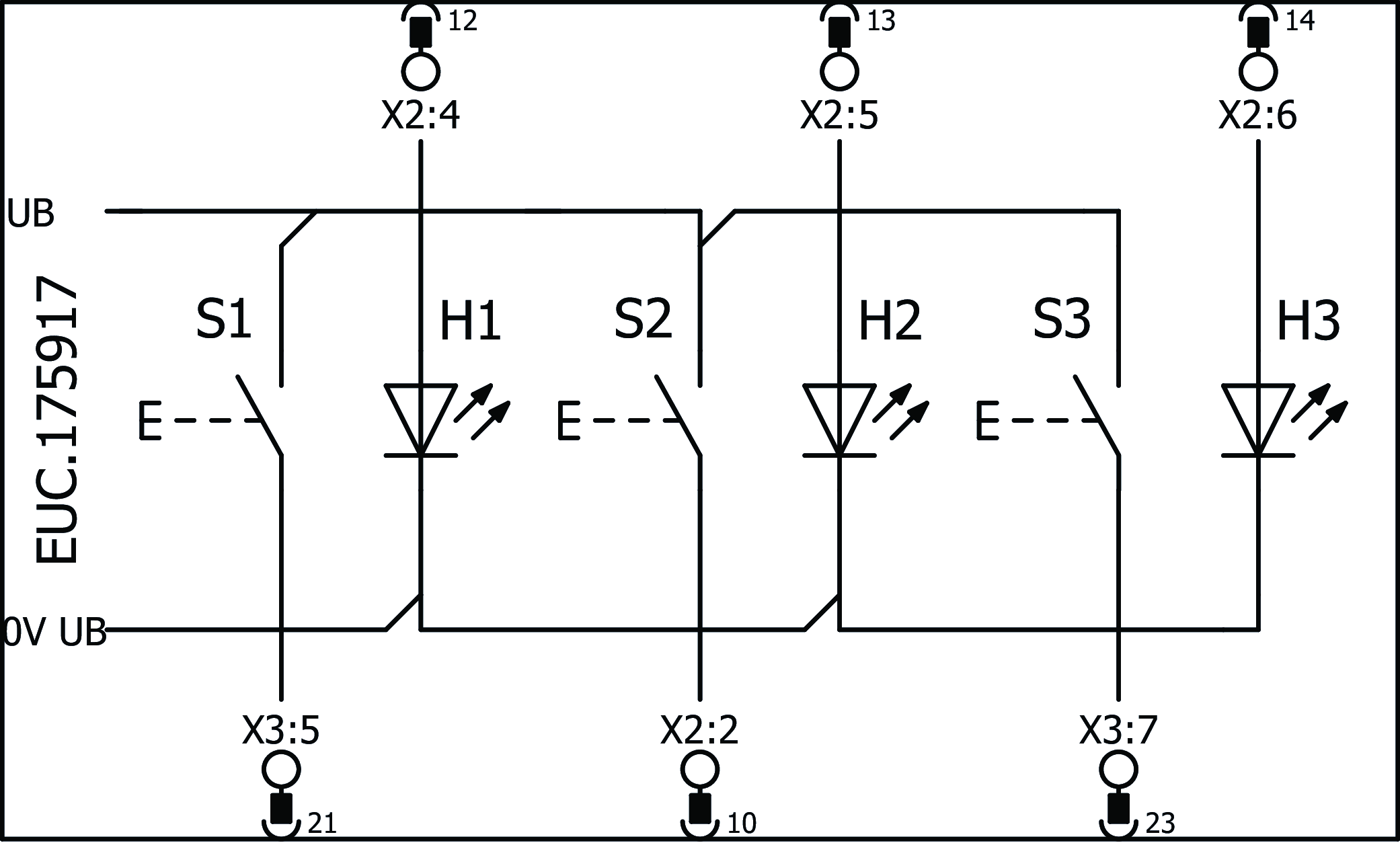

Connection examples
Technical data
Operating and display elements
| Item | Color | Extras | Slide-in label | Note slide-in label | Switching element | Version | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | white | printed | 1NO | Illuminated pushbutton | |||||
| 2 | white | printed | 1NO | Illuminated pushbutton | |||||
| 3 | white | printed | 1NO | Illuminated pushbutton |
Electrical connection values
| Current consumption | max. 30 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 9000003 |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2518509
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001508
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
Ordering data
| Ordernumber | 175917 |
| Item designation | MSM-1-P-CA-PPP-R5-175917 |
| Gross weight | 0,kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-24-26-05 Field bus, decentralized peripheral - function-/technology module |
