MSM-1-P-CA-PP0-E1-162927 (Order no. 162927)

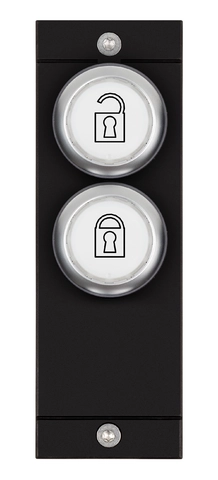

Submodule MSM-1-P... (2 illuminated white pushbuttons with symbol)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 2 illuminated white pushbuttons with symbol
MSM-1-P-CA-PP0-E1-162927 (Order no. 162927)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 1Illuminated pushbutton
Pos 2Illuminated pushbutton
Zmarks position of Item 1

Dimensional drawings

Dimensional drawings

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDNote slide-in labelSwitching elementSlide-in labelVersion
1printedwhite1NOIlluminated pushbutton
2printedwhite1NOIlluminated pushbutton

Electrical connection values

Current consumption max. 20 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Software ID (SW ID) 9000002

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Ordering data

Ordernumber 162927
Item designation MSM-1-P-CA-PP0-E1-162927
Gross weight 0,095kg
Customs tariff number 85365019000
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
