MSM-1-P-CA-P00-B9-137746 (Order no. 137746)

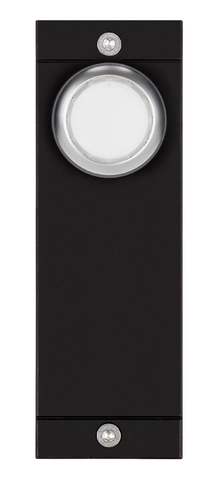

Submodule MSM-1-P... (illuminated pushbutton, top/bottom)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 illuminated white pushbutton, top/bottom
  • incl. lens set
MSM-1-P-CA-P00-B9-137746 (Order no. 137746)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 1Illuminated pushbutton
Zmarks position of Item 1

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSlide-in labelNote slide-in labelVersionSwitching element
1Illuminated pushbutton1NO

Electrical connection values

Current consumption max. 10 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Software ID (SW ID) 137746
Additional feature incl. lens set, ID no. 120344

Ordering data

Ordernumber 137746
Item designation MSM-1-P-CA-P00-B9-137746
Gross weight 0,1kg
Customs tariff number 85389099990
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
