MSM-1-P-CA-L0P-D9-162700 (Order no. 162700)

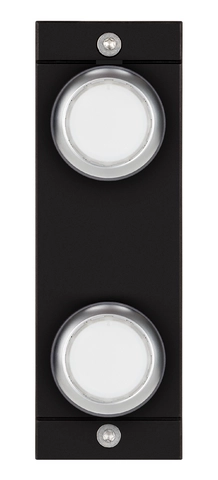

Submodule MSM-1-P... (cover for indicators top/bottom, illuminated pushbutton, top/bottom)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • Cover for indicators, top/bottom
  • 1 illuminated pushbuttons
  • incl. lens set
MSM-1-P-CA-L0P-D9-162700 (Order no. 162700)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 1White cover for indicators
Pos 3Illuminated pushbuttons
Zmarks position of Item 1

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSwitching elementNote slide-in labelSlide-in labelVersion
11NOCover for indicators
3Illuminated pushbutton

Electrical connection values

Current consumption max. 18 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Software ID (SW ID) 162700
Additional feature incl. lens set, ID no. 120344

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Ordering data

Ordernumber 162700
Item designation MSM-1-P-CA-L0P-D9-162700
Gross weight 0,1kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
