MSM-1-P-CA-HL0-D3-161045 (Order no. 161045)

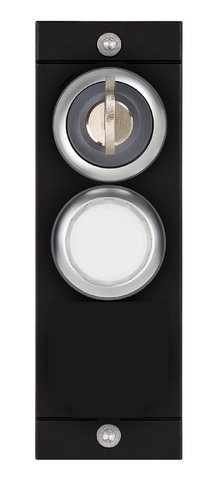

Submodule MSM-1-P... (1 key-operated rotary switch, form V, cover for indicators)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 key-operated rotary switch, 1 x 40°, form V
  • Cover for indicators
  • incl. lens set
  • incl. 2 keys (ID no. 121809)
MSM-1-P-CA-HL0-D3-161045 (Order no. 161045)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic
MGB2 Modular: at a glance
MGB2 Classic
Multifunctional door locking systems

Dimensional drawings

Dimensional drawings
Pos 1Key-operated rotary switch 1 x 40°, form V
Pos 2Illuminated cover for indicators
Zmarks position of Item 1

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSwitching elementSlide-in labelNote slide-in labelVersion
11NOKey-operated rotary switch
2Cover for indicators

Electrical connection values

Current consumption max. 10 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic, die-cast zinc, nickel plated

Miscellaneous

Software ID (SW ID) 161045
Additional feature
incl. lens set, ID no. 120344
incl. key, ID no. 121809

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Ordering data

Ordernumber 161045
Item designation MSM-1-P-CA-HL0-D3-161045
Gross weight 0,13kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
