MSM-1-P-CA-H00000-M6-172780 (Order no. 172780)
Choose content

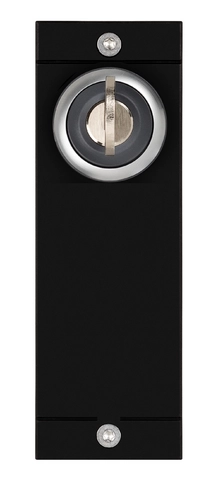

Submodule MSM-1-P... (1 key-operated rotary switch, form V)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 1 key-operated rotary switch, 1x40°, form V, spring return
- incl. lens set
- incl. 2 keys (ID no. 121809)
Description
Dimensional drawings
| Pos 1 | Key-operated rotary switch 1 x 40°, form V |
Dimensional drawings
Connection examples
Technical data
Approvals
Operating and display elements
| Item | Color | Extras | Slide-in label | Note slide-in label | Switching element | Version | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1NO | Key-operated rotary switch |
Electrical connection values
| Current consumption | max. 2 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 9000055 |
| Additional feature | incl. key, ID no. 121809 |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2518509
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001508
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
Ordering data
| Ordernumber | 172780 |
| Item designation | MSM-1-P-CA-H00000-M6-172780 |
| Gross weight | 0,115kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-24-26-05 Field bus, decentralized peripheral - function-/technology module |
