MSM-1-P-CA-E0L0L0-L3-171540 (Order no. 171540)
Choose content

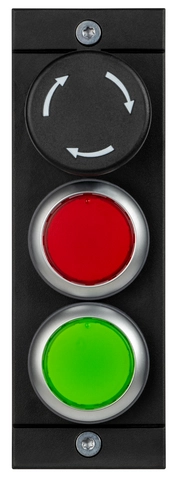

Submodule MSM-1-P... (machine stop, 2 covers for indicators)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 1 machine stop
- 2 covers for indicators
Description
Dimensional drawings
| Pos 1 | Machine stop |
| Pos 2 | Signal indicator |
| Pos 3 | Signal indicator |
| Z | marks orientation of item 1 |
Dimensional drawings
Connection examples
Technical data
Approvals
Operating and display elements
| Item | Color | Extras | Switching element | Version | Note slide-in label | Slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 PD | Machine stop button | |||||||
| 2 | red | Signal indicator | |||||||
| 3 | green | Signal indicator |
Electrical connection values
| Current consumption | max. 20 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
| Machine stop button | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 5 ... 24 V |
| Switching current | 1 ... 100 mA |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Response time | See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-... |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 9000049 |
| Additional feature |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2518509
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001508
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
Ordering data
| Ordernumber | 171540 |
| Item designation | MSM-1-P-CA-E0L0L0-L3-171540 |
| Gross weight | 0,115kg |
| Customs tariff number | 85371098 |
| ECLASS | 27-24-26-05 Field bus, decentralized peripheral - function-/technology module |
