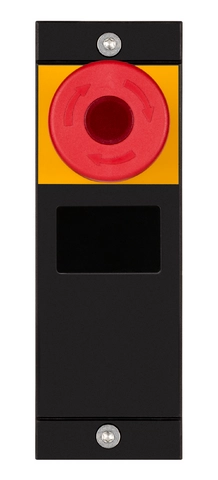

MSM-1-P-CA-B0Q000-I2-167267 (Order no. 167267)

Submodule MSM-1-P... (illuminated emergency stop, slide-in label)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 illuminated emergency stop according to ISO 13850
  • 1 cut-out for slide-in label
  • incl. 1 x slide-in label
MSM-1-P-CA-B0Q000-I2-167267 (Order no. 167267)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
Pos 1Emergency stop according to ISO 13850
Pos 2Slide-in label
ZMarked position of Item 1

Connection examples

Connection examples

Technical data

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSlide-in labelSwitching elementVersionNote slide-in label
12 PDIlluminated emergency stop
217.5x27 mmPosition for slide-in label

Electrical connection values

Current consumption max. 12 mA
Illuminated emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 5 ... 100 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (IP65: only in the screwed tight state with the specified base units.)
Ambient temperature
at UB = 24 V DC -25 ... +55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Illuminated emergency stop
B10D
Emergency stop 0.13 x 10⁶

Miscellaneous

Slide-in label
NumberLabelingNote
1without marking
Software ID (SW ID) 167267

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Ordering data

Ordernumber 167267
Item designation MSM-1-P-CA-B0Q000-I2-167267
Gross weight 0,1kg
Customs tariff number 85365019000
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
