MSM-1-P-CA-APP-R2-175660 (Order no. 175660)

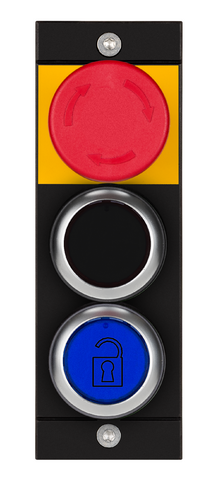

Submodule MSM-1-P... (EMERGENCY STOP, 1 black pushbutton, 1 blue pushbutton illuminated with symbol)

  • Function expansion for modules MGB2 and MCM
  • Connection type: P
  • 1 emergency stop according to ISO 13850
  • 1 black illuminated pushbutton
  • 1 blue illuminated pushbutton with symbol
MSM-1-P-CA-APP-R2-175660 (Order no. 175660)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

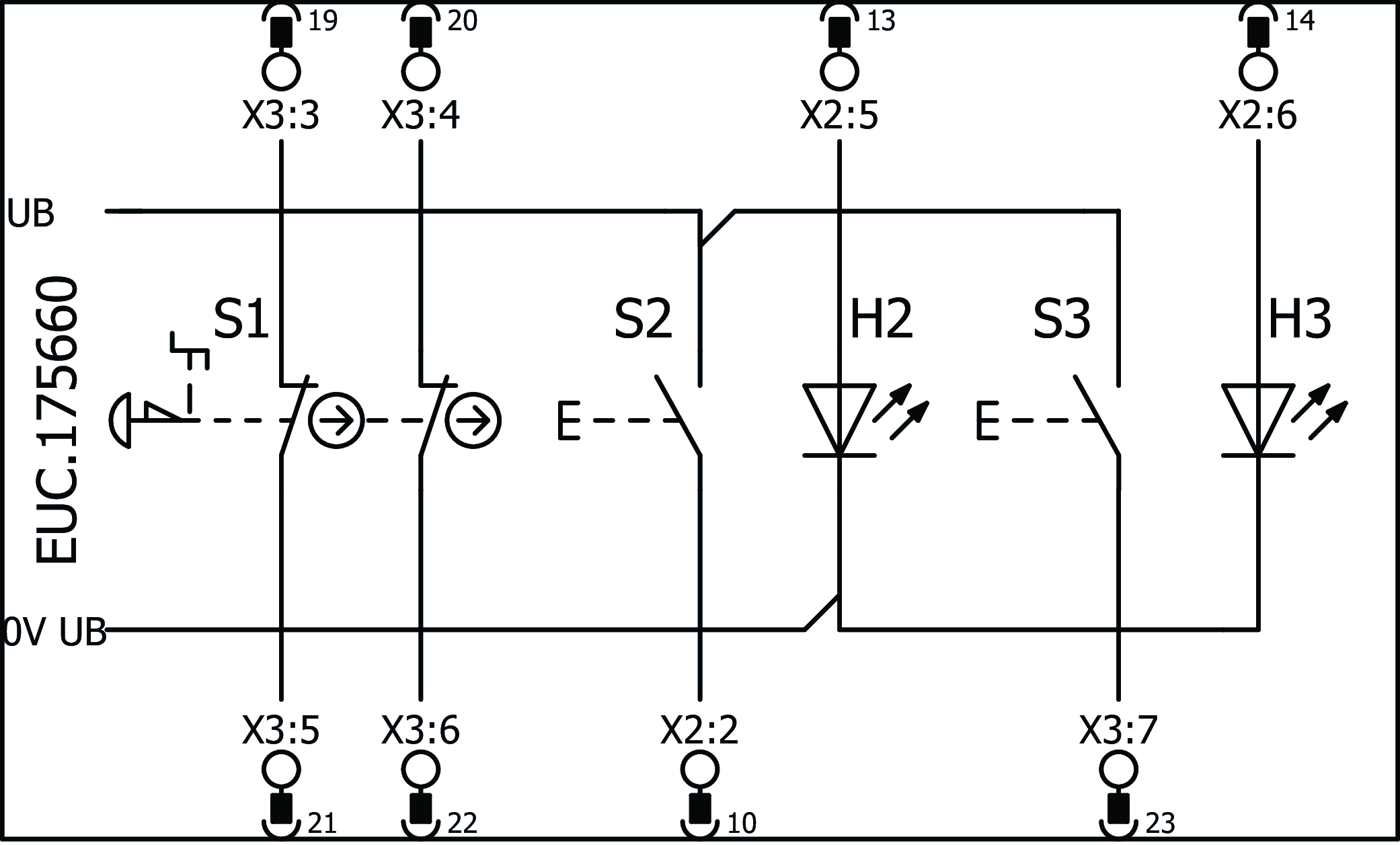

Wiring diagram for connection to MGB2 Classic
Wiring diagram for connection to MGB2 Classic

Dimensional drawings

Dimensional drawings

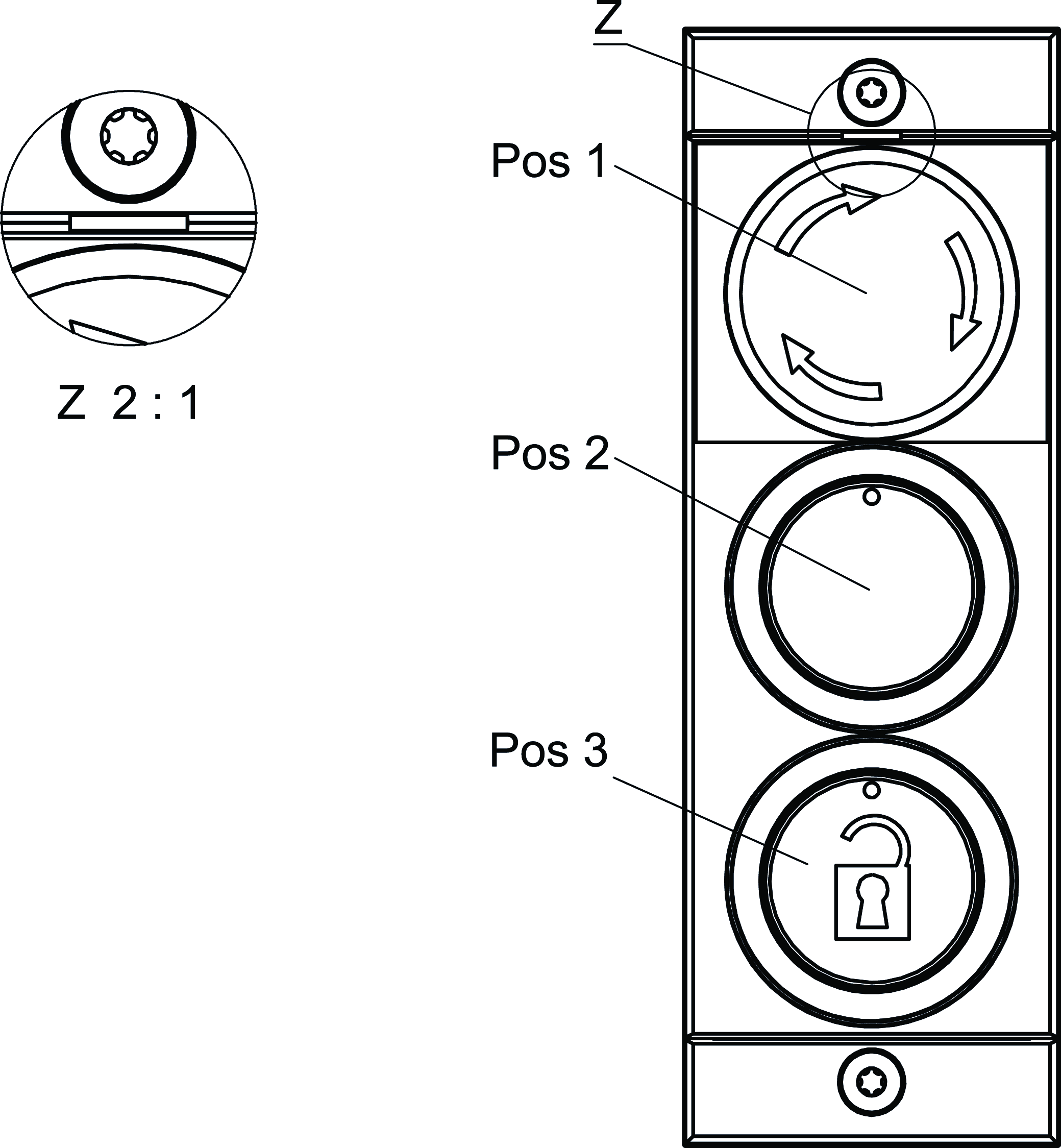

Pos 1Emergency stop according to ISO 13850
Pos 2Illuminated pushbutton
Pos 3Illuminated pushbutton with symbol
Zmarks position of Pos 1

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.HX37.B.14157/20

Operating and display elements

ItemColorExtrasNote slide-in labelVersionSwitching elementSlide-in labelNumberDesignation1LED
1Emergency stop2 PD
2blackIlluminated pushbutton1NO
3blueprintedIlluminated pushbutton1NO

Electrical connection values

Current consumption max. 24 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC
Emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA

Mechanical values and environment

Installation orientation any
Response time See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-...
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.13x10620 y


Miscellaneous

Submodulbreite 1
Software ID (SW ID) 9000006

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 175660
Item designation MSM-1-P-CA-APP-R2-175660
Gross weight 0,kg
Customs tariff number 85371098
ECLASS 27-24-26-05 Field bus, decentralized peripheral - function-/technology module
