MSM-1-P-CA-00P0P0-R3-175662 (Order no. 175662)
Choose content

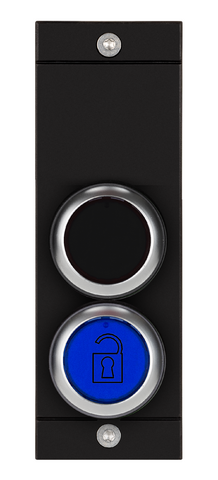

Submodule MSM-1-P... ( 1 black illuminated pushbutton, 1 blue illuminated pushbutton with symbol)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 1 black pushbutton
- 1 blue illuminated pushbutton with symbol
Description

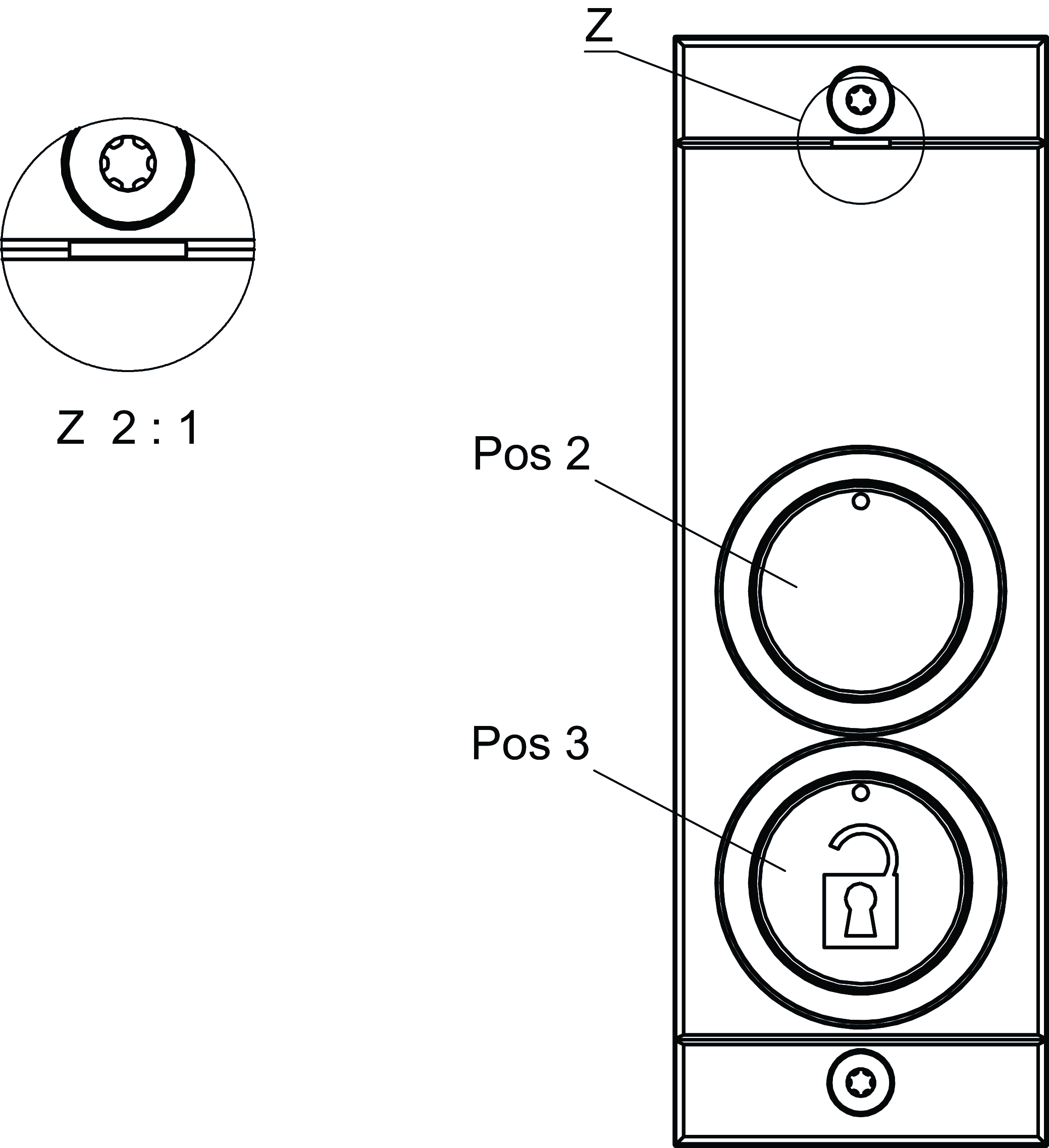

Dimensional drawings
| Pos 2 | Illuminated pushbutton |
| Pos 3 | Illuminated pushbutton with symbol |
| Z | marks position of Pos 1 |
Dimensional drawings

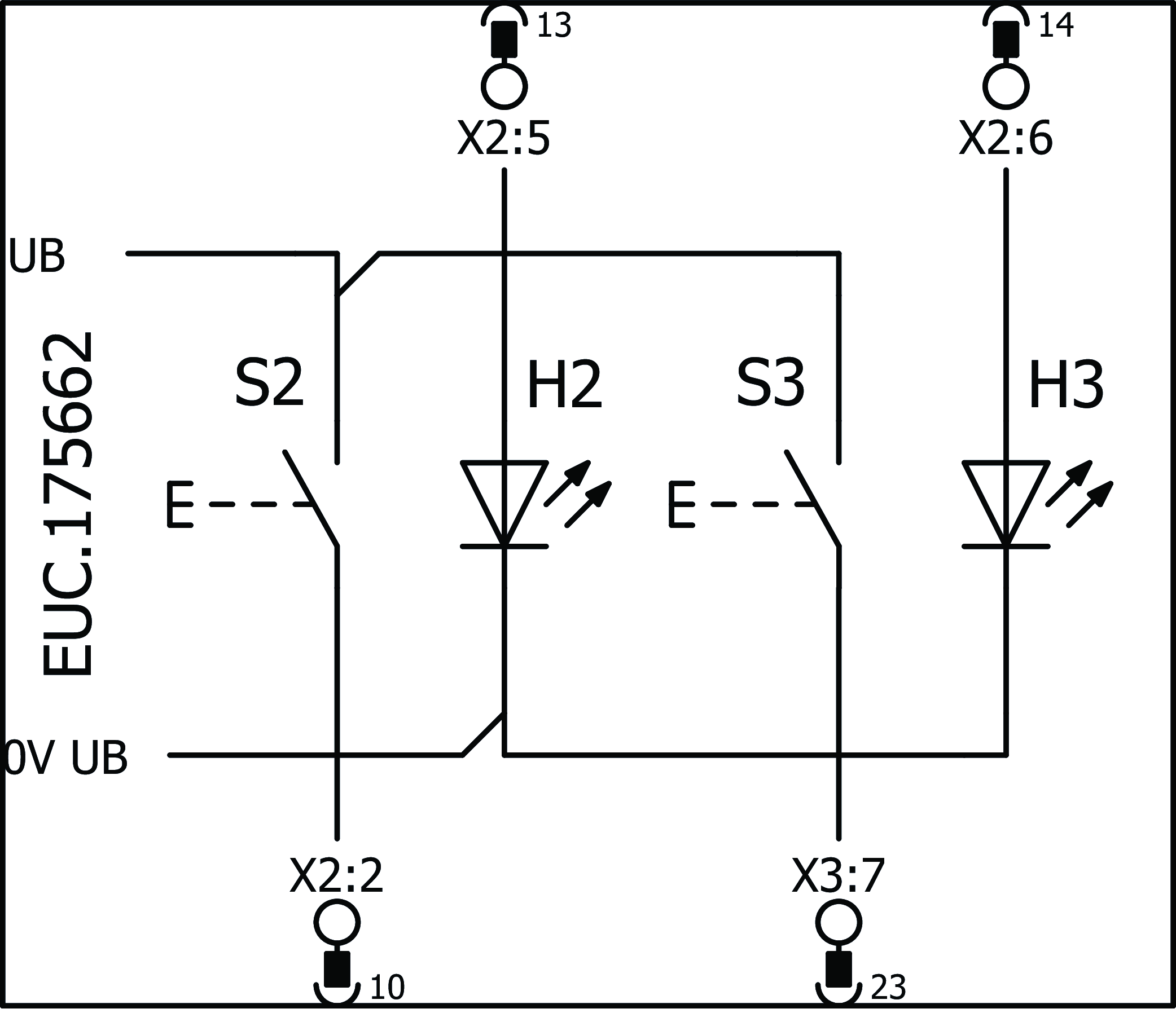

Connection examples
Technical data
Approvals
Operating and display elements
| Item | Color | Extras | Version | Note slide-in label | Switching element | Slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 2 | black | Illuminated pushbutton | 1NO | ||||||
| 3 | blue | printed | Illuminated pushbutton | 1NO |
Electrical connection values
| Current consumption | max. 20 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 9000034 |
