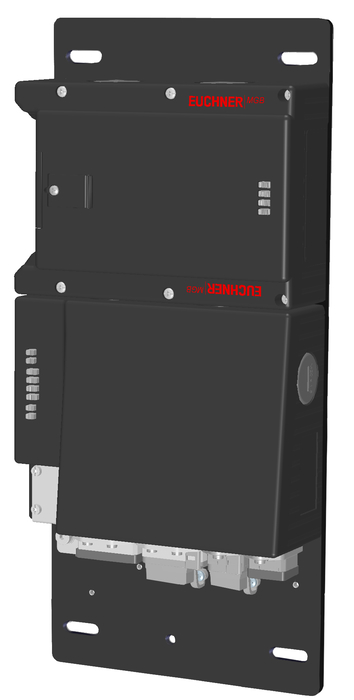

MGB-L2B-PNA-L-114045 (Order no. 114045)

Evaluation module and bus module MGB-L2...-PN... (guard locking by solenoid force) without controls or indicators, push-pull plug

  • Guard locking with guard lock monitoring
  • Push-pull plug
  • Pre-assembled on mounting plates
  • Integrated Profinet RT switch
  • Unicode
MGB-L2B-PNA-L-114045 (Order no. 114045)

Description

Profinet connection

Connection via push-pull plugs according to IEC 61076-3-117

Profinet RT switch

Point-to-point topology network structure due to integrated RT switch.

Flexible use as interlocking or guard locking

By means of the corresponding evaluation of the safe device data by the control system, use can be as either interlocking or guard locking (with or without monitoring).

Technical data

Approvals

TUEV Süd München_M6A 040393 0042 Rev. 00Profisafe_Z20058EAC_RU C-DE.HX37.B.14157/20

Work area

Assured release distance sar
Door position max. 65 mm

Controls and indicators

Assignment diagram
B0
L0

Electrical connection ratings

Connecting cable
Ethernet PROFINET I/O cable, at least cat. 5e
Current consumption max. 500 mA
Rated insulation voltage Ui 75 V
Rated impulse withstand voltage Uimp 0.5 kV
EMC protection requirements In accordance with EN 61000-4 and EN 61326-3-1
maximum feed-in current in the connection block
X1, X2 max. 4000 mA
Safety class III
Transponder coding Unicode
Degree of contamination (external, according to EN 60947-1) 3
Power supply X1
Fusing
external min. 1 A slow blow
Operating voltage DC
L1 24 V DC -15% ... +10% ((reverse polarity protected, regulated, residual ripple <5%, PELV))
Auxiliary voltage DC
L2 24 V DC -15% ... +10% (The auxiliary voltage is not required for the MGB system)
Power supply X2
Operating voltage DC
L1 24 V DC -15% ... +10% (For looping through for connected devices)
Auxiliary voltage DC
L2 24 V DC -15% ... +10% (For looping through for connected devices)

Mechanical values and environment

Connection
according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e Push-pull RJ45 (X4 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.))
Push-pull power (X2 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.))
according to IEC 61076-3-117, variant 14, screened, Profinet I/O cable, at least cat. 5e Push-pull RJ45 (X3 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.))
Push-pull power (X1 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.))
Degree of protection IP54
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel
Mechanical life
1 x 10⁶
in case of use as door stop, and 1 Joule impact energy 0.1 x 10⁶
Installation orientation Door hinge DIN left
Switching frequency 0.25 Hz
Reaction time
Bolt position max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.)
Guard locking max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.)
Door position max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.)
Shock and vibration resistance according to EN 60947-5-3
Ambient temperature
at UB = 24V DC -20 ... +55 °C
Locking force FZh 2000 N
Guard locking principle Open-circuit current principle

Reliability values according to EN ISO 13849-1

Mission time 20 y
Safety Integrity Level SIL 3 (EN 62061:2005)
Monitoring of guard locking and the guard position
Diagnostic Coverage (DC) 99 %
Category 4
Performance Level PL e
PFHD 4.07 x 10-8 (Fixed failure rate without consideration of faults in wearing parts.)

Miscellaneous

Product version number V3.30.10

Interface, bus

Bus data protocol Profinet (IEC 61158 type 10)
Safety data protocol Profisafe (IEC 61784-3-3)
Data interface
Ethernet

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 6,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 114045
Item designation MGB-L2B-PNA-L-114045
Gross weight 4,2kg
Customs tariff number 85365019
