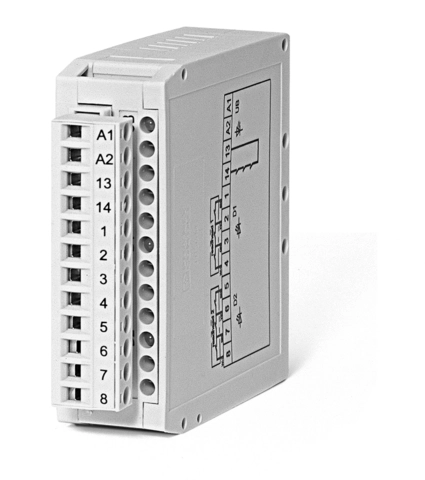

CMS-E-AR (Order no. 085536)

Evaluation unit CMS-E-AR, 1 safety contact

  • Up to 30 read heads can be connected
  • 1 safety contact
CMS-E-AR (Order no. 085536)

Description

Functional description

The evaluation unit CMS-E-AR is suitable for the direct connection of up to 30 read heads.

Category/PL according to EN ISO 13849-1

  • Category 1/PL c with 3 ... 30 read heads connected (NO contacts wired in series)
  • Category 3/PL d with 1 ... 2 read heads connected (NO contacts wired in parallel)
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
CMS: Magnetically coded safety switches

Dimension drawing

Dimension drawing

Wiring diagram

Wiring diagram

Technical data

Approvals

Zulassung EACZulassung c_UL_us LISTED Class 2

Mechanical values and environment

Housing material
Housing Polycarbonate (PC)
Weight
Net 0,13 kg
Ambient temperature 0 ... 50 °C
Degree of protection Terminals IP20 / housing IP40
Mechanical life 10 x 106
Mounting method Mounting rail 35mm according to DIN EN 60715 TH35
Connection Connection terminals, plug-in
Safety contacts 13/14
Number of safety contacts 1

Electrical connection ratings

Operating voltage
DC 24 V -10% ... +10% (All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.)
Fusing
Protection internal (operating voltage UB) 0,75 A Automatically resetting fuse PTC
Rated insulation voltage Ui
AC 250 V
Degree of contamination (external, according to EN 60947-1) 2
Connection cross-section 0,14 ... 2,5 mm²
LED indicator 1 indicator LED Power (UB) and 2 status indicators for the read heads (D1/D2)
Safety contacts 13/14
Type of output Relay contacts, floating (NO)
Current consumption 70 mA
Switching voltage
AC max.250 V
Switching current
at DC 24V 2 ... 3000 mA
Fusing
External contact fuse (safety circuit) acc. to EN IEC 60269-1 3A gG
Utilization category acc. to EN 60947-4-1
Utilization category acc. to EN 60947-5-1
AC-15 0.9A , 250V (Max. switching current per contact)
DC-13 1.8A , 24V (Max. switching current per contact)
Switching load
According to UL class 2 Input: 24V DC ; output: 24V DC
Breaking capacity (VA) max.750 VA
Risk time according to EN 60947-5-3 max.10 ms

Other

In compliance with EN ISO 13849-1: 2015 ; EN 50178: 1997 ; EN 60204-1: 2006/A1: 2009 ; EN ISO 14119: 2013; EN 6100-6-2: 2005; EN 6100-6-3: 2007/A1:2011; EN 60947-5-3: 2013

Reliability values according to EN ISO 13849-1

Monitoring of the guard position with up to 2 read heads, with parallel wiring
Category 3 (This value is dependent on the number of switching cycles and the switching current.)
Performance Level PL d (This value is dependent on the number of switching cycles and the switching current.)
PFHD 4.3 x 10-8 (This value is dependent on the number of switching cycles and the switching current.)
Monitoring of the guard position with > 2 read heads, with serial wiring
Category 1 (This value is dependent on the number of switching cycles and the switching current.)
Performance Level PL c (This value is dependent on the number of switching cycles and the switching current.)
PFHD 1.1 x 10-6 (This value is dependent on the number of switching cycles and the switching current.)
Number of switching cycles
≤ 0.1A at 24V DC max.96000 1/Jahr
≤ 1A at 24V DC max.75000 1/Jahr
≤ 3A at 24V DC max.18000 1/Jahr
Mission time 20 y (This value is dependent on the number of switching cycles and the switching current.)

In combination with Read head CMS-R-AXD-03V, CMS-R-AXF-03V, CMS-R-AXD-05V, CMS-R-AXD-SC, CMS-R-AXF-SC, CMS-R-AXF-05V and Actuator CMS-M-AB

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.18 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Assured operating distance Sao
With center offset m=0 min.6 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)

In combination with Read head CMS-R-AXE-03V, CMS-R-AXG-03V, CMS-R-AXE-05V, CMS-R-AXG-05V, CMS-R-AXE-SC, CMS-R-AXG-SC, CMS-R-AXE-01V, CMS-R-AXE-05P and Actuator CMS-M-AG

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.34 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Assured operating distance Sao
With center offset m=0 min.18 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)

In combination with Read head CMS-R-BXO-05V, CMS-R-BXP-05V, CMS-R-BXO-SC, CMS-R-BXP-SC, CMS-R-BXO-05P and Actuator CMS-M-BH

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.17 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Assured operating distance Sao
With center offset m=0 min.6 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)

In combination with Read head CMS-R-CXA-03V, CMS-R-CXB-03V, CMS-R-CXA-05V, CMS-R-CXB-05V and Actuator CMS-M-CA

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.16 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Assured operating distance Sao
With center offset m=0 min.7 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)

In combination with Read head CMS-R-EXL-03V, CMS-R-EXM-03V, CMS-R-EXN-03V, CMS-R-EXL-05V and Actuator CMS-M-EF

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.16 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Assured operating distance Sao
With center offset m=0 min.7 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)

In combination with Read head CMS-R-AXR-05VL and Actuator CMS-M-AI

Actuating range

Center offset
At s=3 mm read distance 2,5 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Assured release distance Sar max.23 mm (The assured switch-off distance s<sub>ar</sub> corresponds to the reset distance.)
Contact status indication with LED max.15 mm (For approach direction X Y of the actuator in the operating distance, the switching sequence is as follows: as per the safety contacts (color code BN,BK,BU,WH) and the contact status indication (color code PK,GY). The approach direction Z is not included in this switching sequence. The distance apply only in approach direction X, center offset m = 0.)
Assured operating distance Sao
With center offset m=0 min.9 mm (Figure only applies if there is no ferromagnetic material in the vicinity of the read head and the actuator.)
Contact status indication with LED min.7 mm (For approach direction X Y of the actuator in the operating distance, the switching sequence is as follows: as per the safety contacts (color code BN,BK,BU,WH) and the contact status indication (color code PK,GY). The approach direction Z is not included in this switching sequence. The distance apply only in approach direction X, center offset m = 0.)
