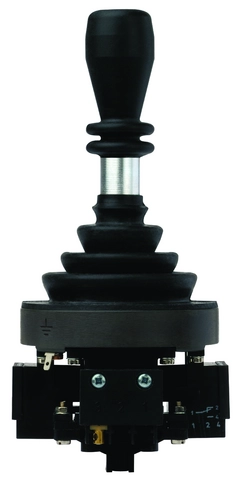

KCB4E4E4E4E5678DV0WZ (Order no. 075358)

Series KC...

  • Screw terminal
  • 8 actuating directions
  • Pushbutton in handle (D)
  • Interlocking in switch position 0 (V0)
  • Bellows for panel mounting (W)
  • Center-position switch (Z)
KCB4E4E4E4E5678DV0WZ (Order no. 075358)

Description

Switching function
Switching function

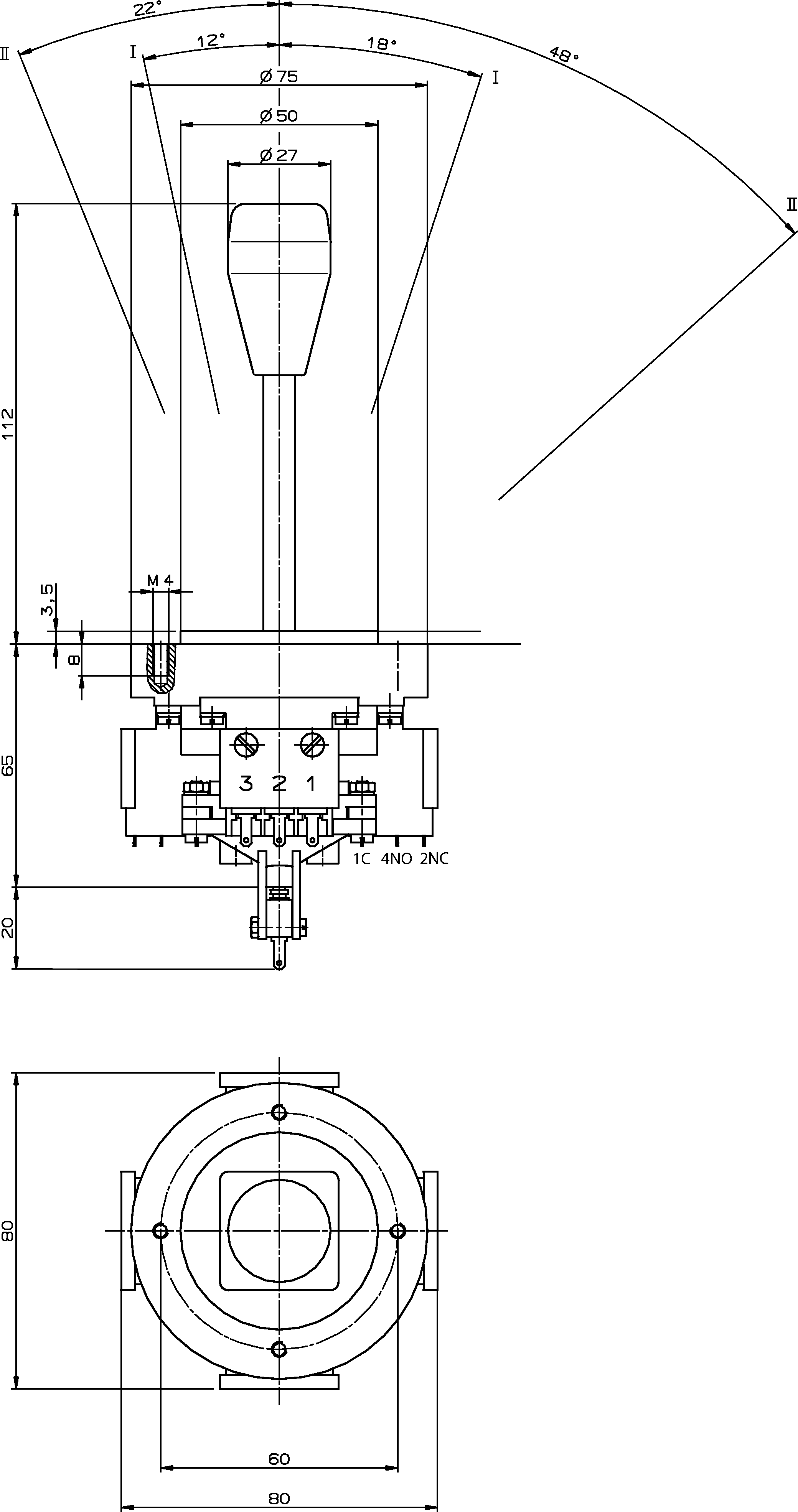

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

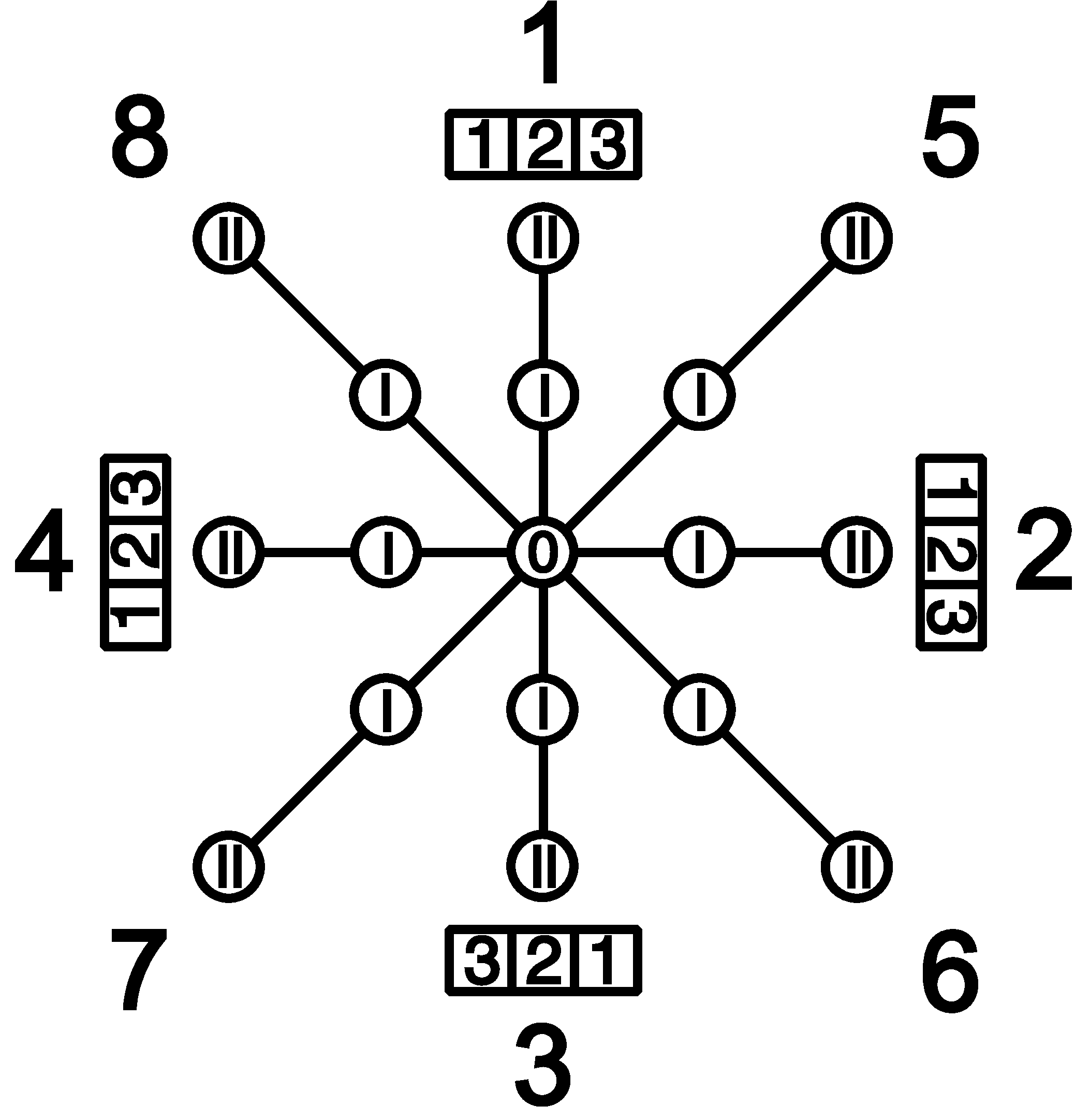

Switching positions
Switching positions
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

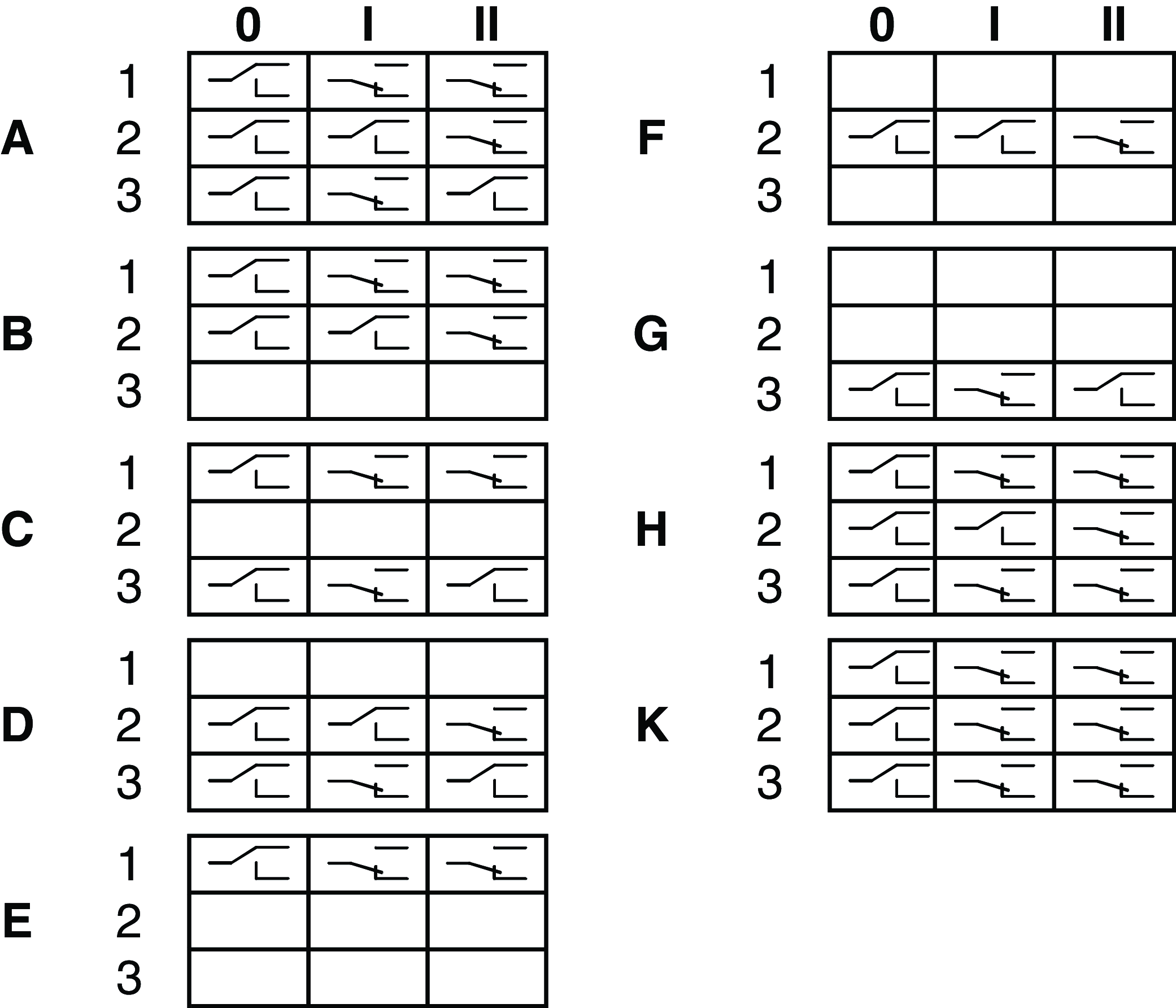

Functional drawings

Functional drawings

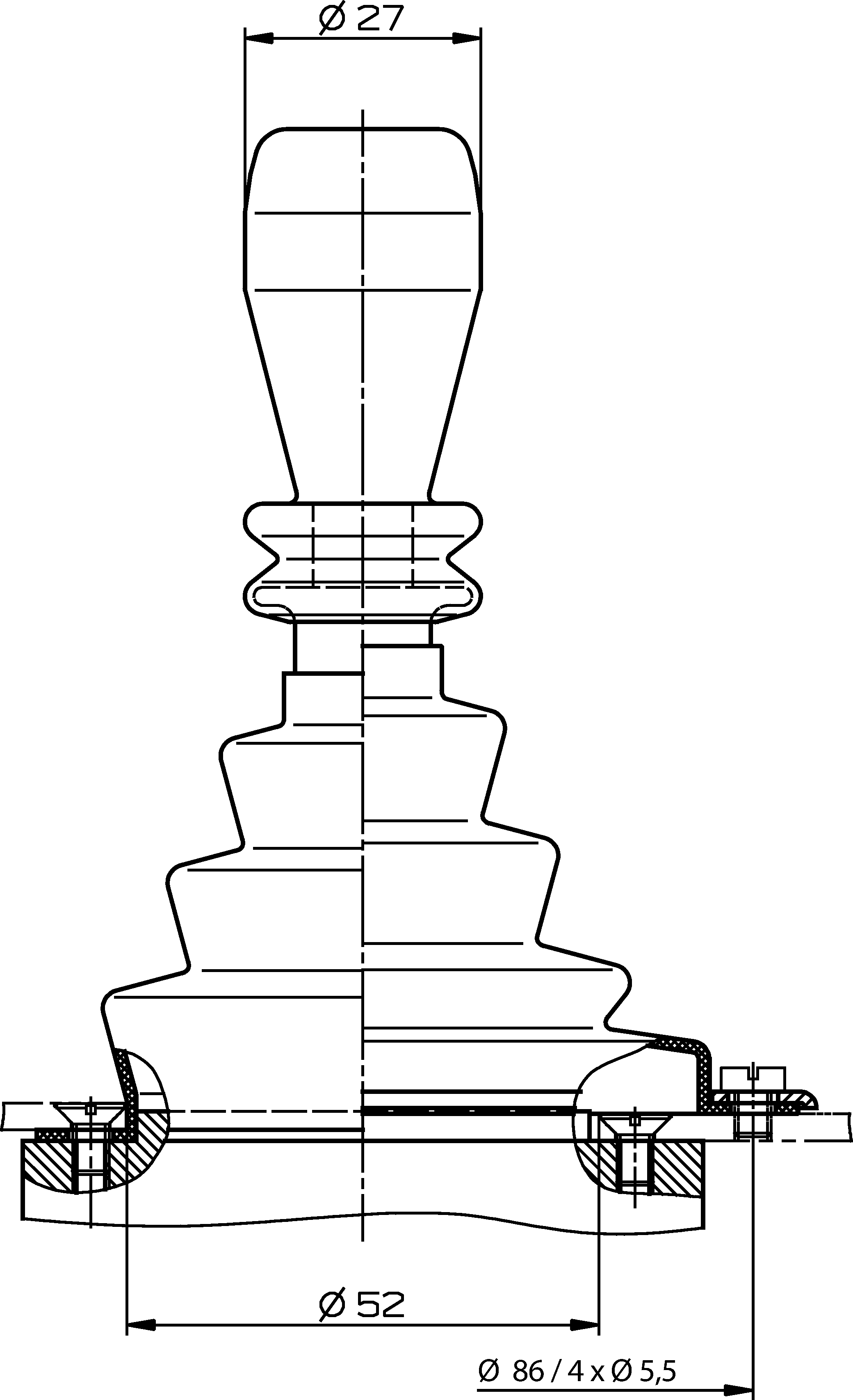

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

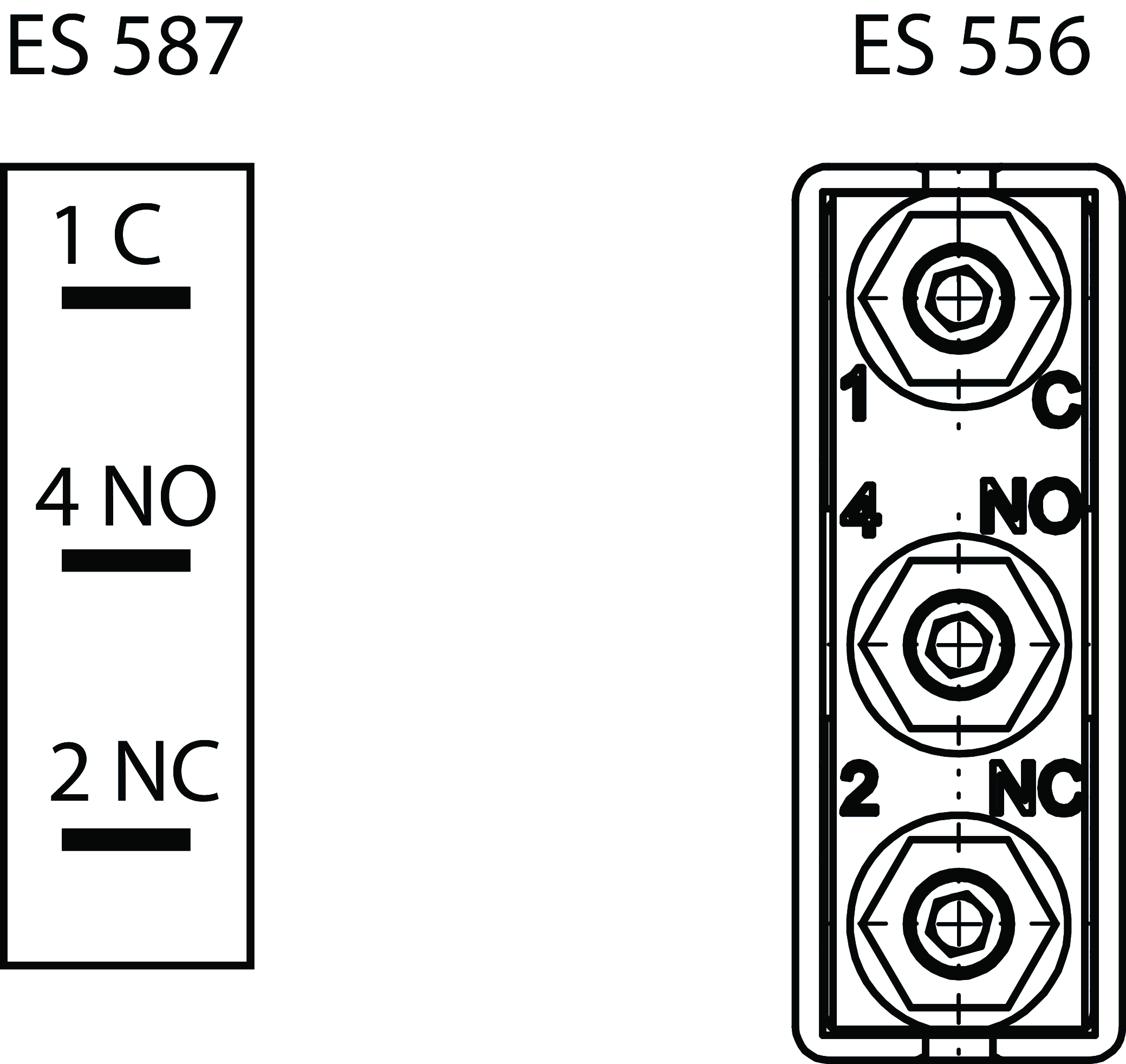

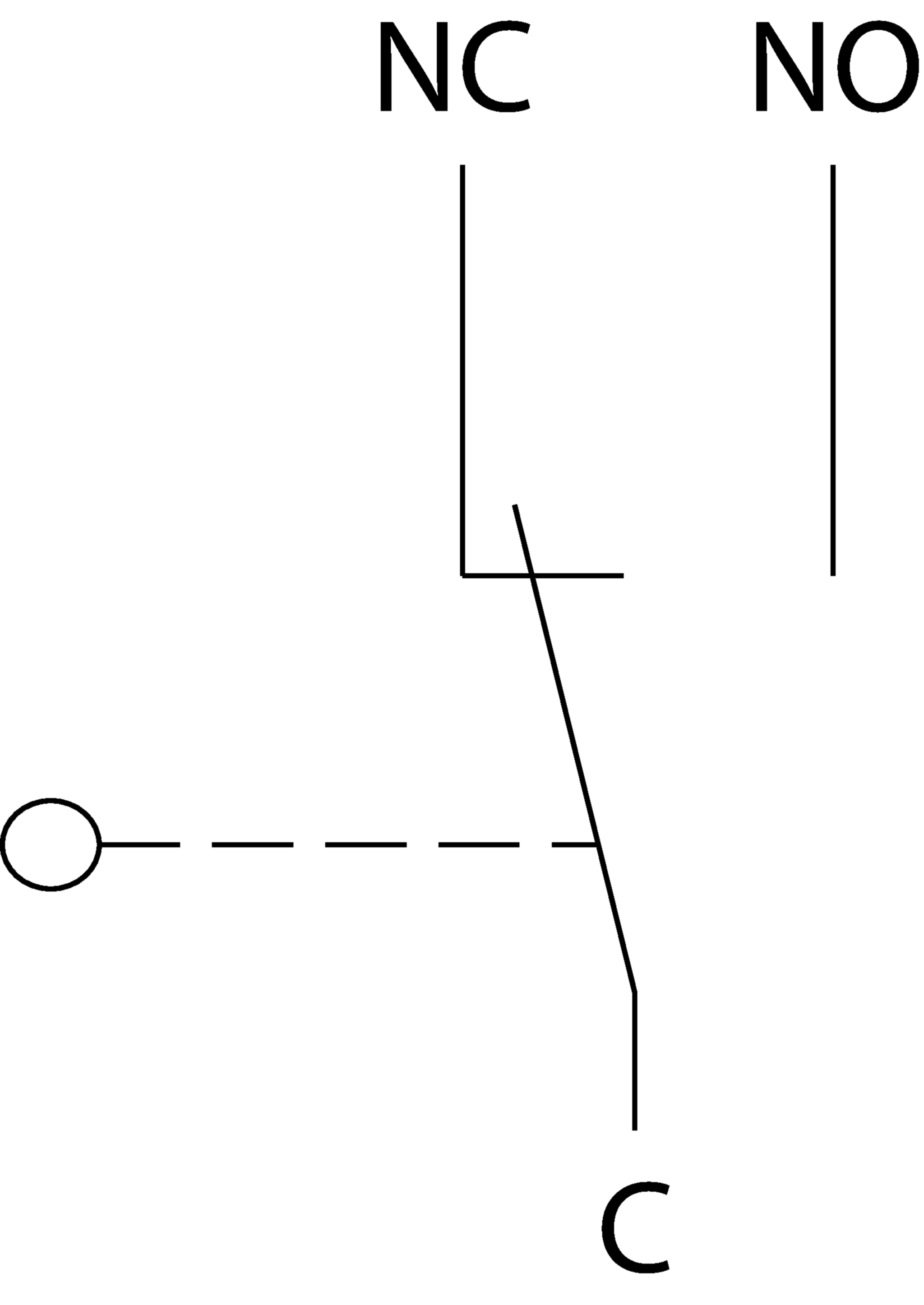

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

DNV-GL_TAA000007ECCC_2020980305000539_CQC2008010305306205

Electrical connection values

Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 230 V 4 A
DC-13 24 V 2 A
Short circuit protection according to IEC 60269-1 T6/F10
Switching voltage min. 10 V
Switching current
(at 24 V) min. 12 mA
Pushbutton in handle
Utilization category
DC-13 24 V 1 A
AC-15 230 V 2 A
Switching voltage min. 10 V
Switching current
(at 24 V) min. 12 mA

Mechanical values and environment

Connection type Screw terminal
Number of monitoring contacts max. 5 4 + 1 (4 directions x 1 switching element and 1x Z contact)
Actuating directions max. 8 max. 3 positions (0-1-2) possible per type and direction
Mechanical life 1 x 10⁶
Center-position switch 1 changeover contact (NO contact closed, NC contact open in neutral position (not actuated))
Mounting type Panel cut-out depending on version X or W (see panel cut-out drawing)
Switching principle Changeover contact C, IEC 947-5-1 (Snap-action contact element, design ES556)
Degree of protection
on the front with bellows IP65 (Version W)
Ambient temperature -25 ... +65 °C
Material
Housing thermoplastic/aluminum
Switching lever galvanized steel
Bellows elastomer, black (Low PAH)
Contact Silver alloy
Pushbutton in handle
Actuating force max. 8 N
Mechanical life
(at 0.7A / 250V AC) 0.05 x 10⁶
Switching principle 1 contact

Miscellaneous

Additional feature
Bellows W for panel mounting
Pushbutton in handle
Interlocking in center position

Ordering data

Ordernumber 075358
Item designation KCB4E4E4E4E5678DV0WZ
Gross weight 0,541kg
Customs tariff number 85365019000
ECLASS 27-37-14-04 Control switch, joystick
