Series KC...
- Tab connector 2.8 x 0.5
- 2 actuating directions
- Illuminated pushbutton in handle (D)
- Bellows for panel mounting (W)
Description

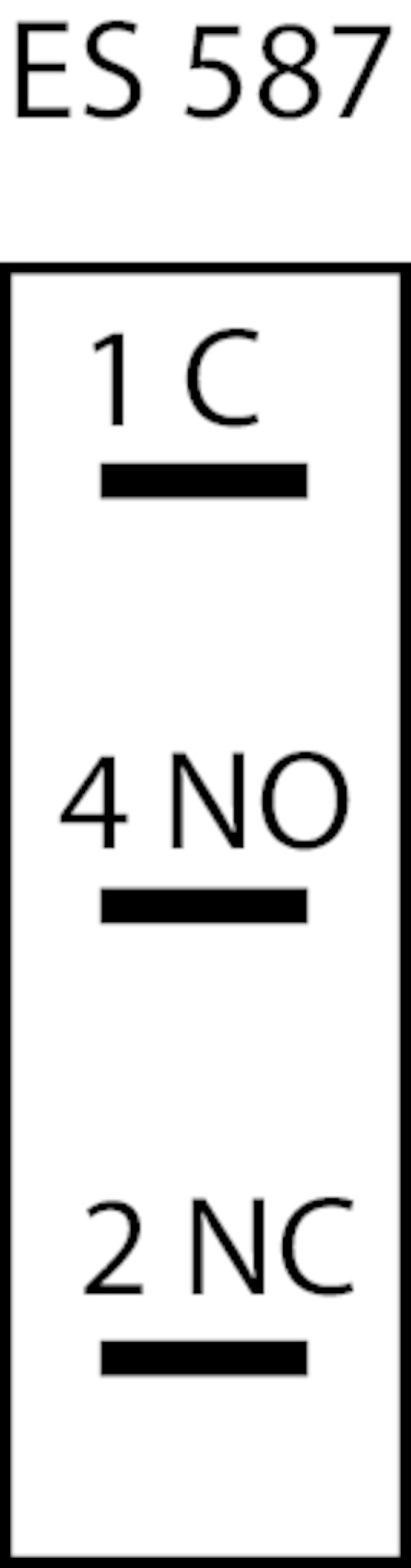

Functional drawings
Functional drawings

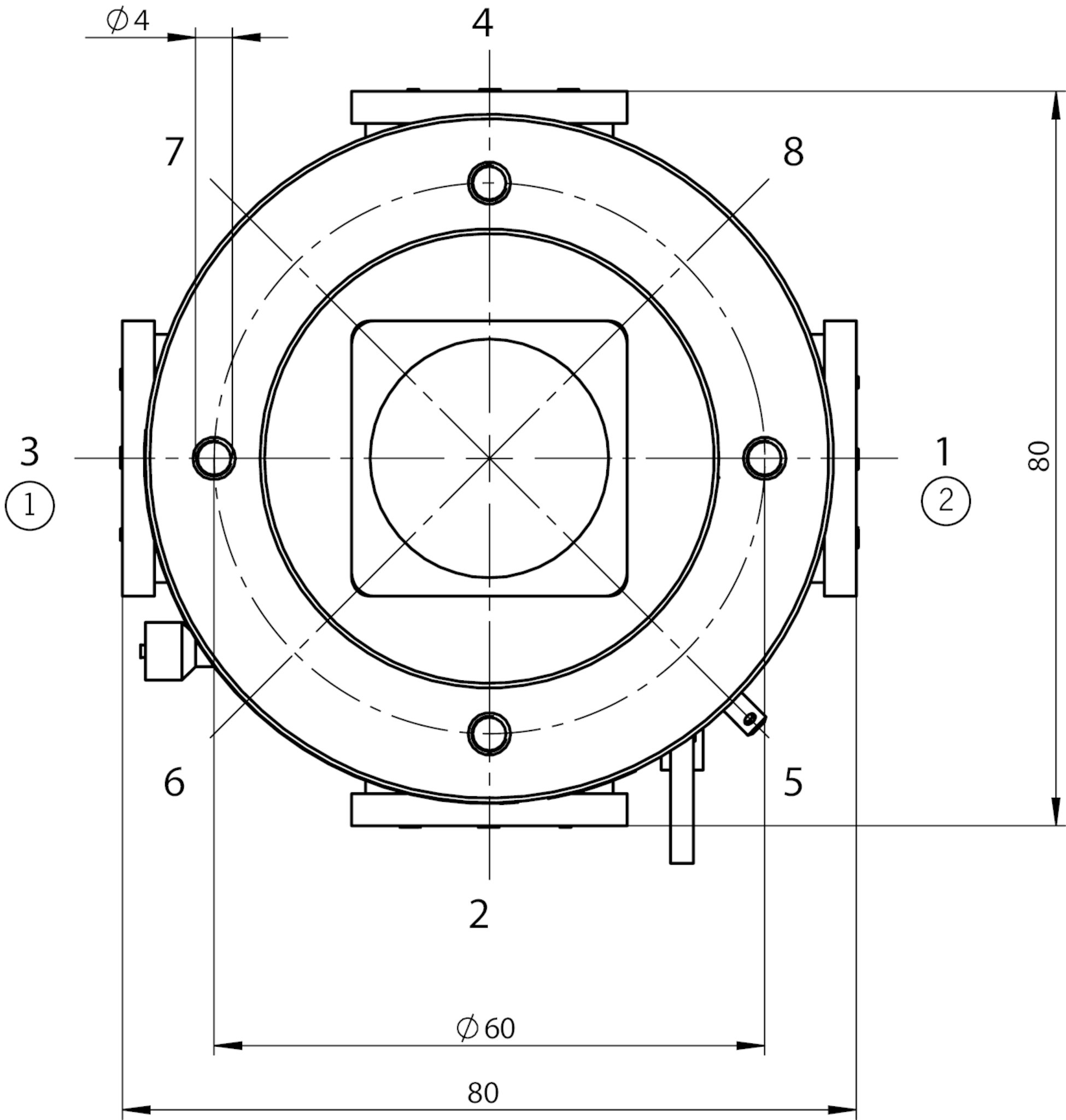

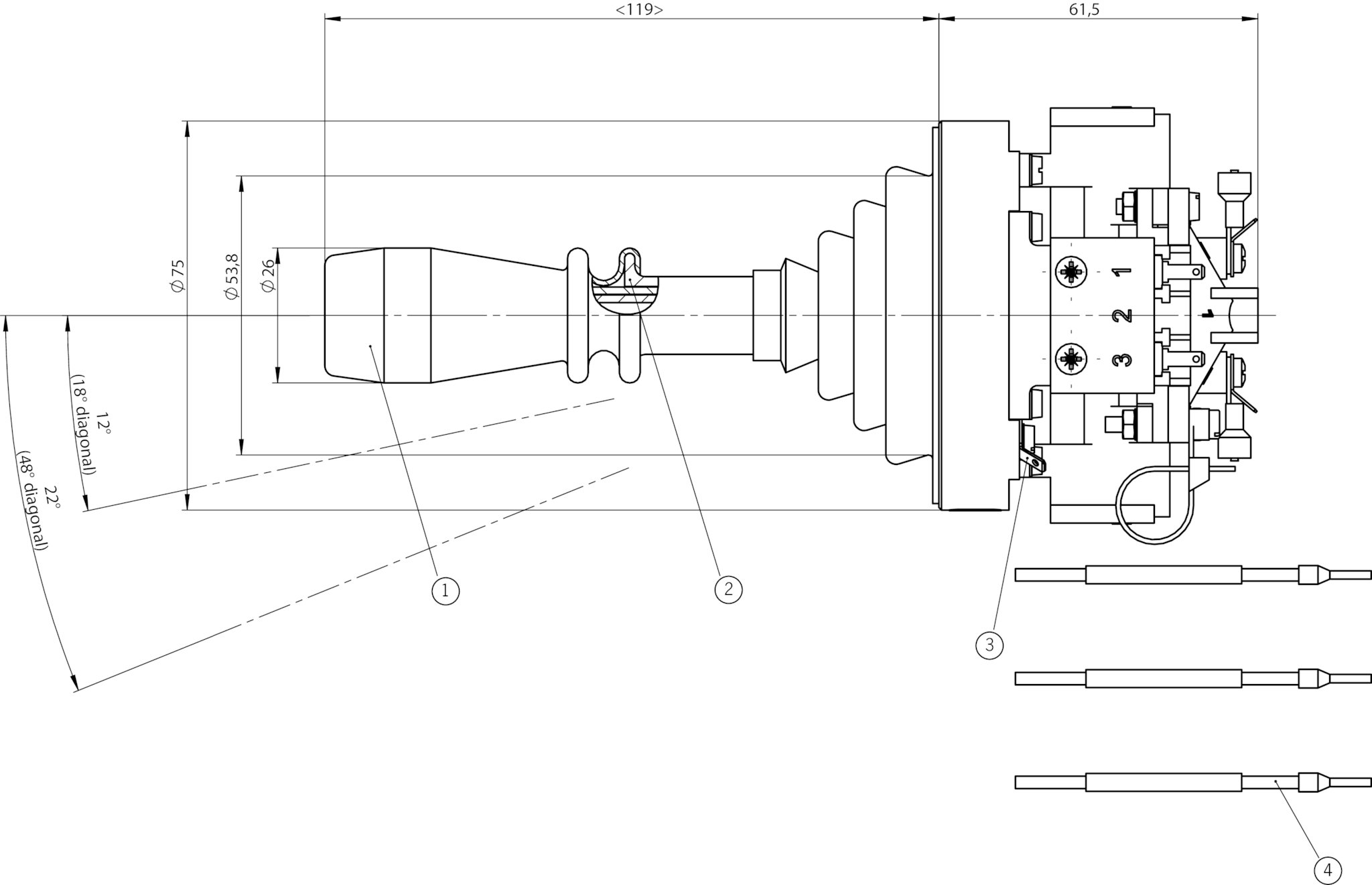

Dimensional drawings
Dimensional drawings
| 1 | Pushbutton “D” |
| 2 | Locking “V” |
| 3 | Function earth |
| 4 | 8 flexes 0.75 mm² with cable end sleeves 600 long |

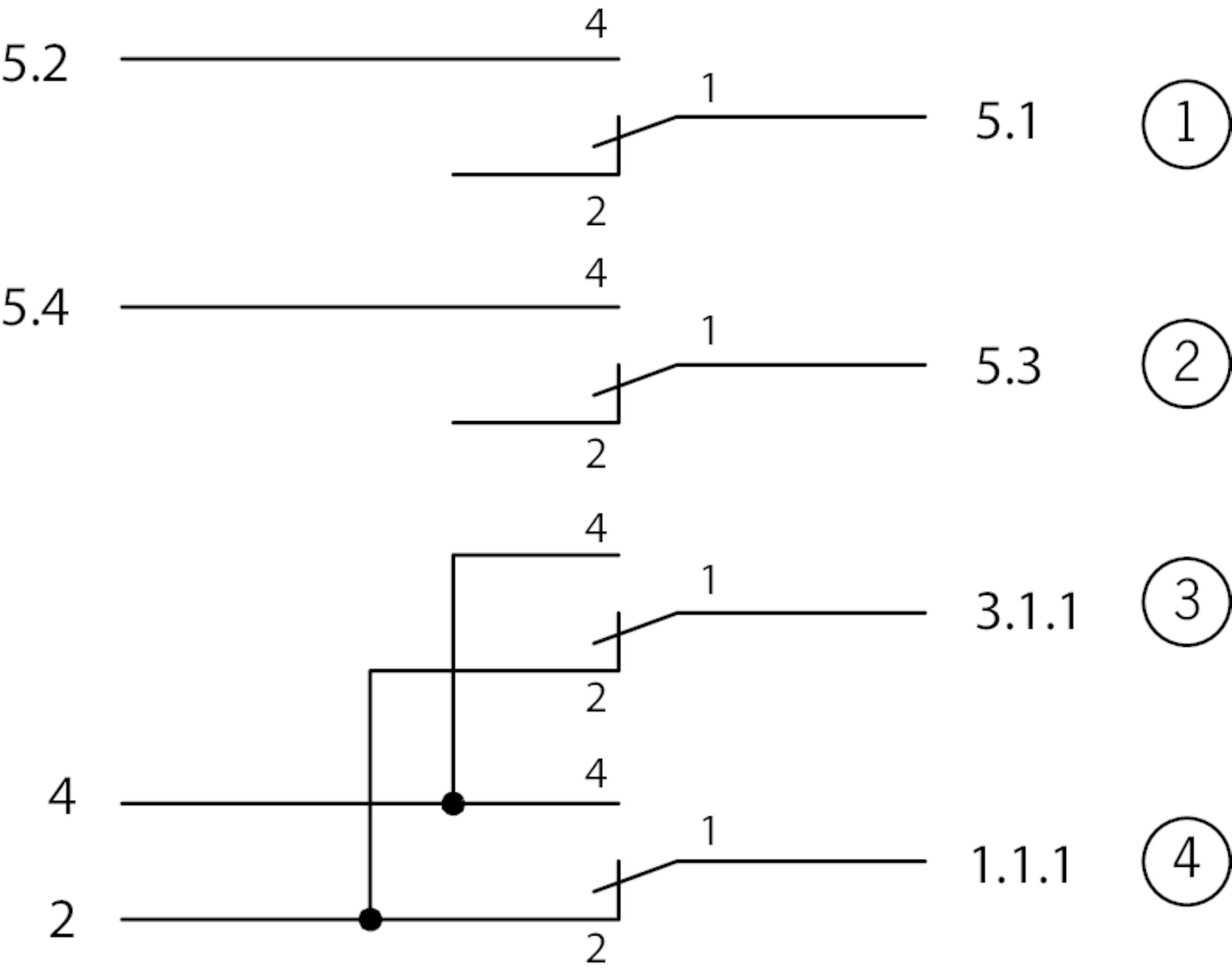

Connection examples
Connection examples
| 1 | Pushbutton “D” |
| 2 | Pushbutton “D” |
| 3 | Counterclockwise (3/chamber 1) |
| 4 | Counterclockwise (1/chamber 1) |
Connection examples
Connection examples
Technical data
Approvals
Electrical connection values
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 230 V 4 A |
| DC-13 | 24 V 2 A |
| Short circuit protection according to IEC 60269-1 | T6/F10 |
| Switching voltage | min. 10 V |
| Switching current | |
| (at 24 V) | min. 12 mA |
| Pushbutton in handle | |
| Utilization category | |
| DC-13 | 24 V 1 A |
| AC-15 | 230 V 2 A |
| Switching voltage | min. 10 V |
| Switching current | |
| (at 5 V) | min. 3 mA |
Mechanical values and environment
| Connection type | Tab connector 2.8 x 0.5 IEC 760 |
| Number of monitoring contacts | max. 4 4 (2 directions x 2 switching elements) |
| Actuating directions | max. 2 max. 3 positions (0-1-2) possible per type and direction |
| Mechanical life | 1 x 10⁶ |
| Mounting type | Panel cut-out depending on version X or W (see panel cut-out drawing) |
| Switching principle | Changeover contact C, IEC 947-5-1 (Snap-action contact element, design ES556) |
| Degree of protection | |
| on the front with bellows | IP65 (Version W) |
| Ambient temperature | -25 ... +65 °C |
| Material | |
| Switching lever galvanized steel | |
| Contact | Silver alloy |
| Bellows elastomer, black (Low PAH) | |
| Housing thermoplastic/aluminum | |
| Pushbutton in handle | |
| Switching principle | 2 contact |
Miscellaneous
| P number | |
| P188 | (Illuminated pushbutton from Idec, with 2 NO contacts, wiring with 600 mm long flexible wires with cable end sleeves) |
| Additional feature | |
| Interlocking in center position | |
| Pushbutton in handle | |
| Bellows W for panel mounting |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001504
Version
Language
Size
0,1 MB
Other Documents
Ordering data
| Ordernumber | 105727 |
| Item designation | KCA4C004C000000DV0WP188V1 |
| Gross weight | 0,62kg |
| Customs tariff number | 85365019000 |
| ECLASS | 27-37-14-04 Control switch, joystick |
