HWB100T100G05/V5 (Order no. 072974)

Handwheel HWB

  • 100 detents per revolution
  • Mechanical detent mechanism
  • 100 pulses per revolution
  • 3-point fixing
HWB100T100G05/V5 (Order no. 072974)

Description

Notes

  • Output G05 suitable for Fanuc control systems
  • Packaging unit 5 pieces

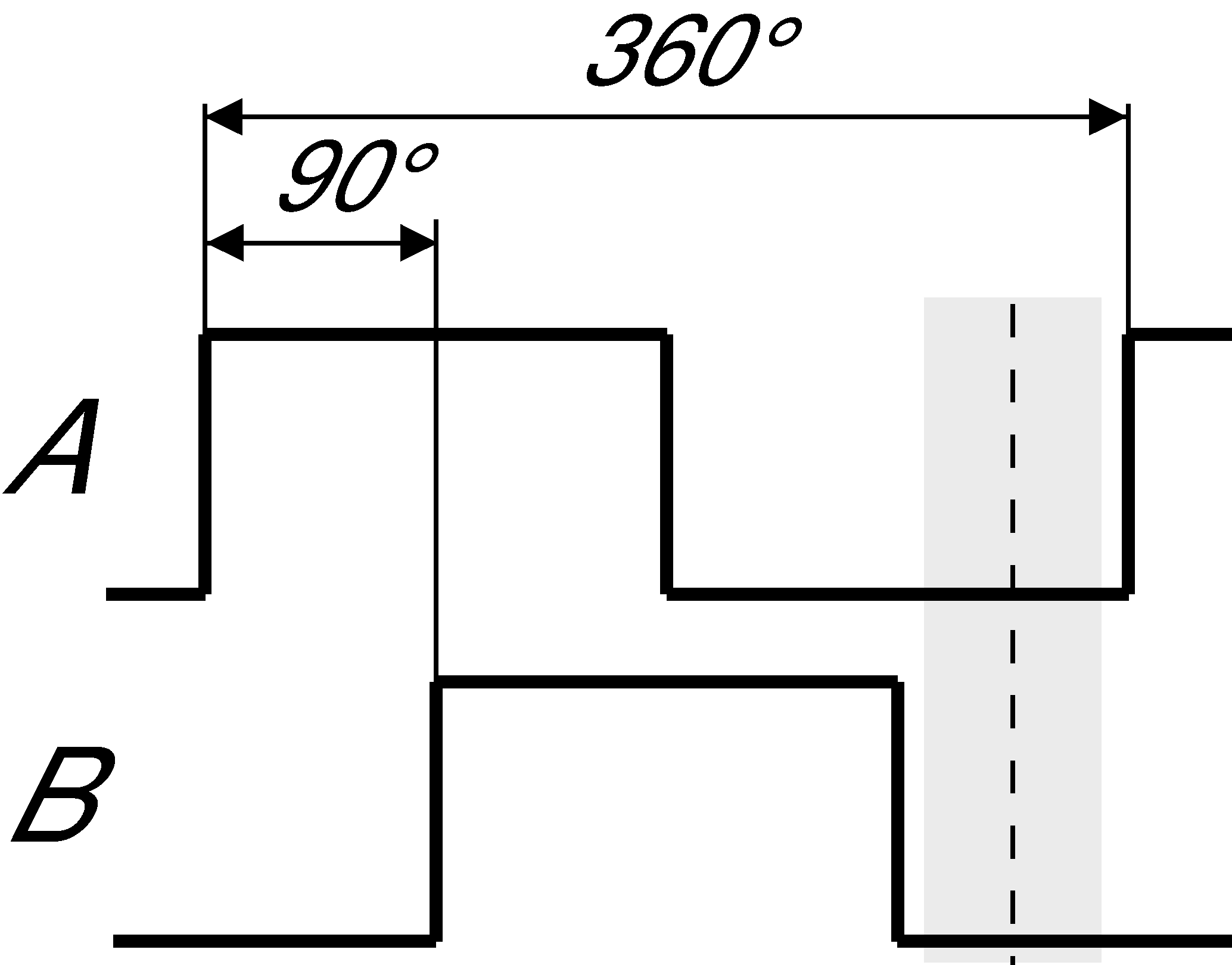

Pulse diagram
Pulse diagram
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

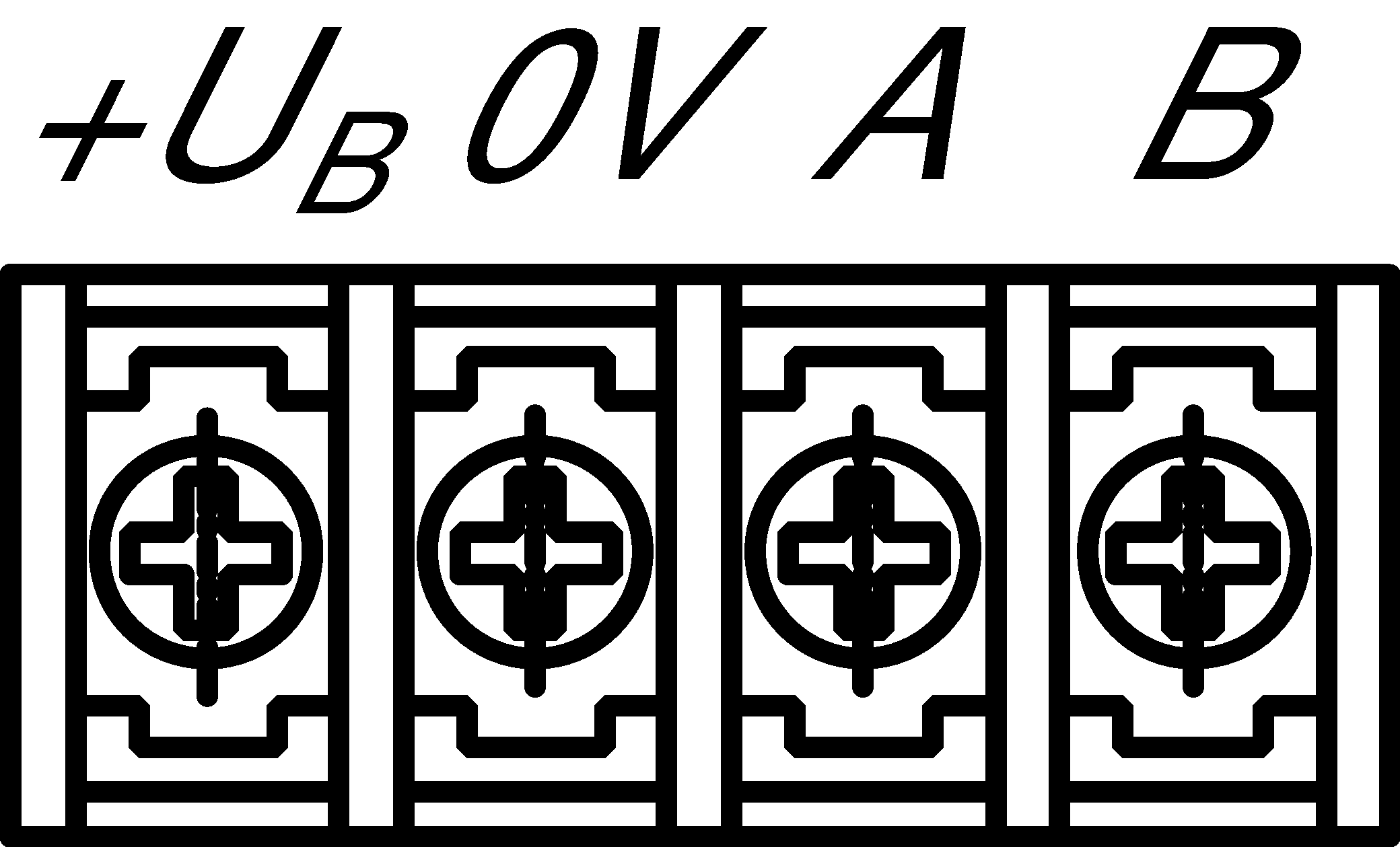

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20

Electrical connection values

Output type Push-pull
Output voltage
HIGH(1) min. 4.0 V DC at 20 mA
LOW(0) max. 0.5 V DC at 20 mA
Operating voltage DC 5 V DC -10% ... +10%
Pulses per revolution 2x100
Current consumption
without load max. 80 mA

Mechanical values and environment

Connection type Screw terminals, 4-pin
Atmospheric humidity
(condensation not permissible) 80 % rH
Mechanical life 1 x 10⁶
Detent positions per revolution 100
Degree of protection
according to NEMA 250-12 (on the front)
IP65 (on the front)
Ambient temperature 0 ... +50 °C
Material Metal

Miscellaneous

Detent mechanism mechanical
Additional feature
Control panel thickness Max. 3 mm

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 072974
Item designation HWB100T100G05/V5
Gross weight 0,872kg
Customs tariff number 85365019000
ECLASS 27-24-23-07 Command-, control-, signal appliance
