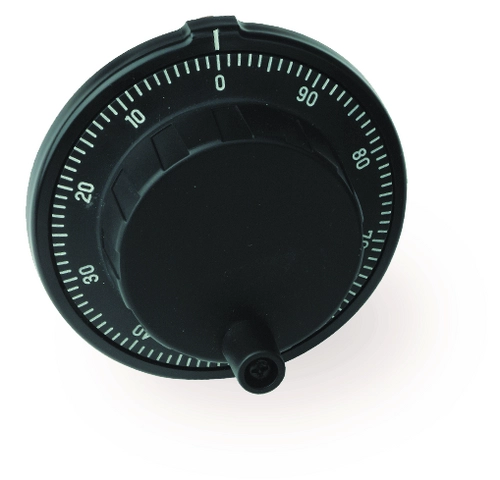

HWB100T100A05/V5 (Order no. 072973)
Choose content
Handwheel HWB
- 100 detents per revolution
- Mechanical detent mechanism
- 100 pulses per revolution
- 3-point fixing
Description
Notes
- Output A05 suitable for Siemens control systems with RS422 input
- Packaging unit 5 pieces

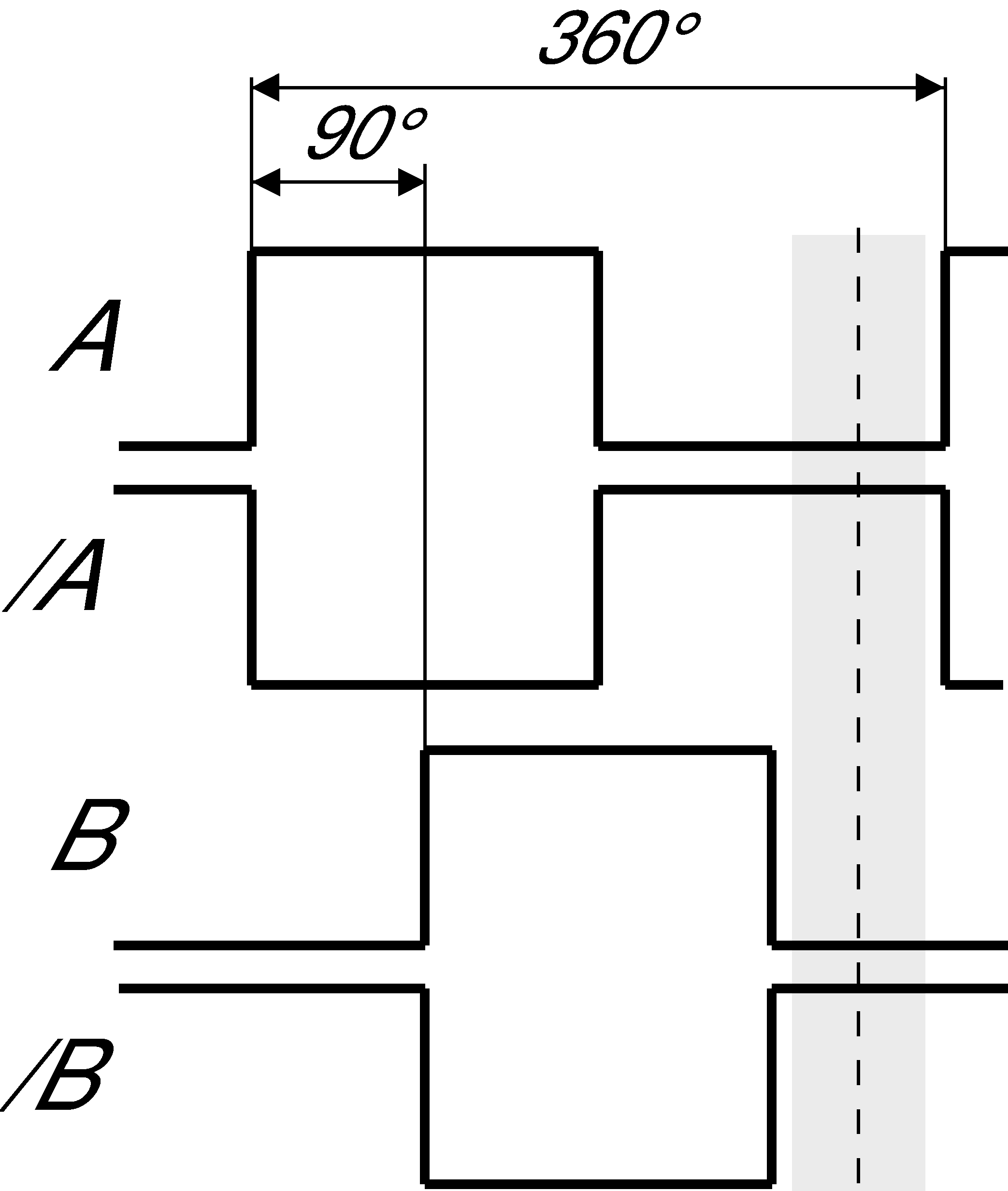

Functional drawings

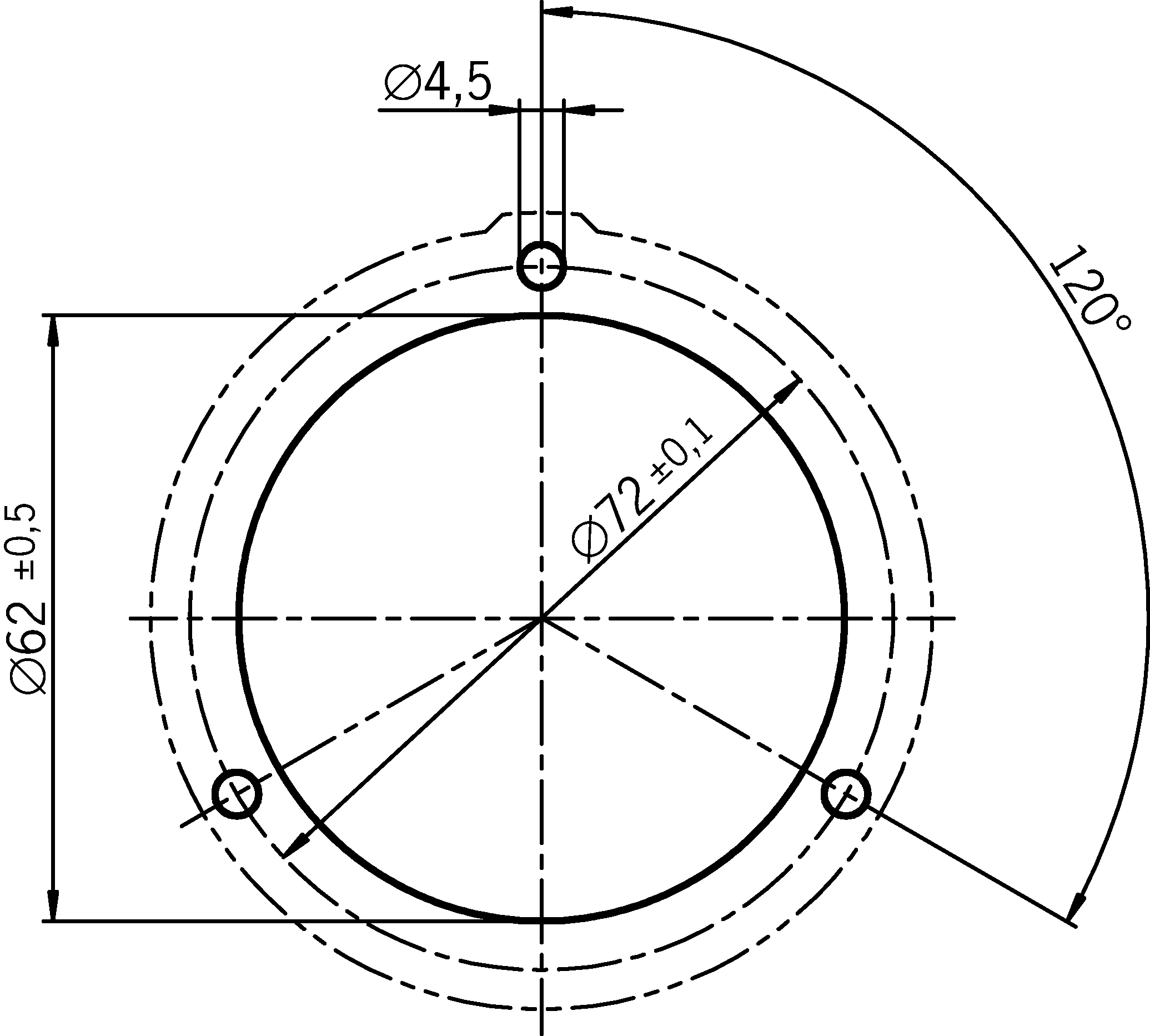

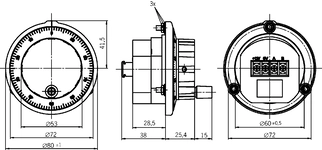

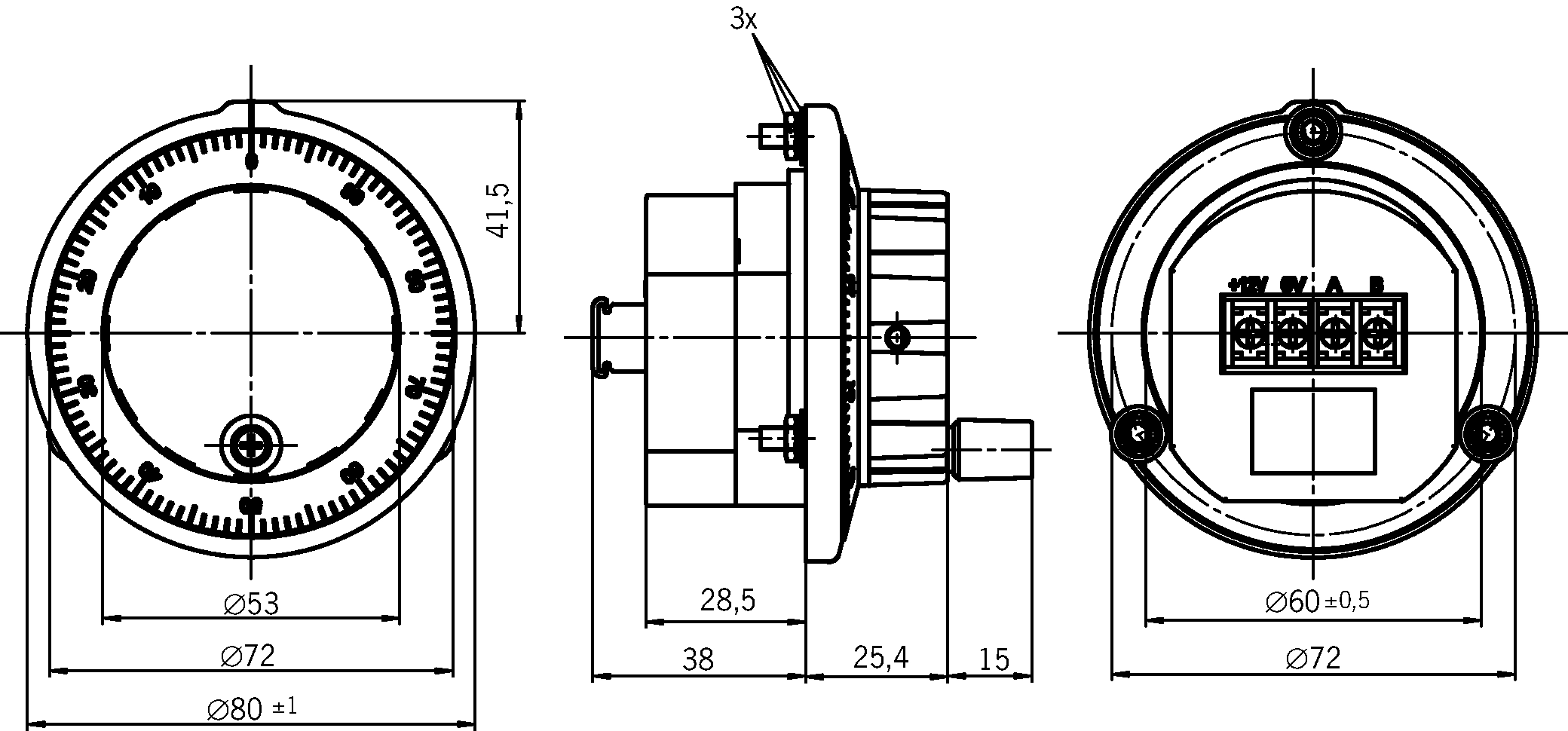

Dimensional drawings
Dimensional drawings

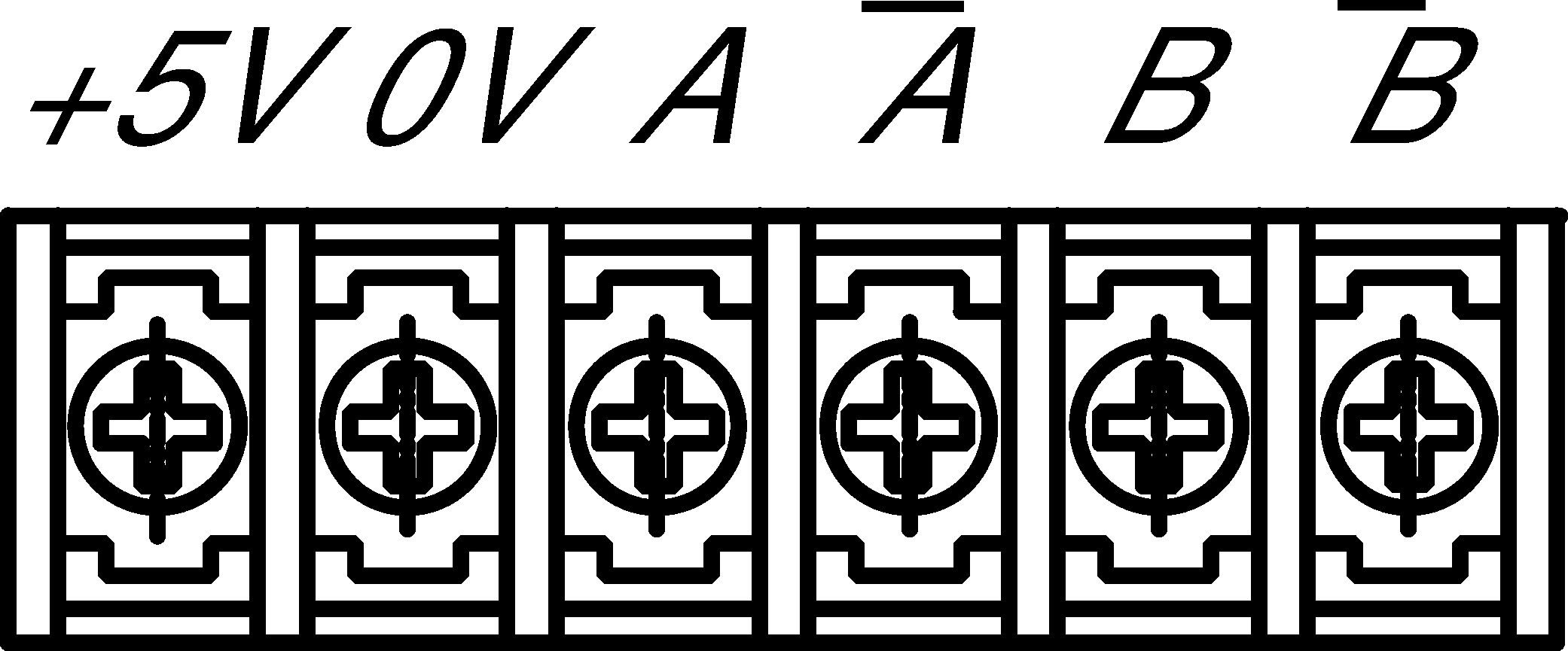

Connection examples
Technical data
Approvals
Electrical connection values
| Output type | RS422 |
| Output voltage | in accordance with RS422A |
| Operating voltage DC | 5 V DC -10% ... +10% |
| Pulses per revolution | 2x100 |
| Current consumption | |
| without load | max. 80 mA |
Mechanical values and environment
| Connection type | Screw terminals, 6-pin |
| Storage temperature | -25 ... 70 °C |
| Atmospheric humidity | |
| (condensation not permissible) | 80 % rH |
| Mechanical life | 1 x 10⁶ |
| Detent positions per revolution | 100 |
| Degree of protection | |
| IP65 (in the installed state) | |
| according to NEMA | 250-12 (in the installed state) |
| Ambient temperature | 0 ... 50 °C |
| Material | Metal |
Miscellaneous
| Detent mechanism | mechanical |
| Additional feature | |
| Control panel thickness | Max. 3 mm |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 2,2 MB)
Single Documents
Other Documents
CAD data
Ordering data
| Ordernumber | 072973 |
| Item designation | HWB100T100A05/V5 |
| Gross weight | 0,872kg |
| Customs tariff number | 85365019000 |
| ECLASS | 27-24-23-07 Command-, control-, signal appliance |
