HKD100V100A05 (Order no. 057036)

Handwheel HKD

  • 100 detents per revolution
  • Wear-free magnetic detent mechanism
  • 100 pulses per revolution
  • Installation in operator panels and EUCHNER hand-held pendant stations series HBL
HKD100V100A05 (Order no. 057036)

Description

Notes

  • Output A05 suitable for Siemens control systems with RS422 input
Pulse diagram
Pulse diagram
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings

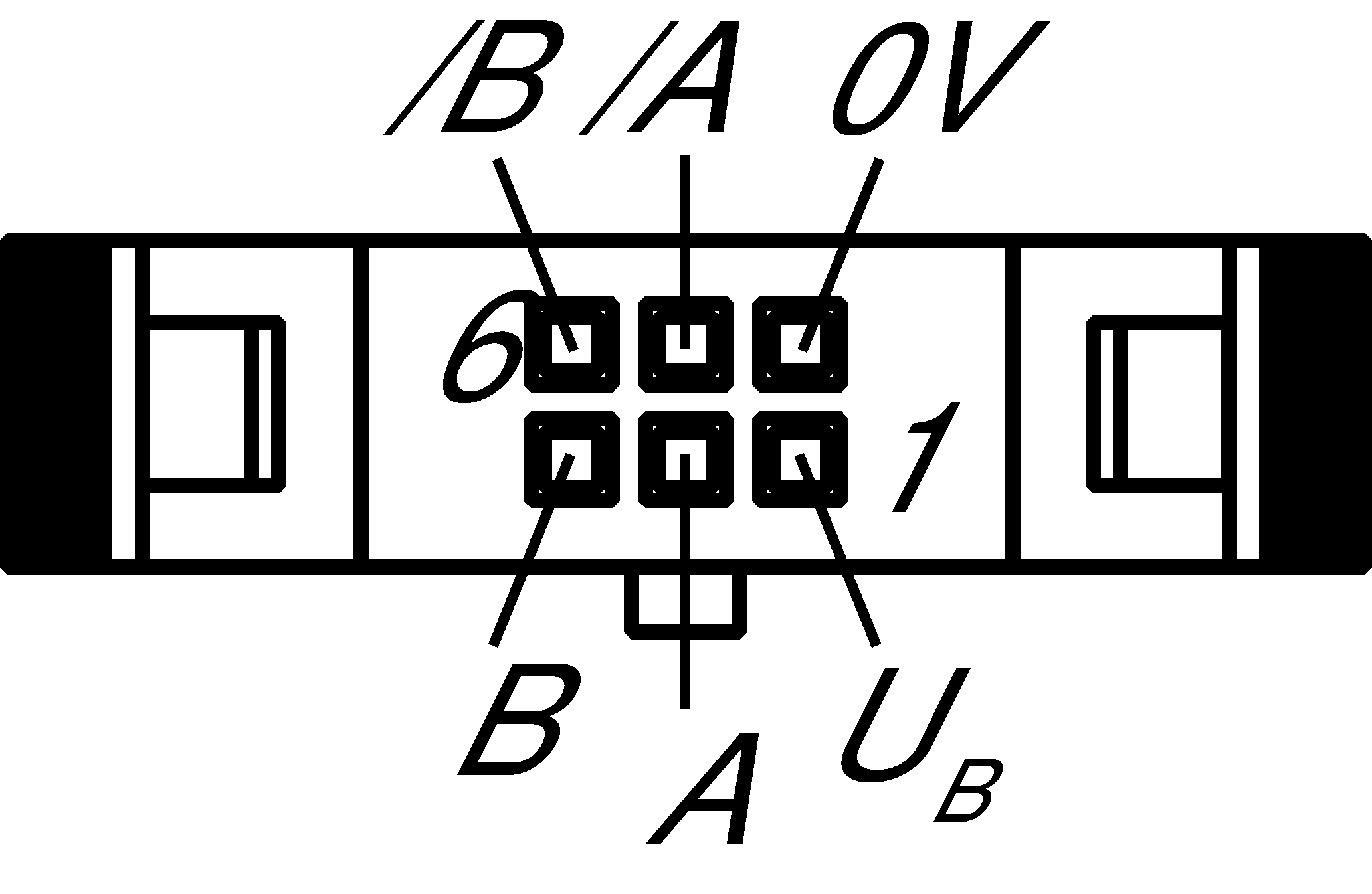

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E218262_2/1EAC_RU C-DE.MO05.B.00972/20

Electrical connection values

Output type RS422
Output voltage in accordance with RS422A
Operating voltage DC 5 V DC -5% ... +5%
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Pulses per revolution 2x100
Current consumption
without load max. 80 mA

Mechanical values and environment

Connection type Ribbon cable with socket connector, DIN 41651, 6-pin (Length approx. 250 mm)
Atmospheric humidity
(condensation not permissible) 80 % rH
Detent positions per revolution 100
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (When installed)
according to NEMA 250-12 (When installed)
Ambient temperature 0 ... +70 °C
Material Aluminum

Miscellaneous

Detent mechanism Magnetic

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 057036
Item designation HKD100V100A05
Gross weight 0,345kg
Customs tariff number 85365019000
ECLASS 27-24-23-07 Command-, control-, signal appliance
