HKB100S7A12 (Order no. 105135)

Handwheel HKB

  • 100 detents per revolution
  • Wear-free magnetic detent mechanism
  • 100 pulses per revolution
  • Ideal for flat machine panels and small, light hand-held pendant stations like the housing HBA/HBM
HKB100S7A12 (Order no. 105135)

Description

Dimension drawing
Dimension drawing

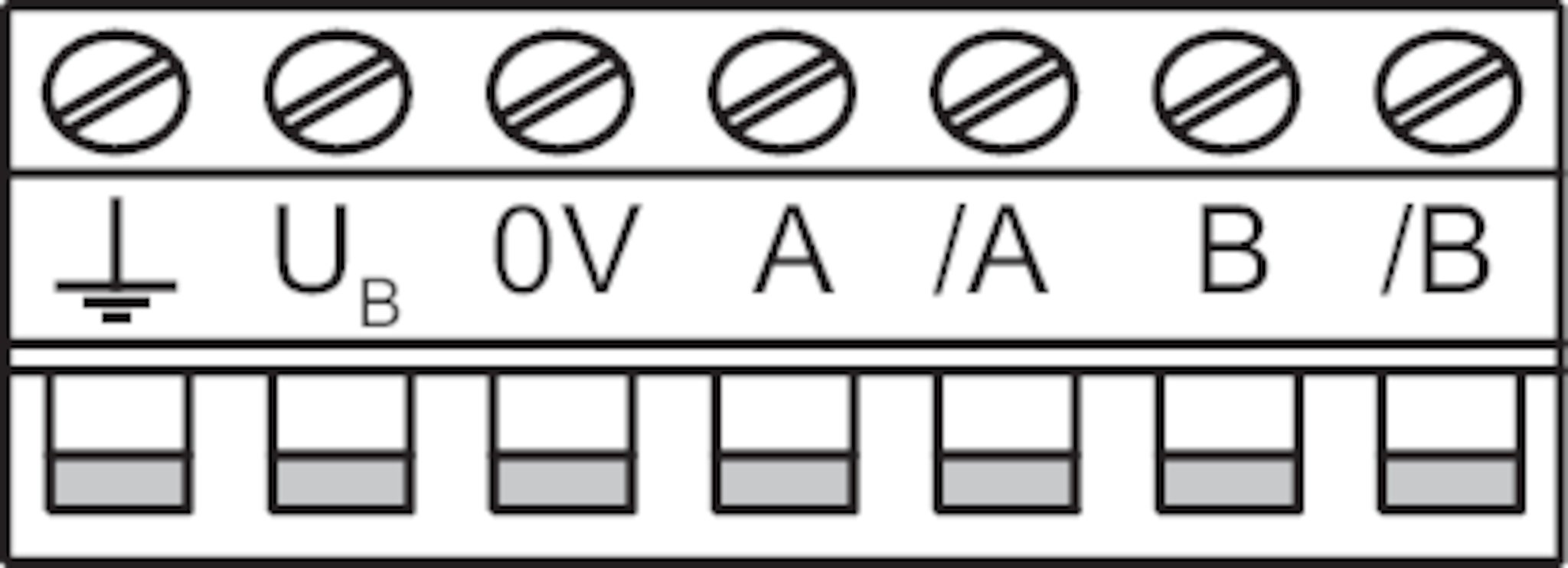

Wiring diagram
Wiring diagram
Ausgangssignale
Ausgangssignale
Hand-held pendant stations and hand wheels

Dimension drawing

Dimension drawing

Wiring diagram

Wiring diagram

Ausgangssignale

Ausgangssignale

Technical data

Approvals

Zulassung EACRichtlinie CEZulassung c_UR_us Class 2

Mechanical values and environment

Shock and vibration resistance Acc. to EN 60068-2-27/-2-6
Material Aluminum
Weight
Net 0.095 (Without dial)
Ambient temperature 0 ... +50 °C
Atmospheric humidity
(condensation not permissible) 80 % rH
Degree of protection IP65 (On the front)
acc. to NEMA 250 250-12 (On the front)
Tightening torque max.0,25 Nm
Connection Screw terminal
Detent positions per revolution 100

Electrical connection ratings

Operating voltage DC 10 ... 30 V DC
Current consumption
Without load max.80 mA
EMC protection requirements
Acc. to CE EN 61000-6-2, EN 61000-6-4
Type of output RS422
Connection cross-section 0,08 ... 1,5 mm²
Connection cross-section, AWG 28 ... 16 AWG
Pulses per revolution 2x100
Output voltage In accordance with RS422A

Other

Detent mechanism Magnetic
