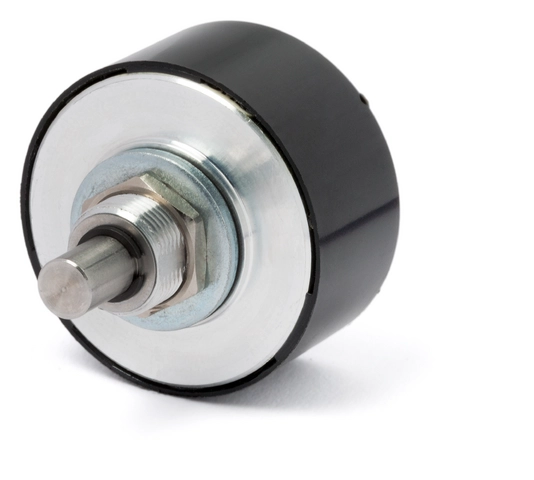

HKB025S7G12 (Order no. 105137)

Handwheel HKB

  • 100 detents per revolution
  • Wear-free magnetic detent mechanism
  • 25 pulses per revolution
  • Ideal for flat machine panels and small, light hand-held pendant stations like the housing HBA/HBM
HKB025S7G12 (Order no. 105137)

Description

Pulse diagram
Pulse diagram
Dimension drawing
Dimension drawing

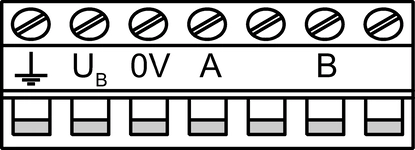

Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E218262_2/1

Electrical connection values

Connection cross section 0.08 ... 1.5 mm²
Connection cross section AWG 28 ... 16 AWG
Output type Push-pull
Output voltage
HIGH(1) min. 4.9 V DC at 0mA
HIGH(1) min. 3.9 V DC at 5mA
LOW(0) max. 1.3 V DC at 15mA
HIGH(1) min. 3.6 V DC at 20mA
Operating voltage DC 10 ... 30 V DC
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Pulses per revolution 2x25
Current consumption
without load max. 80 mA

Mechanical values and environment

Connection type Screw terminal, 7-pin
Tightening torque max. 0.25 Nm
Storage temperature -25 ... 70 °C
Atmospheric humidity
(condensation not permissible) 80 % rH
Detent positions per revolution 100
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (in the installed state)
according to NEMA 250-12 (in the installed state)
Ambient temperature 0 ... 50 °C
Material Aluminum

Miscellaneous

Detent mechanism Magnetic

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,0 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 105137
Item designation HKB025S7G12
Gross weight 0,16kg
Customs tariff number 85365019000
ECLASS 11.0 27-24-23-07 Command-, control-, signal appliance
