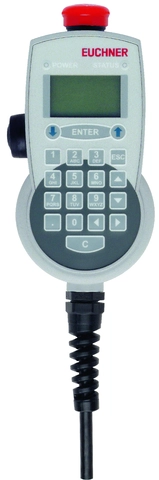

HBAS-094594 (Order no. 094594)

Hand-held pendant station HBAS, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, programmable pulse generator, LC display

  • Programmable pulse generator
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • Membrane keypad with 20 keys and 2 LEDs
  • LC display with LED background lighting, switchable 4-line/8-column or 8-line/16-column
  • RS422 interface, 3964R protocol
  • 1 enabling switch, 3-stage, 2 NO contacts
  • Coiled cable can be expanded to 3.5 m
HBAS-094594 (Order no. 094594)

Description

Notes

  • ActiveX module available for integrating the user’s application (for ActiveX capable user programs under MS Windows®)

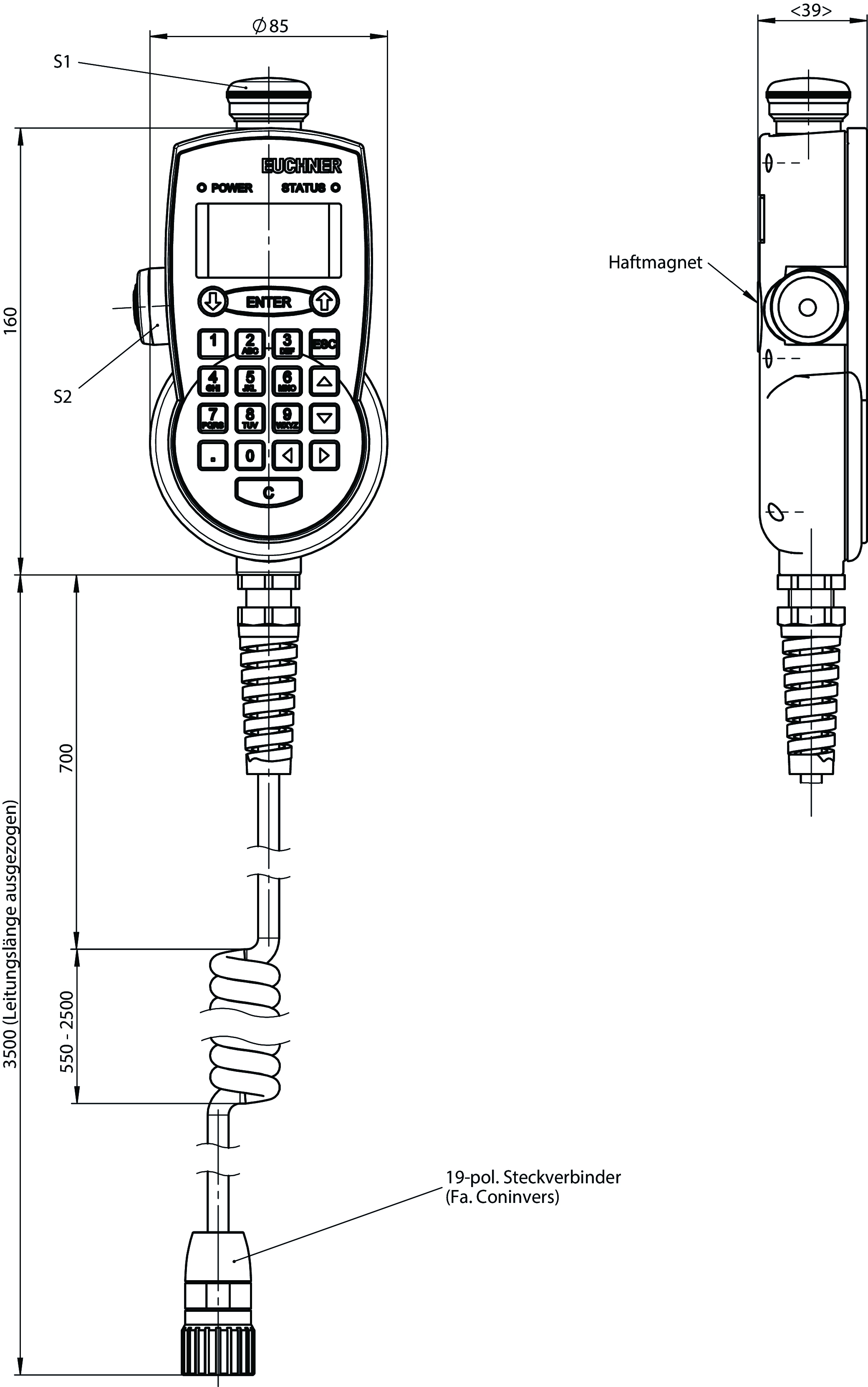

Dimension drawing
Dimension drawing

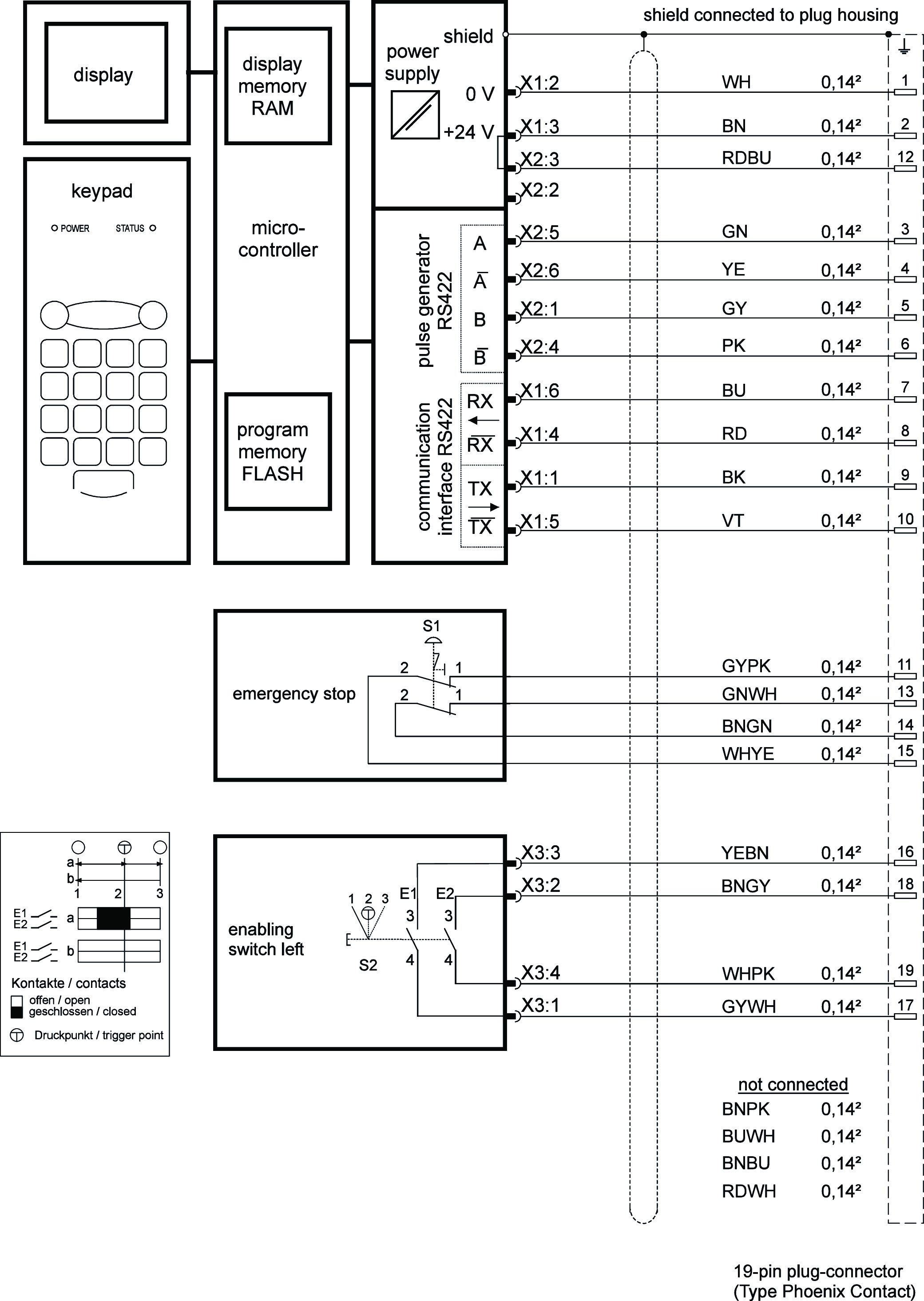

Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemExtrasColorDesignation1NumberLEDNote slide-in labelSlide-in labelVersionSwitching element
---1Display-
---1Pulse generator-
see data sheets--1Enabling switch, 3-stage2 NO contact each
see data sheets-red-black with yellow plate1Emergency stop2 pos. driven contacts
see data sheets--20Membrane keys-
see data sheets--2LED-

Electrical connection values

Connecting cable 23x0.14 mm²
Output type
Pulse generator RS422
Operating voltage DC 24 V DC -20% ... +20%
Utilization category
DC-13 Emergency stop 30 V / 3 A
Switching capacity (VA)
Enabling switch max. 0.25 VA
Switching voltage
Enabling switch max. AC/DC 42 V
Switching current
Enabling switch max. 100 mA
Current consumption max. 100 mA (without switched-on LEDs)

Mechanical values and environment

Connection type Plug connector (19-pin, metal version)
Cable length
coiled 3.5 m (extended)
Atmospheric humidity
Condensation not permissible max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
according to NEMA 250-12 (on the front)
IP65 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures
Additional feature
Firmware update (see manual)
Pulse generator (see manual)
Acoustic sensor (see manual)

Interface

Data protocol 3964R, 8 data bits, even parity
Data rate 9.6 ... 19.2 kbit/s (automatic adjustment during initialization)
Date interface RS422

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 094594
Item designation HBAS-094594
Gross weight 1,206kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
