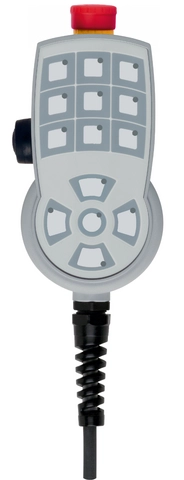

HBA-123208 (Order no. 123208)

Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, LEDs

  • Membrane keypad can be labeled as required using slide-in strips
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • LEDs white, color customer-specific using colored keypad membrane
  • 1 enabling switch, 3-stage, 2 NO contacts
  • Coiled cable, expandable to 6.5 m, 42-core, flying lead
HBA-123208 (Order no. 123208)

Description

Notes

  • For template for slide-in strips, see www.euchner.com (Service)
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Dimensional drawings

Dimensional drawings
1Cable length extended
2Exchangeable slide-in strips
3Spiral cable, 42-core
4Mounting magnet

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSlide-in labelVersionNote slide-in labelSwitching element
3Exchangeable slide-in strips
see data sheets-red-yellow1Emergency stop2 pos. driven contacts
see data sheets-white14LED-
see data sheets--14Membrane keys1 NO contact each
see data sheets--1Enabling switch, 3-stage2 NO contacts

Electrical connection values

Connecting cable 42x0.14
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
LED power supply -10% ... 24V ... +10% V DC
Display/control element
Utilization category
DC-13 Emergency stop 30 V DC / 1 A
Switching capacity (VA)
Membrane keypad max. 1 VA
Enabling switch max. 0.25 VA
Switching voltage
Enabling switch max. AC/DC 42 V
Membrane keypad max. AC 25 V
Membrane keypad max. DC 42 V
Switching current
Membrane keypad max. 100 mA
Enabling switch max. 100 mA

Mechanical values and environment

Connection type flying lead
Cable length
coiled 6.5 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (on the front)
according to Nema 205-12 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Emergency stop
B10D 0.1 x 10⁶

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 123208
Item designation HBA-123208
Gross weight 1,669kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
