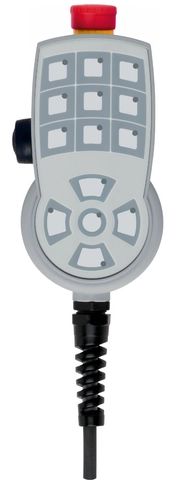

Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, LEDs
- Membrane keypad can be labeled as required using slide-in strips
- Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
- LEDs white, color customer-specific using colored keypad membrane
- 1 enabling switch, 3-stage, 2 NO contacts
- Coiled cable, expandable to 3.5 m, 42-core, flying lead
Description
Notes
- For template for slide-in strips, see www.euchner.com (Service)

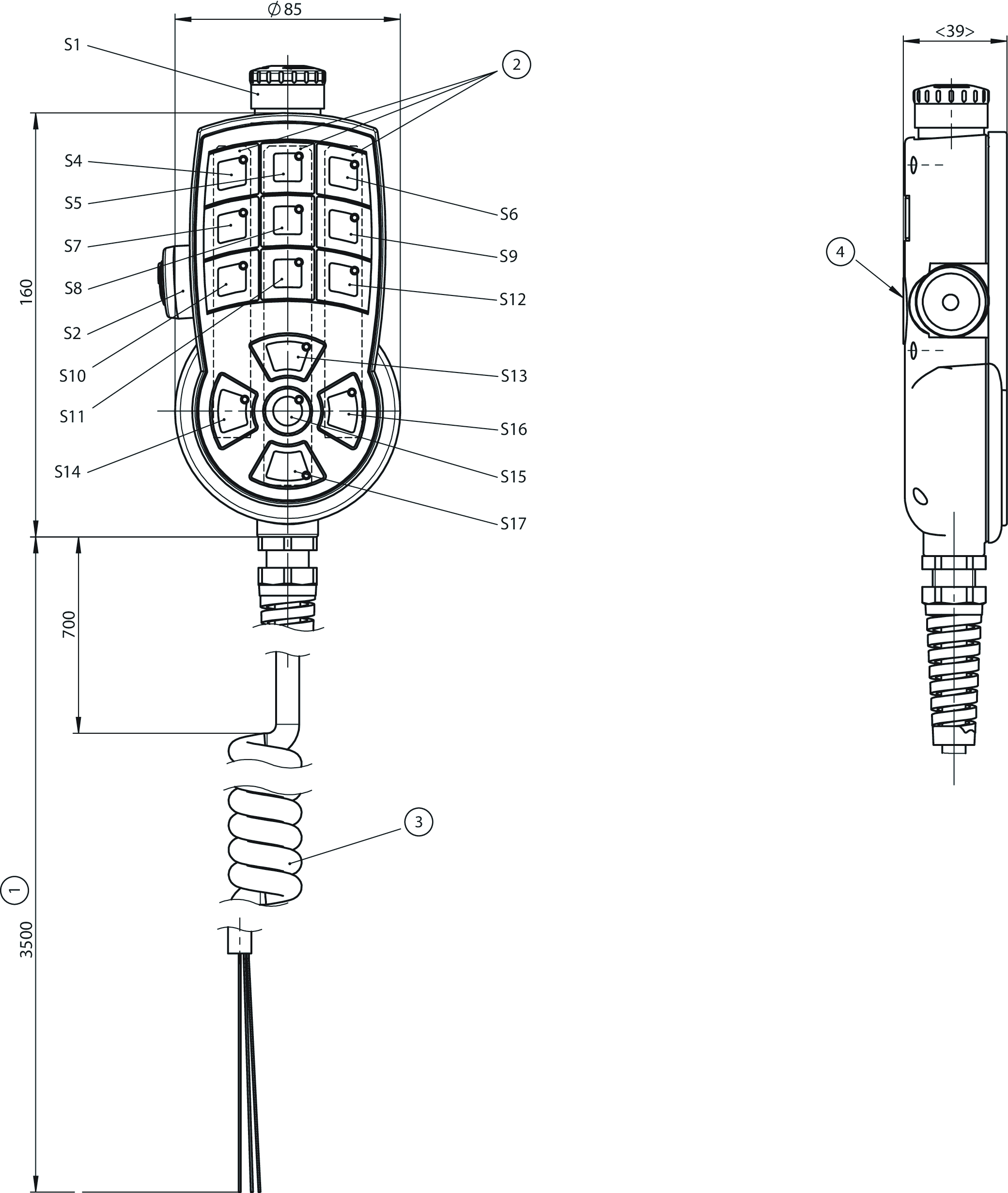

Dimensional drawings
1 | Cable length extended |
2 | blank exchangeable slide-in strips |
3 | Spiral cable, 42-core |
4 | Mounting magnet |

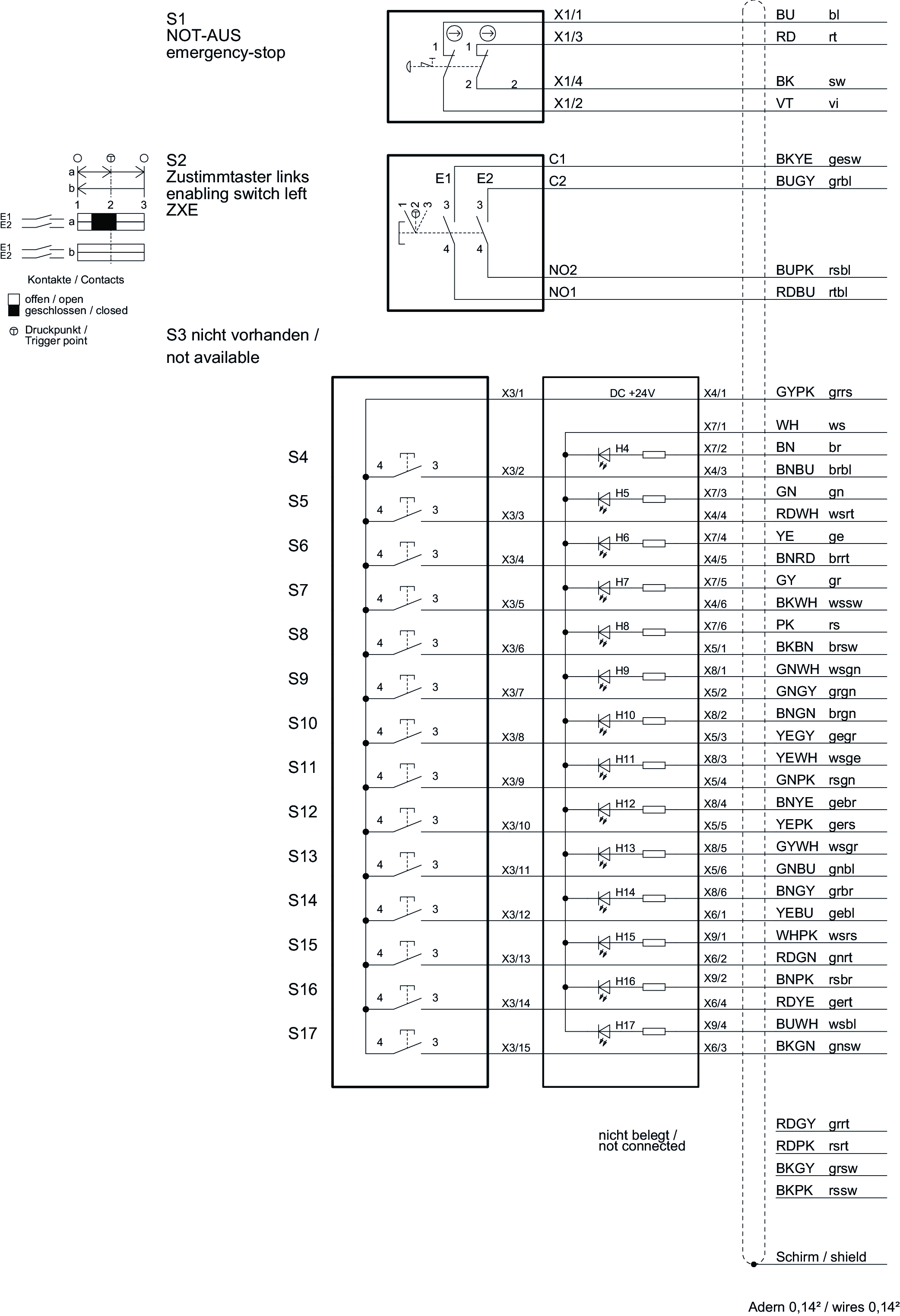

Connection examples
Technical data
Approvals
Operating and display elements
Item | Color | Extras | Version | Note slide-in label | Slide-in label | Switching element | Number | Designation1 | LED |
---|---|---|---|---|---|---|---|---|---|
Exchangeable slide-in strips | 1 | ||||||||
see data sheets | red-yellow | - | Emergency stop | 2 pos. driven contacts | 1 | ||||
see data sheets | white | - | LED | - | 14 | ||||
see data sheets | - | - | Membrane keys | 1 NO contact each | 14 | ||||
see data sheets | - | - | Enabling switch, 3-stage | 2 NO contacts | 1 |
Electrical connection values
Connecting cable | 42x0.14 |
EMC protection requirements | |
according to CE | EN 61000-6-2, EN 61000-6-4 |
LED power supply | -10% ... 24V ... +10% V DC |
Display/control element | |
Utilization category | |
DC-13 Emergency stop | 30 V DC / 1 A |
Switching capacity (VA) | |
Enabling switch | max. 0.25 VA |
Membrane keypad | max. 1 VA |
Switching voltage | |
Membrane keypad | max. AC 25 V |
Enabling switch | max. AC/DC 42 V |
Membrane keypad | max. DC 42 V |
Switching current | |
Enabling switch | max. 100 mA |
Membrane keypad | max. 100 mA |
Mechanical values and environment
Connection type | flying lead |
Cable length | |
coiled | 3.5 m (extended) |
Atmospheric humidity | |
(condensation not permissible) | max. 80 % rH |
Shock and vibration resistance | according to EN 60068-2-27/-2-6 |
Degree of protection | |
according to Nema | 205-12 (on the front) |
IP65 (on the front) | |
Ambient temperature | 0 ... +50 °C |
Material | Polycarbonate |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
Emergency stop | |
B10D | 0.1 x 10⁶ |
Miscellaneous
Color | |
Housing | Gray RAL 7040 |
The following applies to the approval according to UL | Operation only with UL Class 2 power supply or equivalent measures |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2109732
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001586
Version
Language
Size
0,2 MB
Instructions
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Doc. no.
Version
Language
Size
Operating Instructions Hand-Held Pendant Stations HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Mode d’emploi Pupitres portables HBA/HBM
Betriebsanleitung Handbediengeräte HBA/HBM
Istruzioni di impiego Dispositivo di comando manuale HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,9 MB
Manual de instrucciones Botoneras HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Betriebsanleitung Handbediengeräte HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,3 MB
Инструкция по эксплуатации Ручные устройства управления HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,4 MB
Návod k použití Ruční ovladače HBA/HBM
Doc. no.
2537481
Version
02-03/23
Language
Size
0,4 MB
Other Documents
Ordering data
Ordernumber | 105693 |
Item designation | HBA-105693 |
Gross weight | 1,083kg |
Customs tariff number | 85371098 |
ECLASS | 27-33-02-02 Mobile Panel (HMI) |
