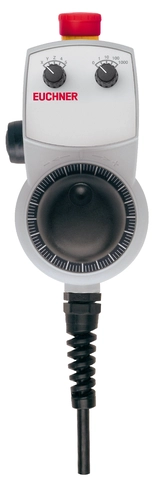

Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch
- Handwheel, 100 pulses, wear-free magnetic detent mechanism
- 1 enabling switch, 3-stage, 2 NO contacts each
- Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
- 1 selector switch with 6 positions (X, Y, Z, 4, 5, 6)
- 1 selector switch with 5 positions (0, 1, 10, 100, 1000)
Description
Dimensional drawings
Connection examples
Technical data
Approvals
Operating and display elements
Item | Color | Extras | Slide-in label | Note slide-in label | Switching element | Version | Number | Designation1 | LED |
---|---|---|---|---|---|---|---|---|---|
see data sheets | red-yellow | - | 2 pos. driven contacts | Emergency stop | 1 | ||||
see data sheets | black knob with marking | - | 5-stage, Gray coded, detent angle 22.5° | Selector switch | 1 | ||||
see data sheets | black plastic adjusting wheel | - | - | Handwheel | 1 | ||||
see data sheets | black | - | 2 NO contacts | Enabling switch, 3-stage | 1 | ||||
see data sheets | black knob with marking | - | 6-stage, Gray coded, detent angle 22.5° | Selector switch | 1 |
Electrical connection values
Connecting cable | 23x0.14 mm² (screened) |
EMC protection requirements | |
according to CE | EN 61000-6-2, EN 61000-6-4 |
Display/control element | |
Output type | |
Handwheel | RS422 |
Operating voltage DC | |
Handwheel | 5 V DC -5% ... +5% |
Utilization category | |
DC-13 Emergency stop | 30 V DC / 1 A |
Pulses per revolution | |
Handwheel | 2x100 |
Switching capacity (VA) | |
Enabling switch | max. 0.25 VA |
Selector switch | max. 0.2 VA |
Switching voltage | |
Selector switch | max. 15 V |
Enabling switch | max. AC/DC 42 V |
Switching current | |
Enabling switch | max. 100 mA |
Selector switch | max. 20 mA |
Mechanical values and environment
Connection type | Plug connector (23-pin, metal version) |
Cable length | |
coiled | 3.5 m (extended) |
Atmospheric humidity | |
(condensation not permissible) | max. 80 % rH |
Shock and vibration resistance | according to EN 60068-2-27/-2-6 |
Degree of protection | |
IP65 (on the front) | |
according to Nema | 205-12 (on the front) |
Ambient temperature | 0 ... +50 °C |
Material | Polycarbonate |
Display/control element | |
Detent positions per revolution | |
Handwheel | 100 (magnetic detent mechanism) |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
Emergency stop | |
B10D | 0.1 x 10⁶ |
Miscellaneous
Color | |
Housing | Gray RAL 7040 |
The following applies to the approval according to UL | Operation only with UL Class 2 power supply or equivalent measures |
Accessories
Connection material
Extension cable 23-core, straight
091466
23POL/5M/METALLAUSFUEHRUNG-091466
23POL/5M/METALLAUSFUEHRUNG-091466
- Extension cable
- Flange plug connector with socket contacts, 23-pin
- Plug connector with male contacts, 23-pin
- Bayonet plug lock
- PUR cable
- Cable length 5 m, straight
091467
23POL/10M/METALLAUSFUEHRUNG
23POL/10M/METALLAUSFUEHRUNG
- Extension cable
- Flange plug connector with socket contacts, 23-pin
- Plug connector with male contacts, 23-pin
- Bayonet plug lock
- PUR cable
- Cable length 10 m, straight
