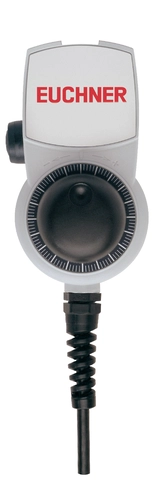

HBA-100186 (Order no. 100186)

Hand-held pendant station HBA, enabling switch

  • Handwheel, 100 pulses, wear-free magnetic detent mechanism
  • 1 enabling switch, 3-stage, 2 NO contacts each
HBA-100186 (Order no. 100186)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

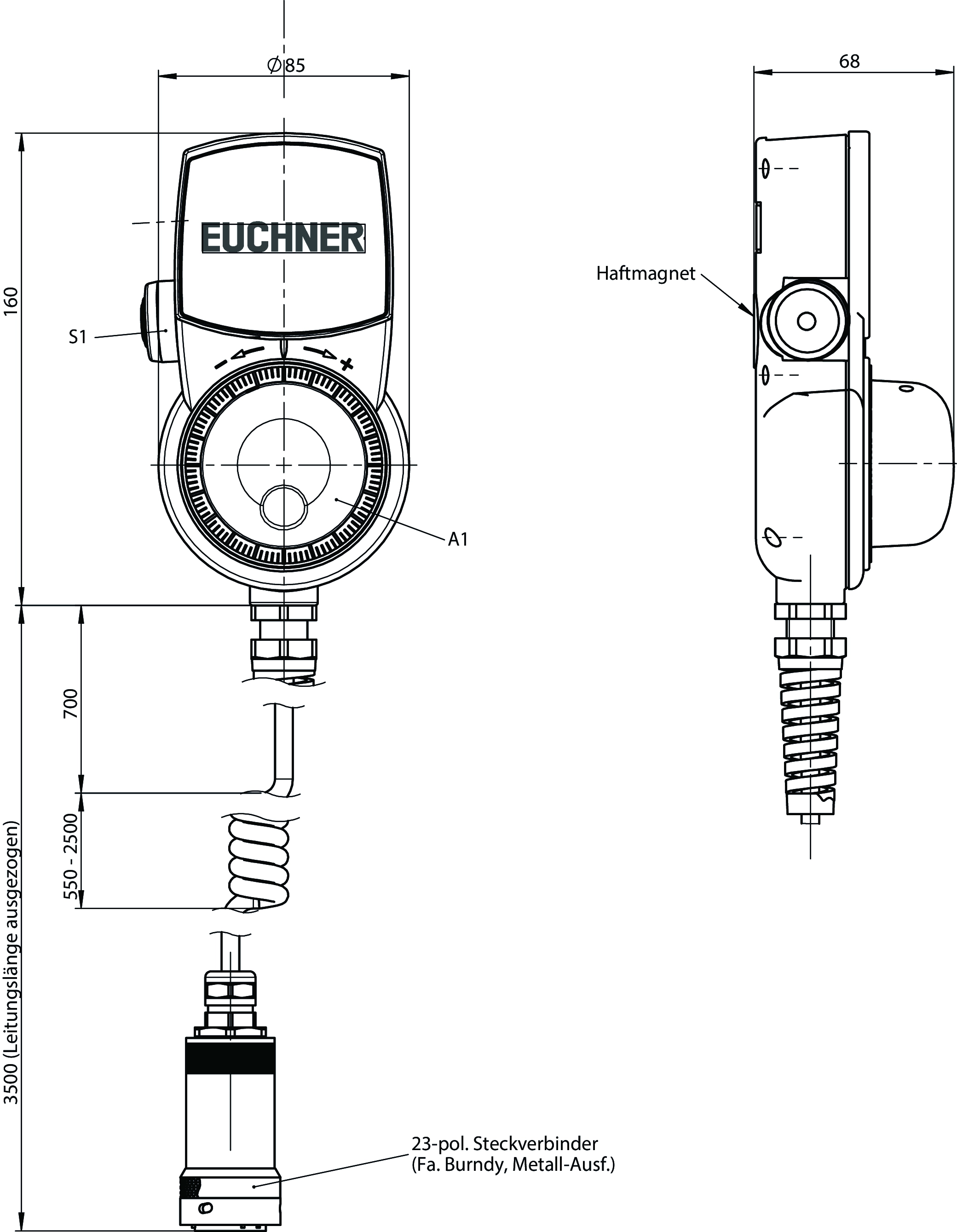

Dimensional drawings

Dimensional drawings

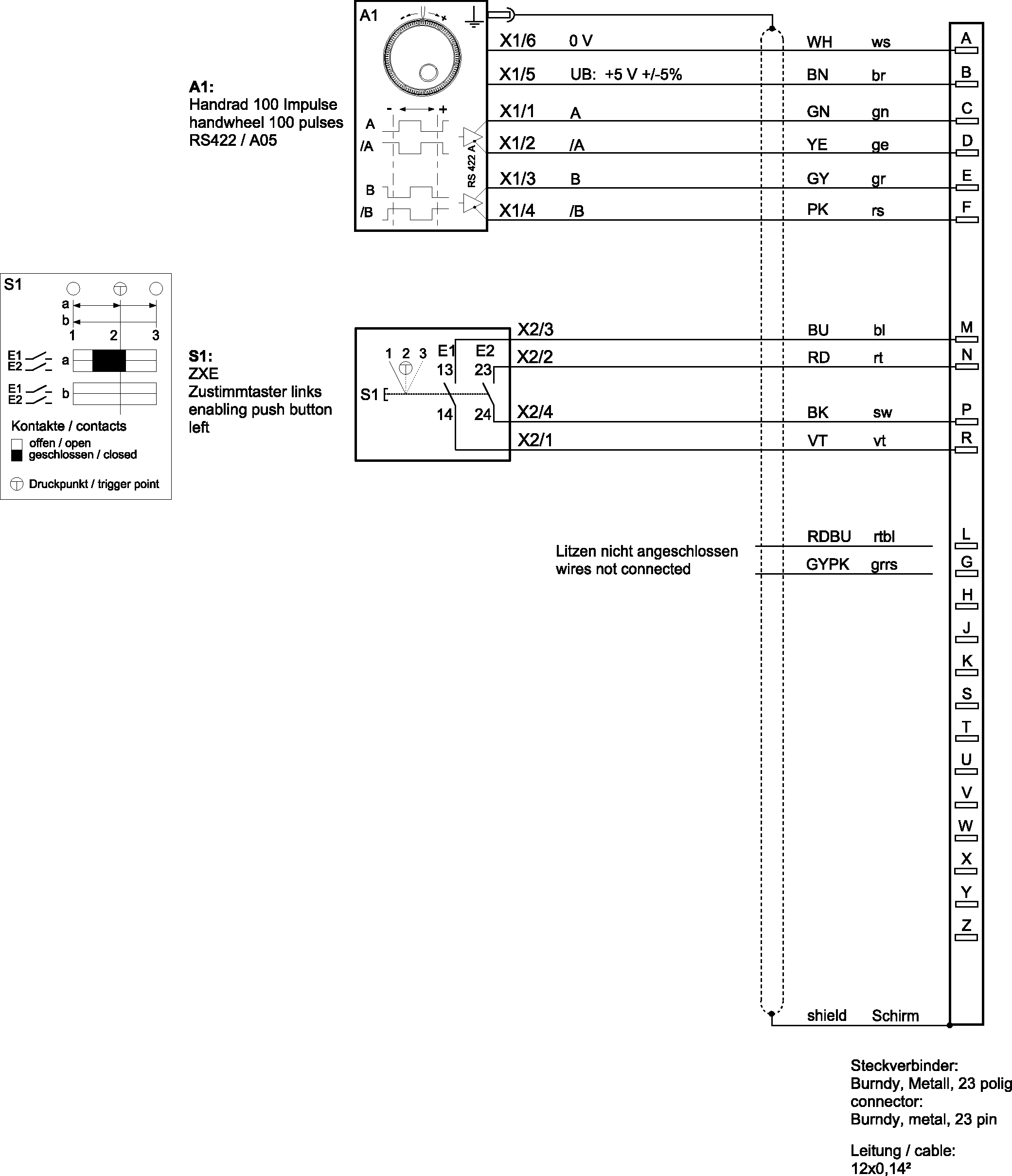

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemColorExtrasNote slide-in labelVersionSwitching elementSlide-in labelNumberDesignation1LED
see data sheetsblack plastic adjusting wheel-Handwheel-1
see data sheetsblack-Enabling switch, 3-stage2 NO contacts1

Electrical connection values

Connecting cable 23x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Display/control element
Output type
Handwheel RS422
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Pulses per revolution
Handwheel 2x100
Switching capacity (VA)
Enabling switch max. 0.25 VA
Switching voltage
Enabling switch max. AC/DC 42 V
Switching current
Enabling switch max. 100 mA

Mechanical values and environment

Connection type Plug connector (23-pin, metal version)
Cable length
coiled 3.5 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (on the front)
according to Nema 205-12 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate
Display/control element
Detent positions per revolution
Handwheel 100 (magnetic detent mechanism)

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 100186
Item designation HBA-100186
Gross weight 1,015kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
