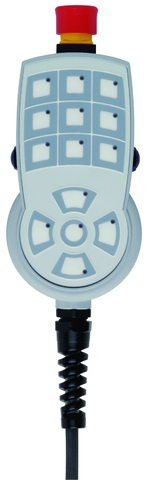

HBA-096692 (Order no. 096692)

Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, membrane keypad, LEDs

  • Membrane keypad can be labeled as required using slide-in strips
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • LEDs white, color customer-specific using colored keypad membrane
  • 2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
  • Coiled cable, expandable to 5 m, 35-pin plug connector
HBA-096692 (Order no. 096692)

Description

Notes

  • For template for slide-in strips, see www.euchner.com (Service)

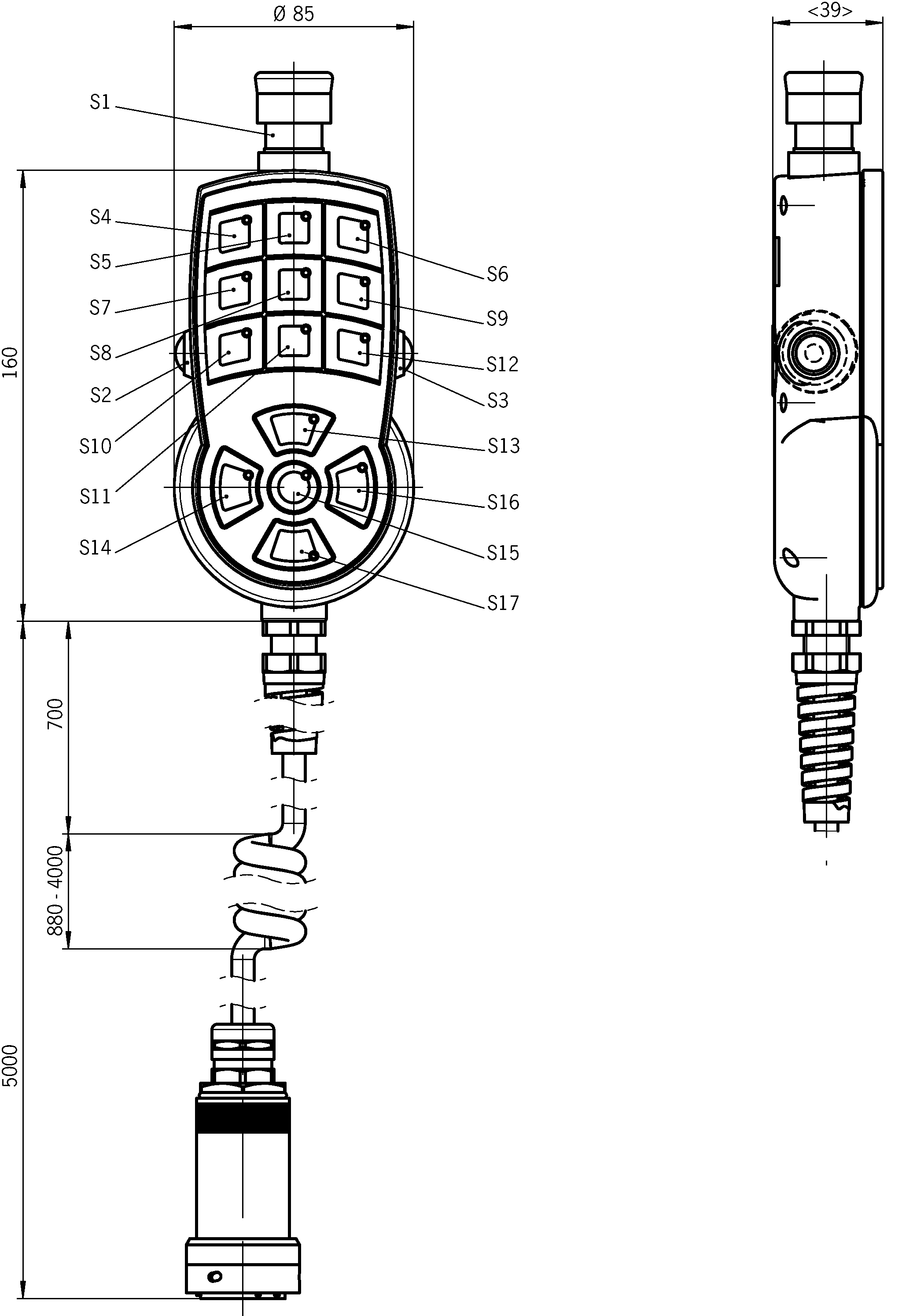

Dimension drawing
Dimension drawing

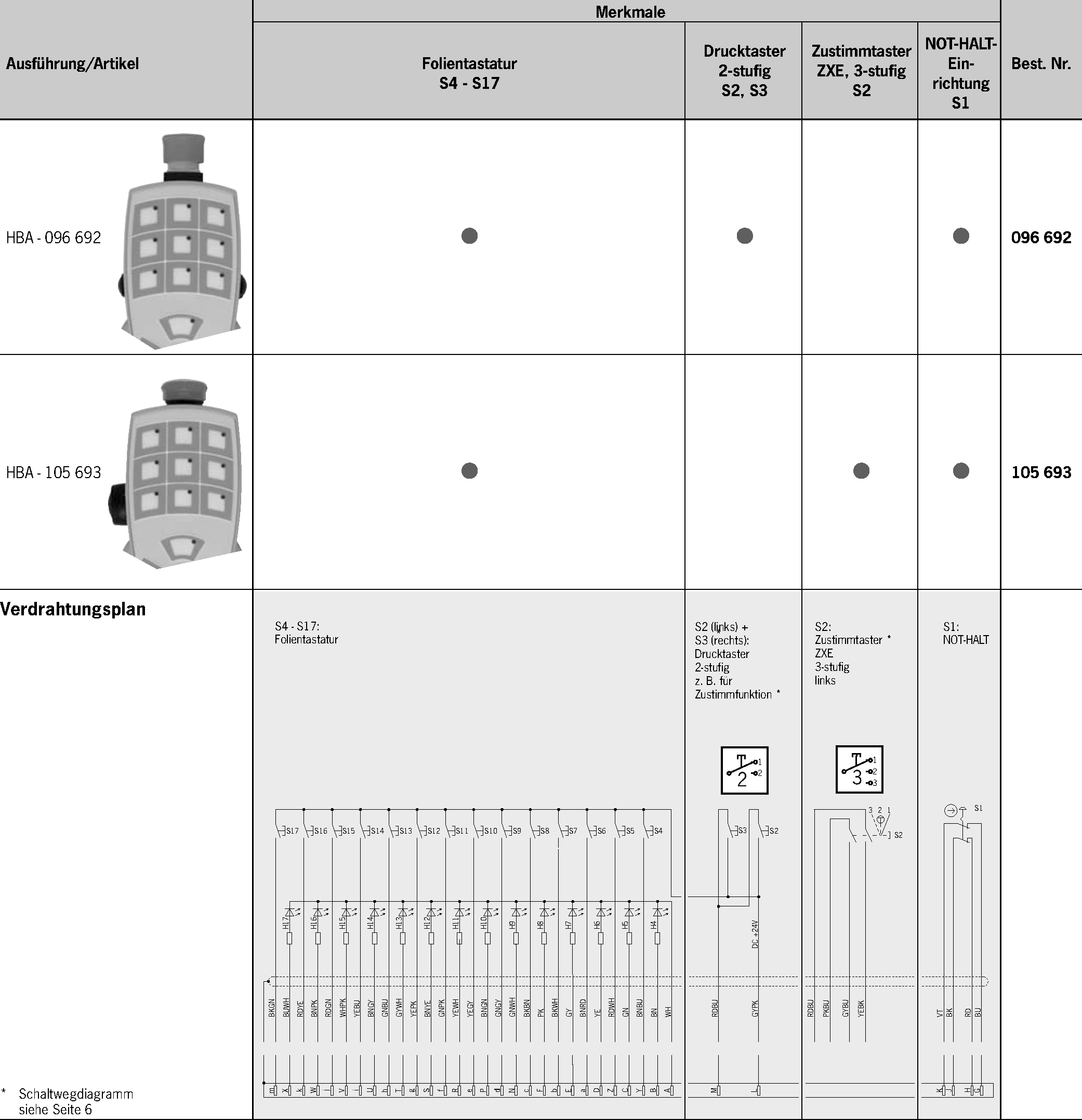

Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSlide-in labelNote slide-in labelSwitching elementVersion
1Exchangeable slide-in strips
see data sheets-white14-LED
see data sheets--21 NO contact eachPushbutton
see data sheets-red-yellow12 pos. driven contactsEmergency stop
see data sheets--141 NO contact eachMembrane keys

Electrical connection values

Connecting cable 35x0.14
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
LED power supply -10% ... 24V ... +10% V DC
Display/control element
Utilization category
DC-13 Emergency stop 24 V DC / 3 A
Switching capacity (VA)
Membrane keypad max. 1 VA
Switching voltage
Membrane keypad max. DC 42 V
Pushbuttons max. DC 50 V
Pushbuttons max. AC 32 V
Membrane keypad max. AC 25 V
Switching current
Membrane keypad max. 100 mA
Pushbuttons max. 100 mA

Mechanical values and environment

Connection type Plug connector (35-pin, metal version)
Cable length
coiled 5.00 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (on the front)
according to Nema 205-12 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 096692
Item designation HBA-096692
Gross weight 1,476kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
