HBA-091638 (Order no. 091638)

Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch

  • Handwheel, 100 pulses, mechanical detent mechanism
  • 1 enabling switch, 3-stage, 2 NO contacts each
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • 1 selector switch with 8 positions (X, Y, Z, 1, 2, 3, 4, 5)
  • 1 selector switch with 5 positions (0, 1, 10, 100, 1000)
  • 2 membrane pushbuttons, 1 NO contact each
HBA-091638 (Order no. 091638)


Dimension drawing
Dimension drawing

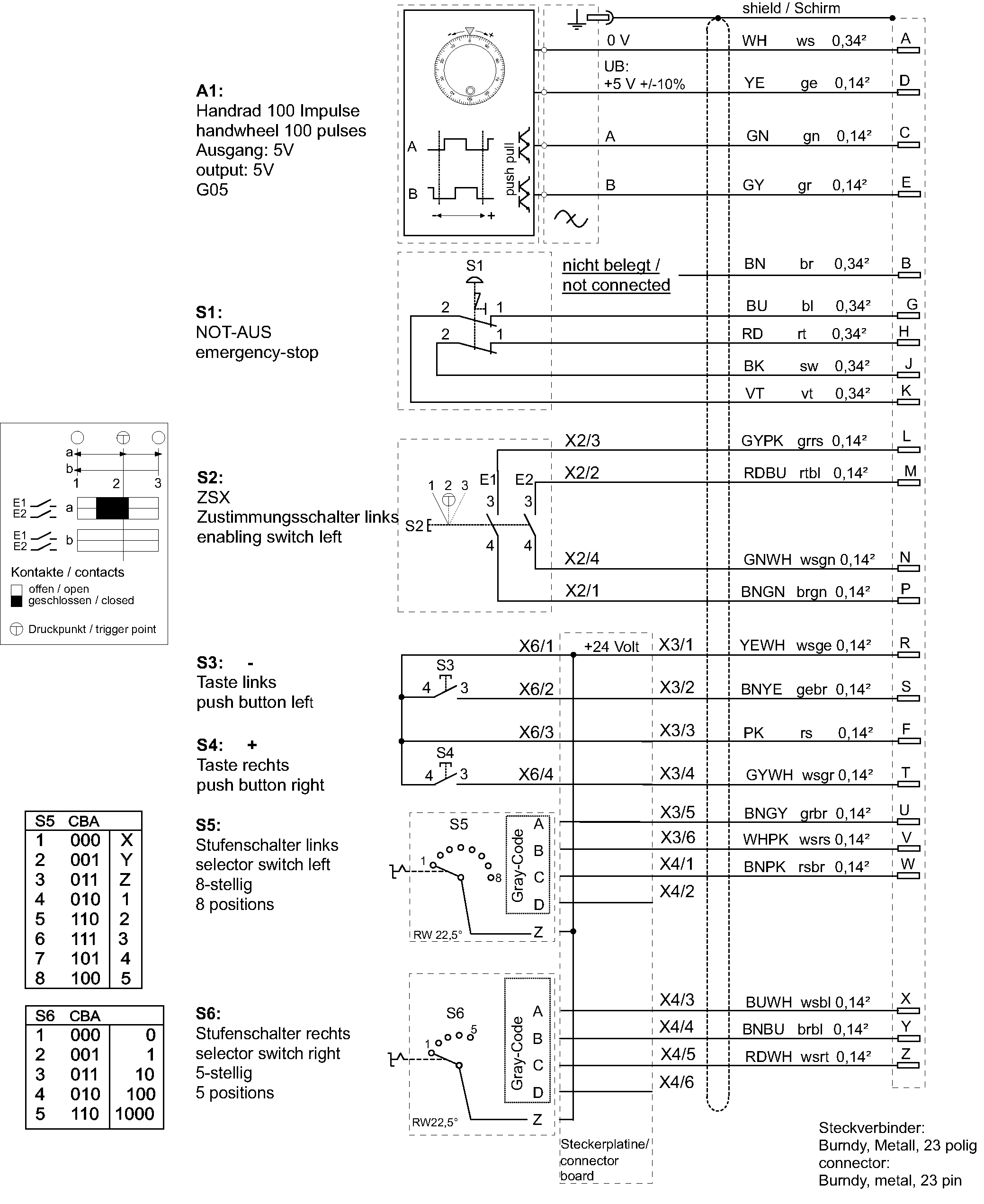

Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

Dimensional drawings

Dimensional drawings
1Cable length stretched
2Plug connector 23-pin made of metal
3Mounting magnet

Connection examples

Connection examples

Technical data


EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemExtrasColorDesignation1NumberLEDNote slide-in labelVersionSlide-in labelSwitching element
see data sheets-black knob with marking1Selector switch8-stage, Gray coded, detent angle 22.5°
see data sheets-black1Enabling switch, 3-stage2 NO contacts
see data sheets-red-yellow1Emergency stop2 pos. driven contacts
see data sheets-black plastic adjusting wheel1Handwheel-
see data sheets-black knob with marking1Selector switch5-stage, Gray coded, detent angle 22.5°
see data sheetslabeled-2Membrane key1 NO contact each

Electrical connection values

Connecting cable 6x0.34 mm² + 17x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Display/control element
Output type
Handwheel G05
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Utilization category
DC-13 Emergency stop 30 V DC / 1 A
Pulses per revolution
Handwheel 2x100
Switching capacity (VA)
Membrane keypad max. 1 VA (common connection)
Enabling switch max. 0.25 VA
Selector switch max. 0.2 VA
Switching voltage
Membrane keypad max. DC 42 V
Enabling switch max. AC/DC 42 V
Membrane keypad max. AC 25 V
Selector switch max. 15 V
Switching current
Membrane keypad max. 100 mA (common connection)
Enabling switch max. 100 mA
Selector switch max. 20 mA

Mechanical values and environment

Connection type Plug connector (23-pin, metal version)
Cable length
coiled 3.5 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
according to Nema 250-12 (on the front)
IP65 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate
Display/control element
Detent positions per revolution
Handwheel 100 (mechanical detent mechanism)

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Emergency stop
B10D 0.1 x 10⁶


Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures


Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 091638
Item designation HBA-091638
Gross weight 1,423kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
