HBA-079828 (Order no. 079828)

Hand-held pendant station HBA, pushbutton

  • Handwheel, 100 pulses, wear-free magnetic detent mechanism
  • 2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
HBA-079828 (Order no. 079828)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

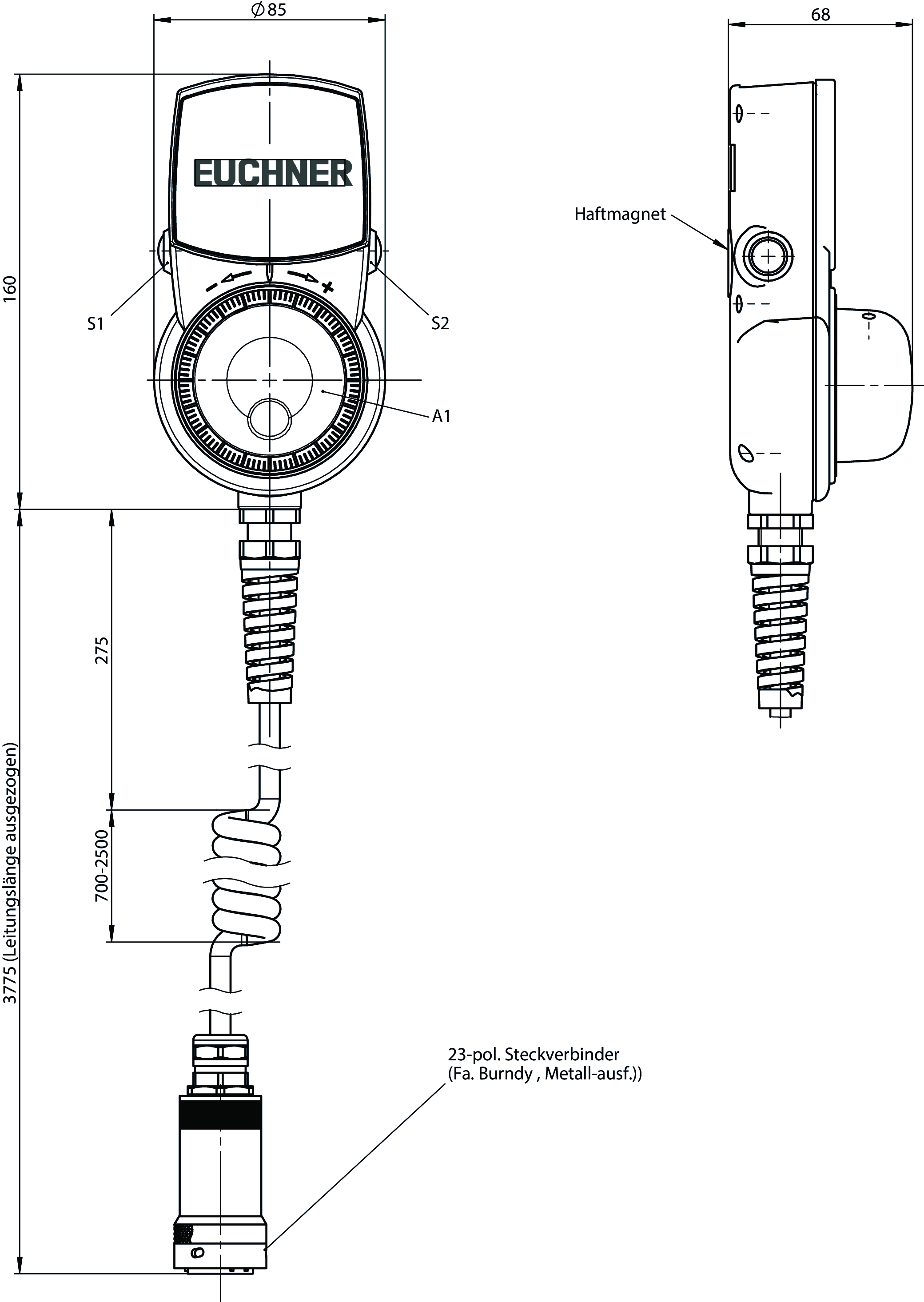

Dimensional drawings

Dimensional drawings

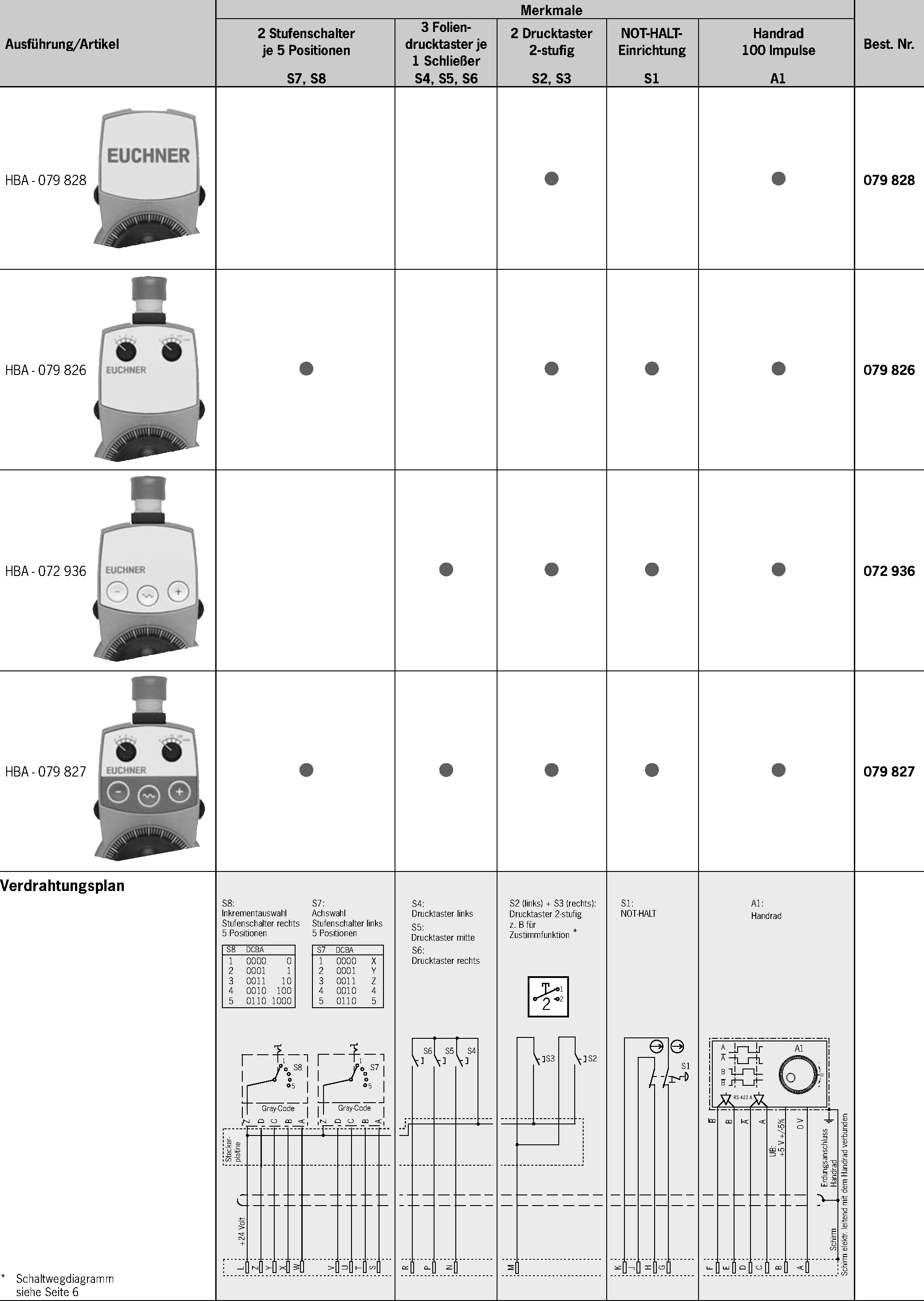

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemColorExtrasVersionSwitching elementSlide-in labelNote slide-in labelNumberDesignation1LED
see data sheetsblack-Pushbutton1 NO contact each2
see data sheetsblack plastic adjusting wheel-Handwheel-1

Electrical connection values

Connecting cable 23x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Display/control element
Output type
Handwheel RS422
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Pulses per revolution
Handwheel 2x100
Switching voltage
Pushbuttons max. DC 50 V
Pushbuttons max. AC 32 V
Switching current
Pushbuttons max. 100 mA

Mechanical values and environment

Connection type Plug connector (23-pin, metal version)
Cable length
coiled 3.775 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (when installed)
according to Nema 205-12 (when installed)
Ambient temperature 0 ... +50 °C
Material Polycarbonate
Display/control element
Detent positions per revolution
Handwheel 100 (magnetic detent mechanism)

Miscellaneous

Color
Housing Gray RAL 7040
Notices for UL approval Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,8 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 079828
Item designation HBA-079828
Gross weight 1,323kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
