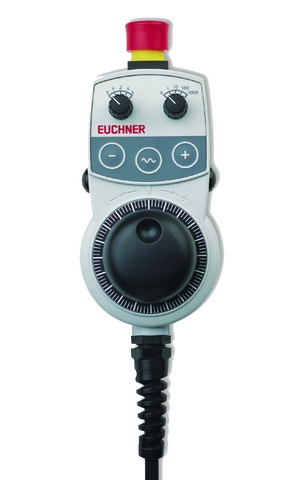

HBA-079827 (Order no. 079827)

Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, foil pushbuttons, selector switch

  • Handwheel, 100 pulses, wear-free magnetic detent mechanism
  • 2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • 2 selector switches, 5 positions each (X, Y, Z, 4, 5 and 0, 1, 10, 100, 1000)
  • 3 membrane pushbuttons, 1 NO contact each
HBA-079827 (Order no. 079827)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

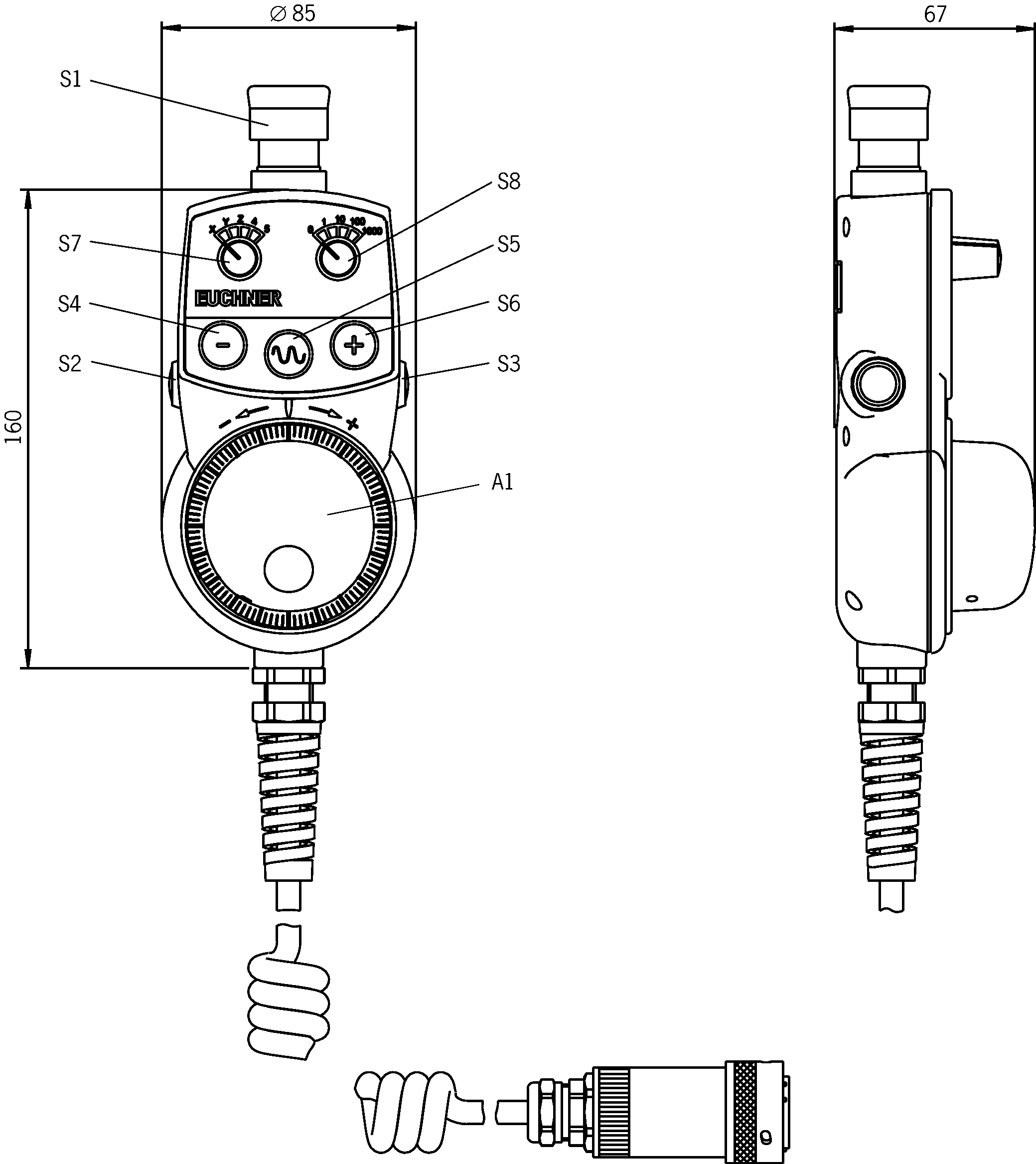

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemColorExtrasVersionNote slide-in labelSlide-in labelSwitching elementNumberDesignation1LED
see data sheets-labeledMembrane key1 NO contact each3
see data sheetsblack-Pushbuttons1 NO contact each2
see data sheetsblack knob with marking-Selector switch5-stage, Gray coded, detent angle 22.5°1
see data sheetsred-yellow-Emergency stop2 pos. driven contacts1
see data sheetsblack plastic adjusting wheel-Handwheel-1

Electrical connection values

Connecting cable 23x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Display/control element
Output type
Handwheel RS422
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Utilization category
DC-13 Emergency stop 30 V DC / 1 A
Pulses per revolution
Handwheel 2x100
Switching capacity (VA)
Selector switch max. 0.2 VA
Membrane keypad max. 1 VA (common connection)
Switching voltage
Selector switch max. 15 V
Pushbuttons max. DC 50 V
Pushbuttons max. AC 32 V
Membrane keypad max. AC 25 V
Membrane keypad max. DC 42 V
Switching current
Membrane keypad max. 100 mA (common connection)
Selector switch max. 20 mA
Pushbuttons max. 100 mA

Mechanical values and environment

Connection type Plug connector (23-pin, metal version)
Cable length
coiled 3.775 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
according to Nema 205-12 (When installed)
IP65 (When installed)
Ambient temperature 0 ... +50 °C
Material Polycarbonate
Display/control element
Detent positions per revolution
Handwheel 100 (magnetic detent mechanism)

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 079827
Item designation HBA-079827
Gross weight 1,26kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
