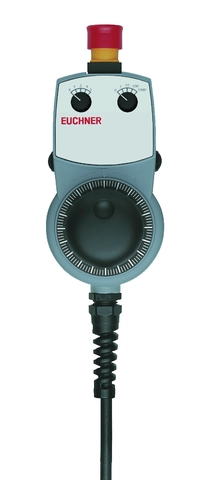

HBA-079826 (Order no. 079826)

Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, handwheel, selector switch

  • Handwheel, 100 pulses, wear-free magnetic detent mechanism
  • 2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
  • Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
  • 2 selector switches, 5 positions each (X, Y, Z, 4, 5 and 0, 1, 10, 100, 1000)
HBA-079826 (Order no. 079826)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Hand-held pendant stations and hand wheels

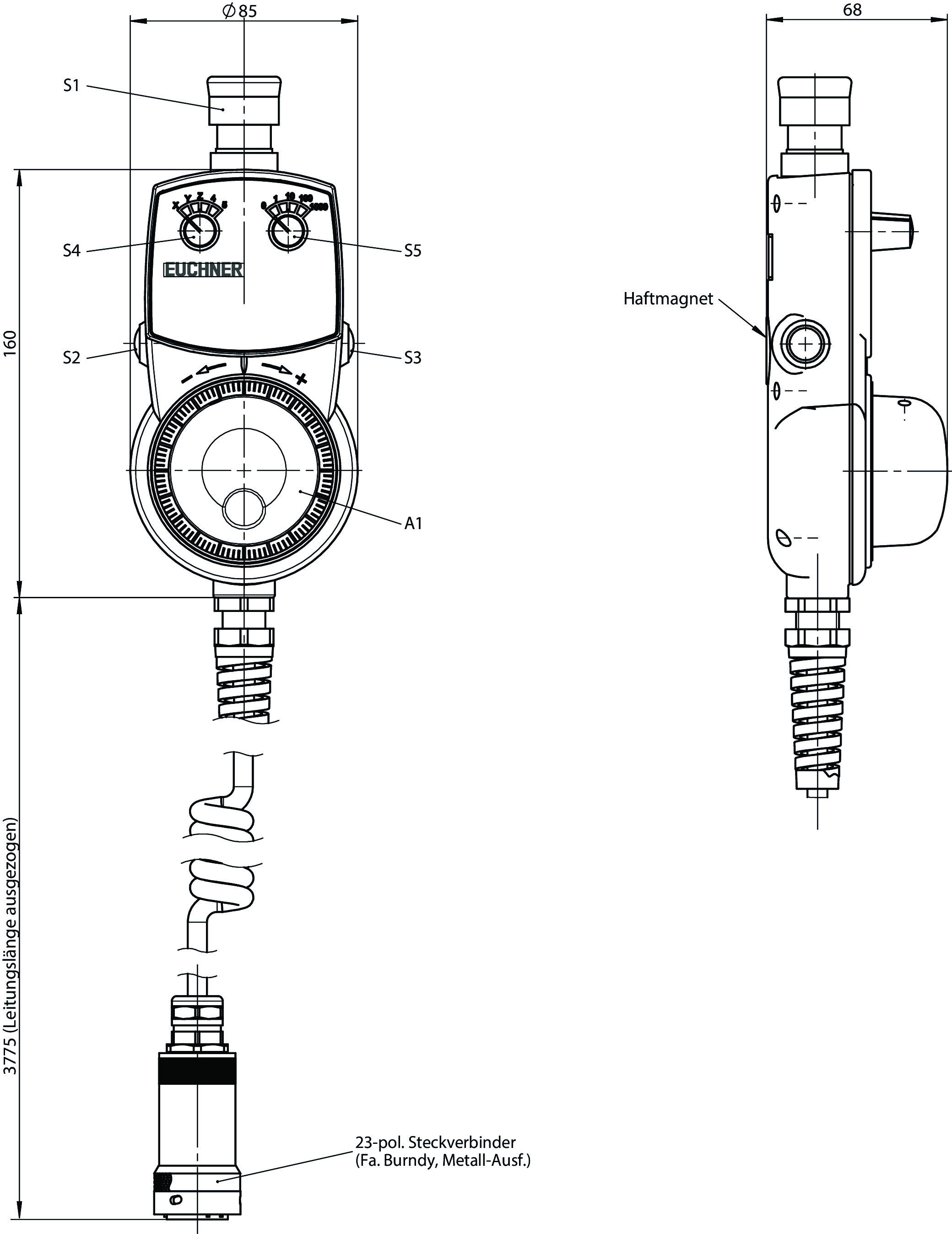

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_1/2

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSwitching elementVersionNote slide-in labelSlide-in label
see data sheets-black21 NO contact eachPushbutton
see data sheets-red-yellow12 pos. driven contactsEmergency stop
see data sheets-black knob with marking15-stage, Gray coded, detent angle 22.5°Selector switch
see data sheets-black plastic adjusting wheel1-Handwheel
see data sheets-black knob with marking15-stage, Gray coded, detent angle 22.5°Selector switch

Electrical connection values

Connecting cable 23x0.14 mm² (screened)
EMC protection requirements
according to CE EN 61000-6-2, EN 61000-6-4
Handwheel
Output type
Handwheel RS422
Operating voltage DC
Handwheel 5 V DC -5% ... +5%
Utilization category
DC-13 Emergency stop 24 V DC / 3 A
Pulses per revolution
Handwheel 2x100
Switching capacity (VA)
Selector switch max. 0.2 VA
Switching voltage
Pushbuttons max. AC 32 V
Selector switch max. 15 V
Pushbuttons max. DC 50 V
Switching current
Selector switch 0.1 ... 20 mA
Pushbuttons max. 100 mA

Mechanical values and environment

Connection type Plug connector (23-pin, metal version)
Cable length
coiled 3.775 m (extended)
Atmospheric humidity
(condensation not permissible) max. 80 % rH
Shock and vibration resistance according to EN 60068-2-27/-2-6
Degree of protection
IP65 (on the front)
according to Nema 205-12 (on the front)
Ambient temperature 0 ... +50 °C
Material Polycarbonate
Handwheel
Detent positions per revolution
Handwheel 100 (magnetic detent mechanism)

Miscellaneous

Color
Housing Gray RAL 7040
The following applies to the approval according to UL Operation only with UL Class 2 power supply or equivalent measures

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 079826
Item designation HBA-079826
Gross weight 1,289kg
Customs tariff number 85371098
ECLASS 27-33-02-02 Mobile Panel (HMI)
