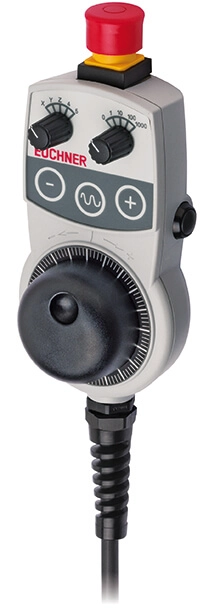

Hand-held pendant station HBA

For even easier and simpler machine operation by the user, EUCHNER applied ergonomic principles to the design of the hand-held pendant stations HBA to make them fit ideally in the hand during operation. The diverse product range covers everything from standard housings to hand-held pendant stations with a wealth of expansion options at the customer’s request.
The housing HBA currently offers the greatest variety and was awarded a design prize in 2001. It features degree of protection IP65 according to EN 60529.

You will find further information in our product catalog.

Product finder

Quick search

Connection

Cable length

Stop device

Pushbutton

Handwheel

Connecting cable

Selector switch

Enabling function

Products (17)

No results found

072936
HBA-072936
Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, membrane pushbuttons

Handwheel, 100 pulses, wear-free magnetic detent mechanism
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
3 membrane pushbuttons, 1 NO contact each

079826
HBA-079826
Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, handwheel, selector switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
2 selector switches, 5 positions each (X, Y, Z, 4, 5 and 0, 1, 10, 100, 1000)

079827
HBA-079827
Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, foil pushbuttons, selector switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
2 selector switches, 5 positions each (X, Y, Z, 4, 5 and 0, 1, 10, 100, 1000)
3 membrane pushbuttons, 1 NO contact each

079828
HBA-079828
Hand-held pendant station HBA, pushbutton

Handwheel, 100 pulses, wear-free magnetic detent mechanism
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function

091463
HBA-091463
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch

Handwheel, 25 pulses, mechanical detent mechanism
1 enabling switch, 3-stage, 2 NO contacts each
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
1 selector switch with 8 positions (X, Y, Z, 1, 2, 3, 4, 5)
1 selector switch with 5 positions (0, 1, 10, 100, 1000)
2 membrane pushbuttons, 1 NO contact each

091638
HBA-091638
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch

Handwheel, 100 pulses, mechanical detent mechanism
1 enabling switch, 3-stage, 2 NO contacts each
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
1 selector switch with 8 positions (X, Y, Z, 1, 2, 3, 4, 5)
1 selector switch with 5 positions (0, 1, 10, 100, 1000)
2 membrane pushbuttons, 1 NO contact each

096692
HBA-096692
Hand-held pendant station HBA, EMERGENCY STOP device, pushbuttons, membrane keypad, LEDs

Membrane keypad can be labeled as required using slide-in strips
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
LEDs white, color customer-specific using colored keypad membrane
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Coiled cable, expandable to 5 m, 35-pin plug connector

100186
HBA-100186
Hand-held pendant station HBA, enabling switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
1 enabling switch, 3-stage, 2 NO contacts each

100194
HBA-100194
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
1 enabling switch, 3-stage, 2 NO contacts each
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
1 selector switch with 6 positions (X, Y, Z, 4, 5, 6)
1 selector switch with 5 positions (0, 1, 10, 100, 1000)
3 membrane pushbuttons, 1 NO contact each

100212
HBA-100212
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel, selector switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
1 enabling switch, 3-stage, 2 NO contacts each
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
1 selector switch with 6 positions (X, Y, Z, 4, 5, 6)
1 selector switch with 5 positions (0, 1, 10, 100, 1000)

100213
HBA-100213
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, membrane pushbuttons, handwheel

Handwheel, 100 pulses, wear-free magnetic detent mechanism
1 enabling switch, 3-stage, 2 NO contacts
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
3 membrane pushbuttons, 1 NO contact each

103037
HBA-103037
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, pushbuttons, membrane pushbuttons, handwheel, selector switch

Handwheel, 100 pulses, wear-free magnetic detent mechanism
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
1 selector switch, 6 positions (0, Z, X, Y, 4, 5)
6 membrane pushbuttons, 1 NO contact each
1 enabling switch, 3-stage, 2 NO contacts

105693
HBA-105693
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, LEDs

Membrane keypad can be labeled as required using slide-in strips
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
LEDs white, color customer-specific using colored keypad membrane
1 enabling switch, 3-stage, 2 NO contacts
Coiled cable, expandable to 3.5 m, 42-core, flying lead

123208
HBA-123208
Hand-held pendant station HBA, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, LEDs

Membrane keypad can be labeled as required using slide-in strips
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
LEDs white, color customer-specific using colored keypad membrane
1 enabling switch, 3-stage, 2 NO contacts
Coiled cable, expandable to 6.5 m, 42-core, flying lead

072949
HBAS-072949
Hand-held pendant station HBAS, EMERGENCY STOP device, pushbuttons, membrane keypad, programmable pulse generator, LC display

Programmable pulse generator
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
Membrane keypad with 20 keys and 2 LEDs
LC display with LED background lighting, switchable 4-line/8-column or 8-line/16-column
RS422 interface, 3964R protocol
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Coiled cable can be expanded to 3.5 m

094594
HBAS-094594
Hand-held pendant station HBAS, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, programmable pulse generator, LC display

Programmable pulse generator
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
Membrane keypad with 20 keys and 2 LEDs
LC display with LED background lighting, switchable 4-line/8-column or 8-line/16-column
RS422 interface, 3964R protocol
1 enabling switch, 3-stage, 2 NO contacts
Coiled cable can be expanded to 3.5 m

099105
HBAS-099105
Hand-held pendant station HBAS, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, programmable pulse generator, LC display

Programmable pulse generator
Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
Membrane keypad with 20 keys and 2 LEDs
LC display with LED background lighting, switchable 4-line/8-column or 8-line/16-column
RS422 interface, 3964R protocol
2 pushbuttons, 2-stage, 1 NO contact each, e.g. for enabling function
Straight connecting cable, length 10 m
