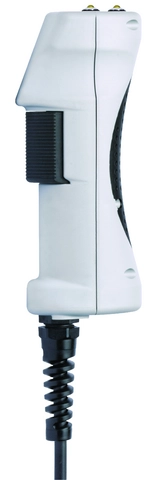

ZSM2300-111871 (Order no. 111871)

ZSM, LED

  • 3-stage function
  • LED indicator
  • Coiled connecting cable, 5 m
ZSM2300-111871 (Order no. 111871)

Description

3-stage function

Enabling function is active only in the second stage (center position, actuating point). If the pushbutton is released or pushed further (panic function), the enabling is removed (dependent on the wiring, see function sequence).

LED indicator

The LED indicator is used for visual feedback directly at the enabling switch.

Cable

The high-quality connecting cables are available in a coiled version.

Dimension drawing
Dimension drawing
Switching element
Switching element
Function sequence
Function sequence
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00972/20c_UL_us_E206093_4/1

Operating and display elements

ItemExtrasColorDesignation1NumberLEDSlide-in labelVersionNote slide-in labelSwitching element
Yellow1LED
Green1LED

Electrical connection values

Connecting cable 12x0.14 mm² (screened)
rated conditional short-circuit current 100 A
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 0.5 kV
Utilization category
DC-13 30 V 0.1 A (For enabling switch, caution: outputs must be protected with a free-wheeling diode in case of inductive loads)
DC-13 24 V 0.01 A (For additional indicators)
Short circuit protection according to IEC 60269-1 2A gG (In case of operating voltages other than 24 V, the short circuit protection must be dimensioned accordingly and checked.)
Switching characteristics 3-stage enabling switch
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Connection type flying lead
Number of changeover contacts 3 (Connection as per block diagram)
Cable length
coiled, short straight piece of cable on the enabling switch 5 m
Mechanical life 1 x 10⁶
Switching principle Snap-action contact element
Degree of protection IP54
Ambient temperature -5 ... +60 °C
Material PA, CR, TPE (Low PAH)

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Enabling switch
B10D 0.1 x 10⁶

Miscellaneous

in compliance with 60947-5-8

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 111871
Item designation ZSM2300-111871
Gross weight 0,849kg
Customs tariff number 85365019000
ECLASS 27-37-12-38 Agreement switch
