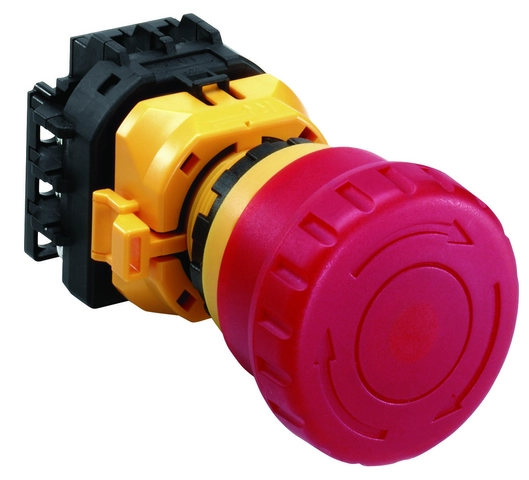

ES-XW1E-BV412MFR (Order no. 105013)

Emergency stop ES-XW built-in devices 22 mm

  • Button head red 40 mm ø
  • Contact block monitoring
  • Reset by pulling or turning
ES-XW1E-BV412MFR (Order no. 105013)

Description

    Switching element

    • 2 NC + 1 NO

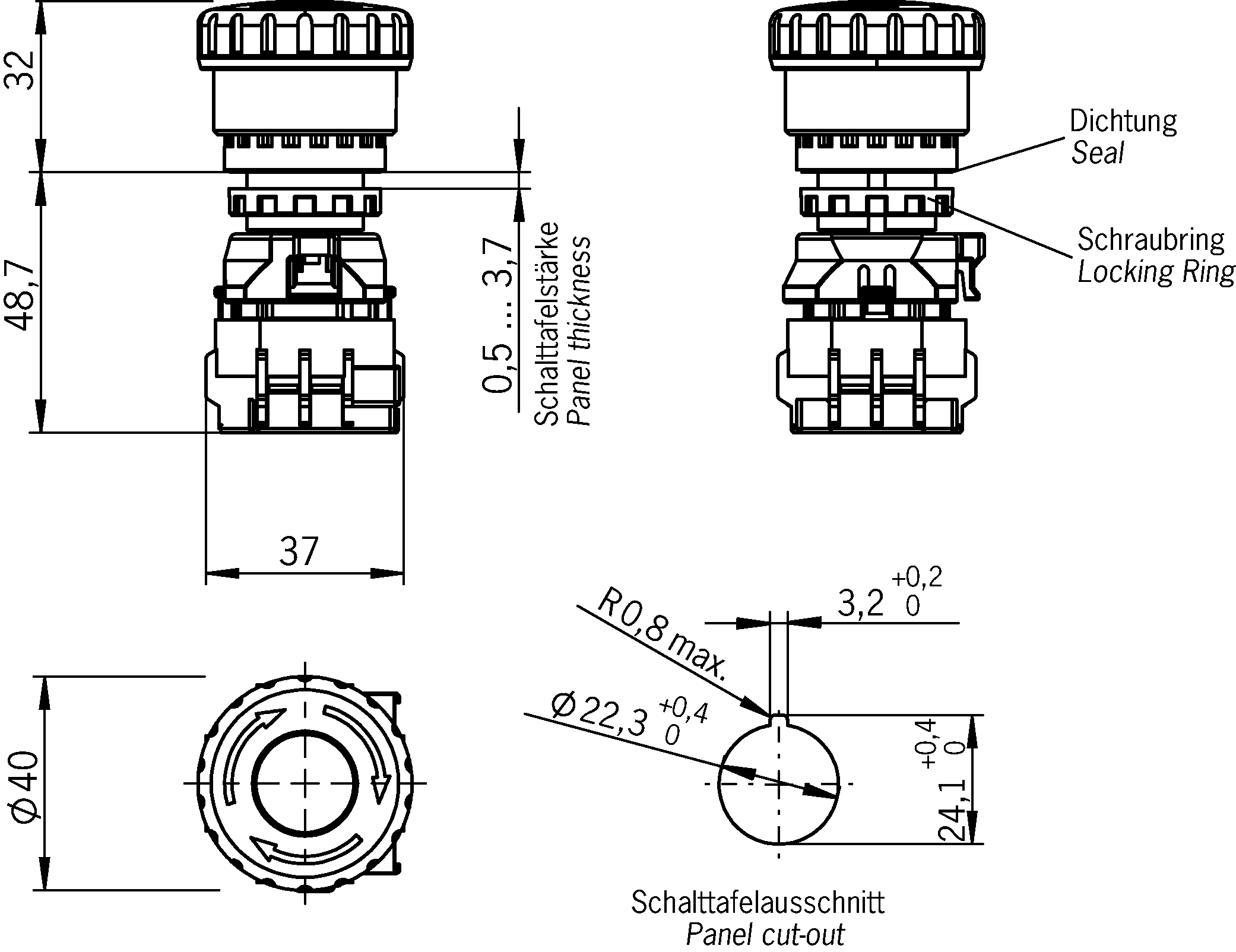

    Dimension drawing
    Dimension drawing

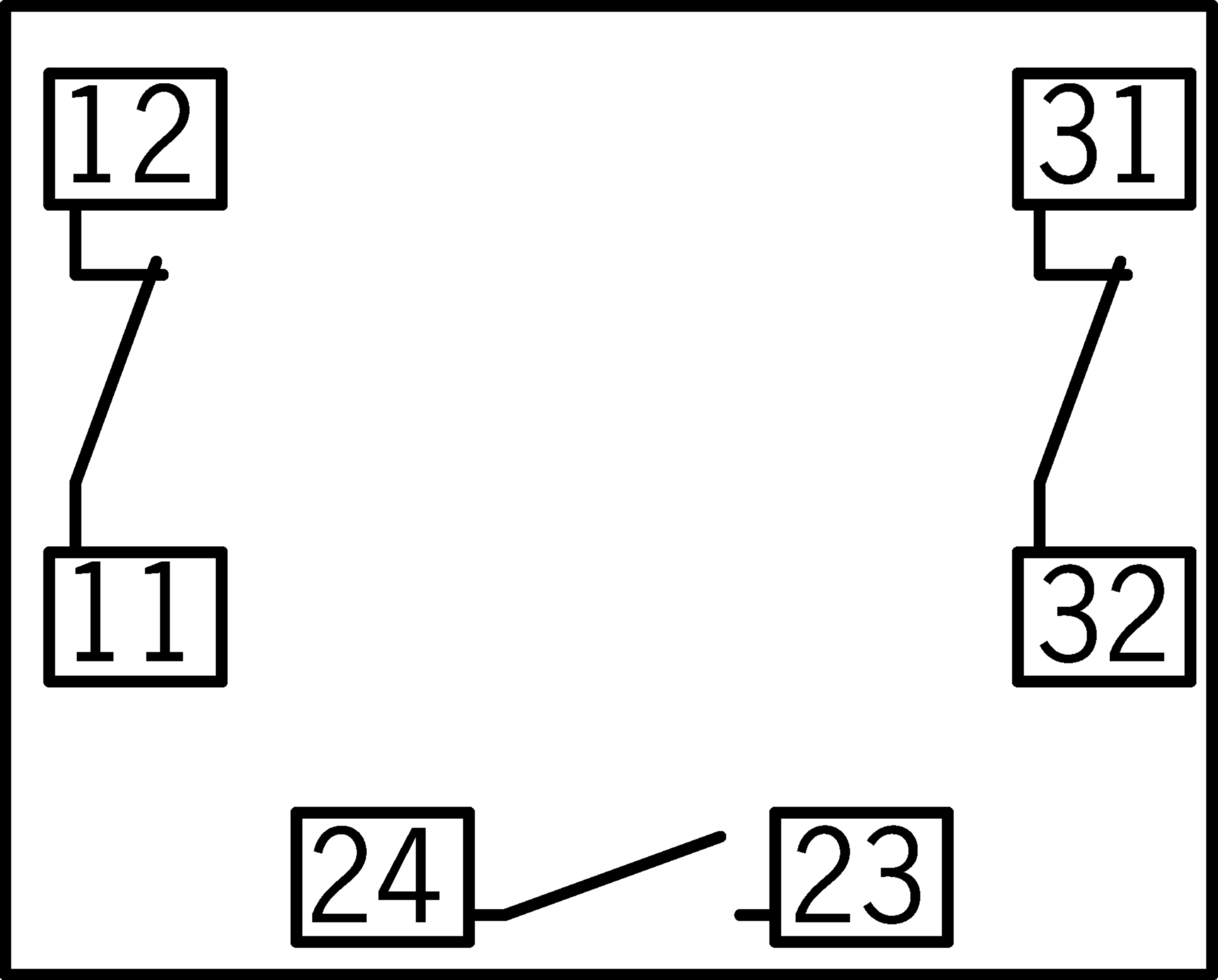

    Switching functions
    Switching functions

    Dimension drawing

    Dimension drawing

    Switching functions

    Switching functions

    Technical data

    Approvals

    Zulassung EACZulassung TÜV Süd, BMPB mit ZG: Production monitored, Type testedZulassung UL_us LISTED

    Mechanical values and environment

    Material
    Button Fiber glass reinforced thermoplastic
    Housing Polycarbonate
    Ambient temperature -25 ... 60 °C
    Degree of protection IP20
    Mechanical life 0,25 x 106
    Contact material Silver alloy, gold flashed
    Mounting method IEC 947-5-1 D22
    Number of positively driven contacts 2
    Number of NO contacts 1
    Connection Screw terminal

    Electrical connection ratings

    Thermal rated current Ith 1 A
    Utilization category acc. to EN 60947-5-1
    AC-15 1.5 A 250 V
    DC-13 1A 30V
    AC-14 0.3 A 250 V
    Rated insulation voltage Ui 250 V
    Switching current
    Min. at 24V 10 mA

    Other

    Additional feature
    Reset by pulling or turning
    Contact block monitoring
    Button head Ø 40 mm
    Color
    Actuating button Red
    Bottom part Yellow

    Reliability values according to EN ISO 13849-1

    B10D 0,1 x 106
