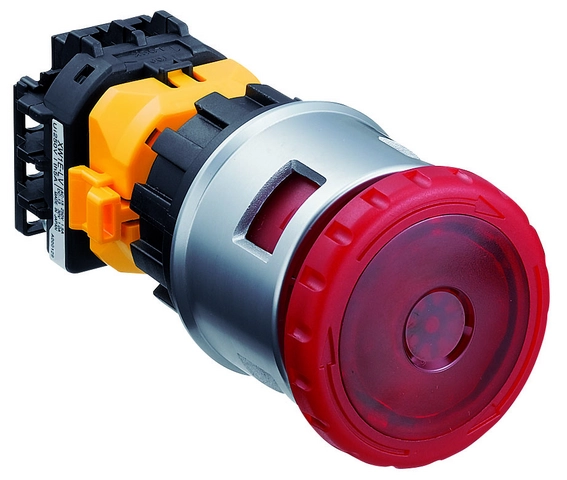

ES-XN4E-LL413Q4MFR (Order no. 124712)

Emergency stop ES-XN built-in devices 30mm

  • Button head red 44 mm ø
  • Contact block monitoring
  • Can be locked using padlock
  • Reset by turning
  • With lighting
ES-XN4E-LL413Q4MFR (Order no. 124712)

Description

    Switching element

    • 3 NC + 1 NO
    Dimension drawing
    Dimension drawing
    Wiring diagram
    Wiring diagram
    Switching functions
    Switching functions

    Dimension drawing

    Dimension drawing
    1Front panel thickness
    2Opening for padlock
    3Seal
    4Screw ring
    5Panel cut-out

    Wiring diagram

    Wiring diagram

    Switching functions

    Switching functions

    Technical data

    Approvals

    Zulassung EACZulassung TÜV Süd, BMPB mit ZG: Production monitored, Type testedZulassung UL_us LISTED

    Mechanical values and environment

    Material
    Housing Polycarbonate
    Button Fiber glass reinforced thermoplastic
    Ambient temperature -25 ... 55 °C
    Degree of protection IP20
    Mechanical life 0,25 x 106
    Contact material Silver alloy, gold flashed
    Mounting method IEC 947-5-1 D30
    Number of positively driven contacts 3
    Number of NO contacts 1
    Connection Screw terminal

    Electrical connection ratings

    Operating current 15 mA
    Operating voltage
    AC/DC 24 V -10% ... +10% V
    Thermal rated current Ith 1 A
    Utilization category acc. to EN 60947-5-1
    AC-15 1.5 A 250 V
    DC-13 1A 30V
    AC-14 0.3 A 250 V
    Rated insulation voltage Ui 250 V
    Switching current
    Min. at 24V 10 mA

    Other

    Additional feature
    Button head Ø 44 mm
    Reset by turning
    Can be locked using padlock
    Contact block monitoring
    Color
    Actuating button Red transparent
    Bottom part Yellow
    Lighting Yes

    Reliability values according to EN ISO 13849-1

    B10D 0,1 x 106

    Technical support

    Technical support
    Do you have technical questions about our products, their possible use or applications? Our experts will be happy to help.

    EUCHNER USA Inc.
    +1 315 701-0315
    info(at)euchner-usa.com
