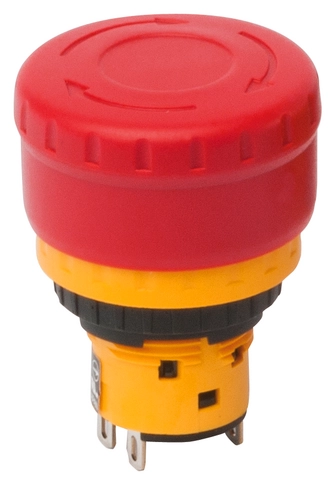

ES-XA1E-BV3U02R (Order no. 106435)

Emergency stop ES-XA, built-in devices, 16 mm

  • Reset by pulling or turning
  • Bottom of housing yellow
  • Button head, red, ø 29 mm
ES-XA1E-BV3U02R (Order no. 106435)

Description

Notes

  • The EMERGENCY STOP device engages when actuated by pressing, unlocks when turned or pulled, and is tamper proof

Switching element

  • 2NC
Wiring diagram
Wiring diagram
Dimension drawing
Dimension drawing

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings
1Control panel thickness

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20TUEV Süd München_B 040393 0043c_UL_us_E93776_17

Electrical connection values

Rated insulation voltage Ui 250 V
Utilization category
DC-13 3 A 24 V
Switching current
min. at 24 V 10 mA
thermal rated current Ith 1 A

Mechanical values and environment

Connection type Soldered connection
Number of positively driven contacts 2
Mechanical life 0.25 x 10⁶
Mounting type IEC 947-5-1 D16
Degree of protection IP65
Ambient temperature -25 ... +60 °C
Material
Housing Polycarbonate
Pushbutton Reinforced thermoplastic
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.1x10620 y


Miscellaneous

Color
Bottom part Yellow
Actuating button Red
Additional feature
Reset by pulling or turning
Button head Ø 29 mm
Short design

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 106435
Item designation ES-XA1E-BV3U02R
Gross weight 0,021kg
Customs tariff number 85365019000
ECLASS 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
