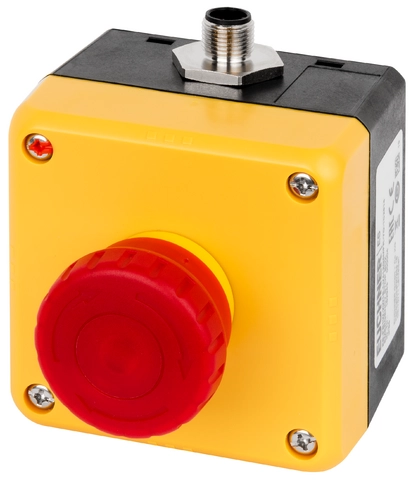

ES-FB1W-XW1E-LV412Q4MFR-YO-1C2514 (Order no. 162943)

Emergency stop ES-FB..-XW devices with housing, M12, 5-pin.

  • Button head red 40 mm ø
  • Contact block monitoring
  • Connection via plug connector M12, 5-pin, AIDA compliant
  • Reset by pulling or turning
  • Housing
  • With lighting
ES-FB1W-XW1E-LV412Q4MFR-YO-1C2514 (Order no. 162943)

Description

    Switching element

    • 2 NC + 1 NO
    Dimension drawing
    Dimension drawing
    Dimension drawing
    Dimension drawing
    Wiring diagram
    Wiring diagram
    Switching functions
    Switching functions

    Dimension drawing

    Dimension drawing

    Dimension drawing

    Dimension drawing

    Wiring diagram

    Wiring diagram

    Switching functions

    Switching functions

    Technical data

    Approvals

    Zulassung EACZulassung UL_us LISTED

    Mechanical values and environment

    Material
    Button Fiber glass reinforced thermoplastic
    Housing Polycarbonate
    Ambient temperature -25 ... 55 °C
    Degree of protection IP65
    Mechanical life 0,25 x 106
    Contact material Silver alloy, gold flashed
    Number of positively driven contacts 2
    Number of NO contacts 1
    Connection Plug connector M12 (5-pin (without PE))

    Electrical connection ratings

    Operating current 15 mA
    Operating voltage
    AC/DC 24 V -10% ... +10% V
    Thermal rated current Ith 1 A
    Utilization category acc. to EN 60947-5-1
    AC-15 1.5 A 50 V
    DC-13 1 A 30 V
    AC-14 0.3 A 50 V
    Rated insulation voltage Ui 50 V
    Switching current
    Min. at 24V 10 mA

    Other

    Additional feature
    Button head Ø 40 mm
    Reset by pulling or turning
    Contact block monitoring
    Device with housing
    Color
    Actuating button Red transparent
    Bottom part Yellow
    Lighting Yes

    Reliability values according to EN ISO 13849-1

    B10D 0,1 x 106
