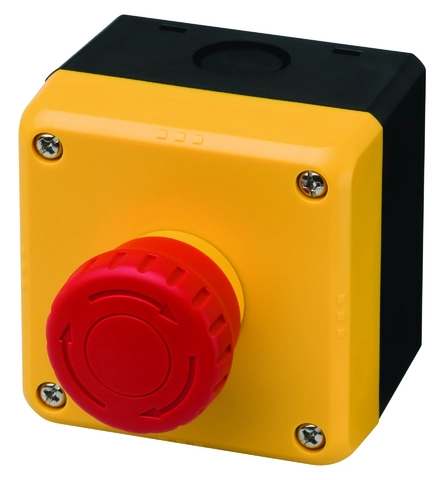

ES-FB1W-XW1E-BV412MFR-YO (Order no. 105017)

ES-FB..-XW EMERGENCY STOP Device with Housing

  • Red control knob, 40 mm diameter
  • Reset by pulling or turning
  • Contact block monitoring
  • Screw terminal
ES-FB1W-XW1E-BV412MFR-YO (Order no. 105017)

Description

Hold and Reset Function

The emergency stop devices engage when actuated by pressing; they are unlocked by turning or pulling.

Contact block monitoring

If the switching elements become dislodged, an EMERGENCY STOP command is automatically activated.

Switching element

2 positively driven contacts two NO contacts

Wiring diagram
Wiring diagram
Dimension drawing
Dimension drawing

Functional drawings

Functional drawings

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E93776_7

Electrical connection values

Rated insulation voltage Ui 250 V
Utilization category
DC-14 Normally open contact 0.3 A 250 V
DC-13 Normally closed contact 1 A 30 V
AC-15 Normally closed contact 1.5 A 250 V
Switching current
min. at 24 V 10 mA
thermal rated current Ith 1 A

Mechanical values and environment

Connection type Screw terminal
Number of NO contacts 1
Number of positively driven contacts 2
Storage temperature -25 ... 70 °C
Mechanical life 0.25 x 10⁶
Degree of protection IP65
Ambient temperature -25 ... 60 °C
Material
Housing Polycarbonate
Pushbutton Reinforced thermoplastic
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Emergency stop0.1x10620 y


Miscellaneous

Color
Actuating button red
Bottom part yellow
Additional feature
Contact block monitoring
Reset by pulling or turning
Device with housing
Button head Ø 40 mm

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,3 MB)

Single Documents

Other Documents

ePlan macros

Ordering data

Ordernumber 105017
Item designation ES-FB1W-XW1E-BV412MFR-YO
Gross weight 0,248kg
Customs tariff number 85365019000
ECLASS 11.0 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
